Service Point Locations

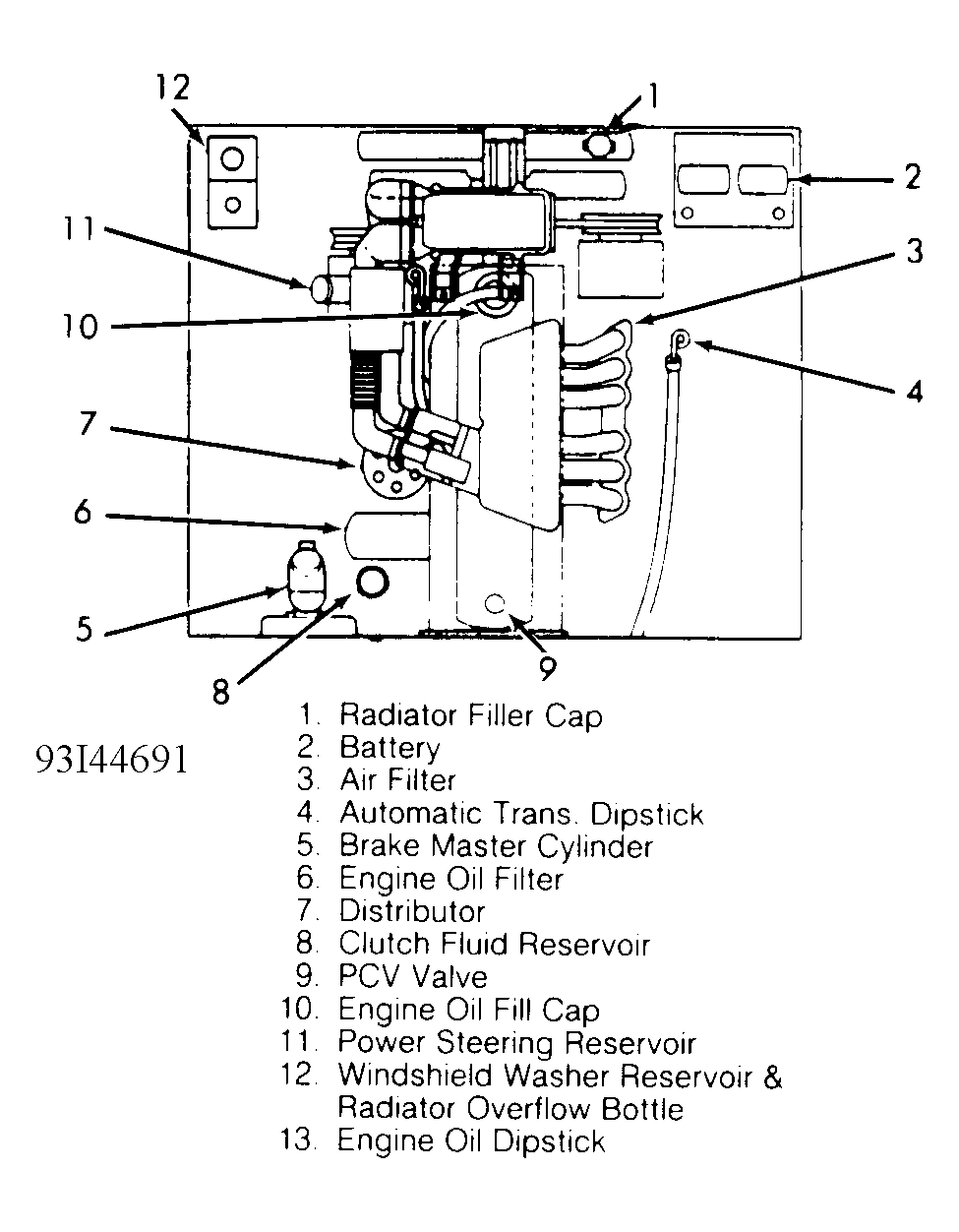

Fig 1: Service Point Locations (4.9L Engine)
G93I44691Courtesy of FORD MOTOR CO.

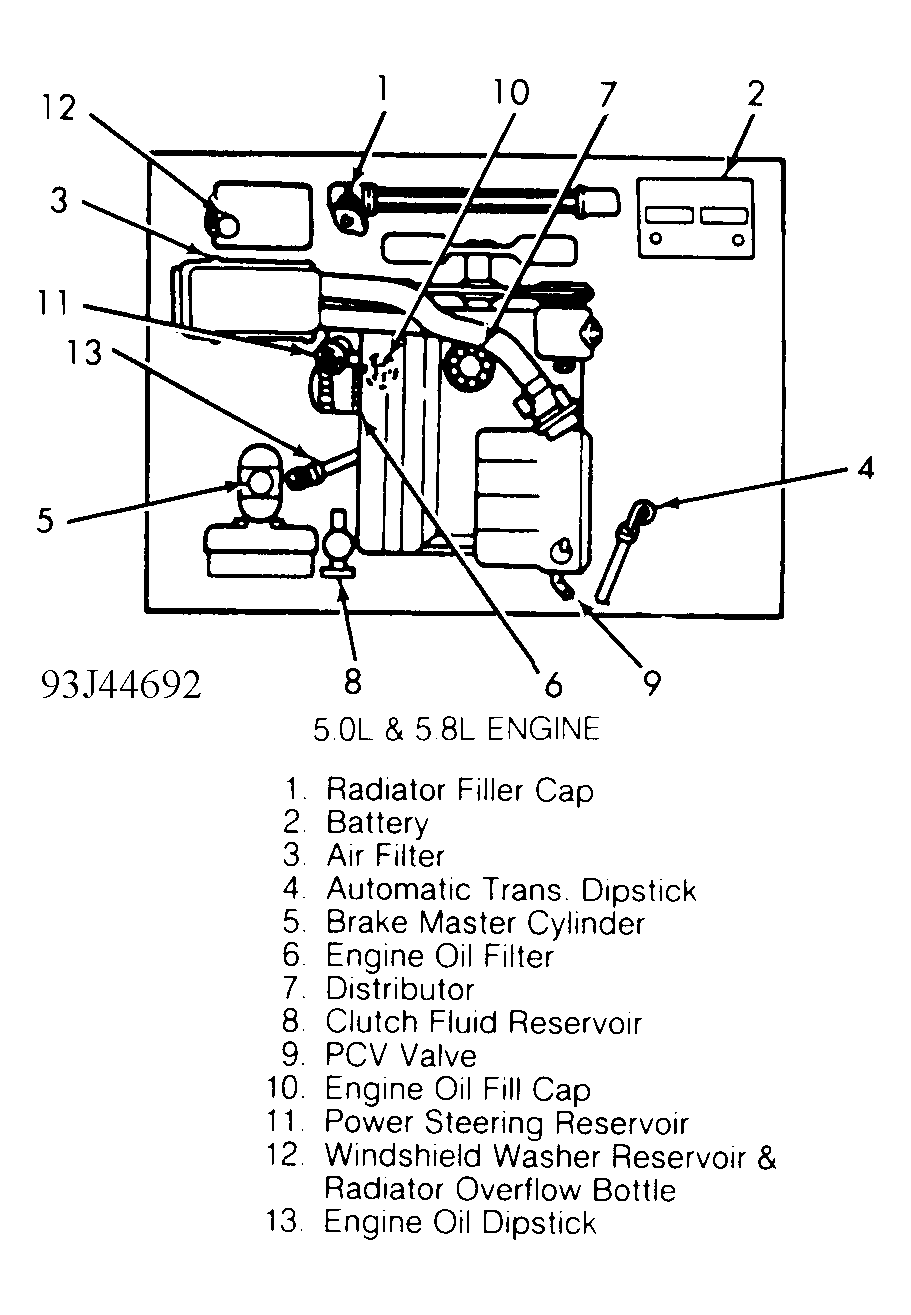

Fig 2: Service Point Locations (5.0L & 5.8L Engines)
G93J44692Courtesy of FORD MOTOR CO.
