Steering Column: Overhaul

Refer to appropriate illustration when overhauling steering columns. See Fig 1 -Fig 5 .

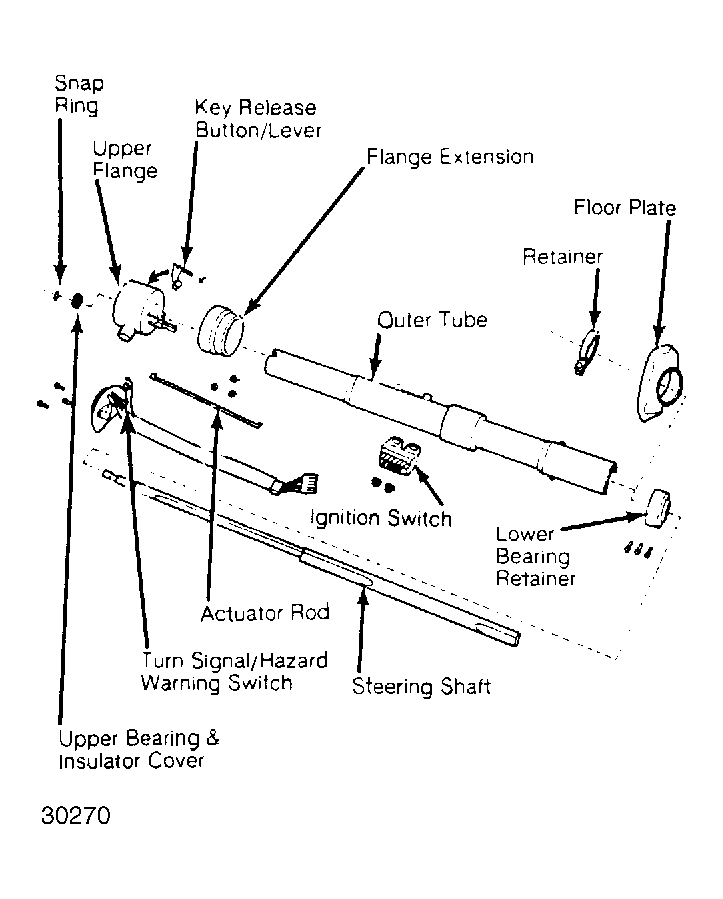

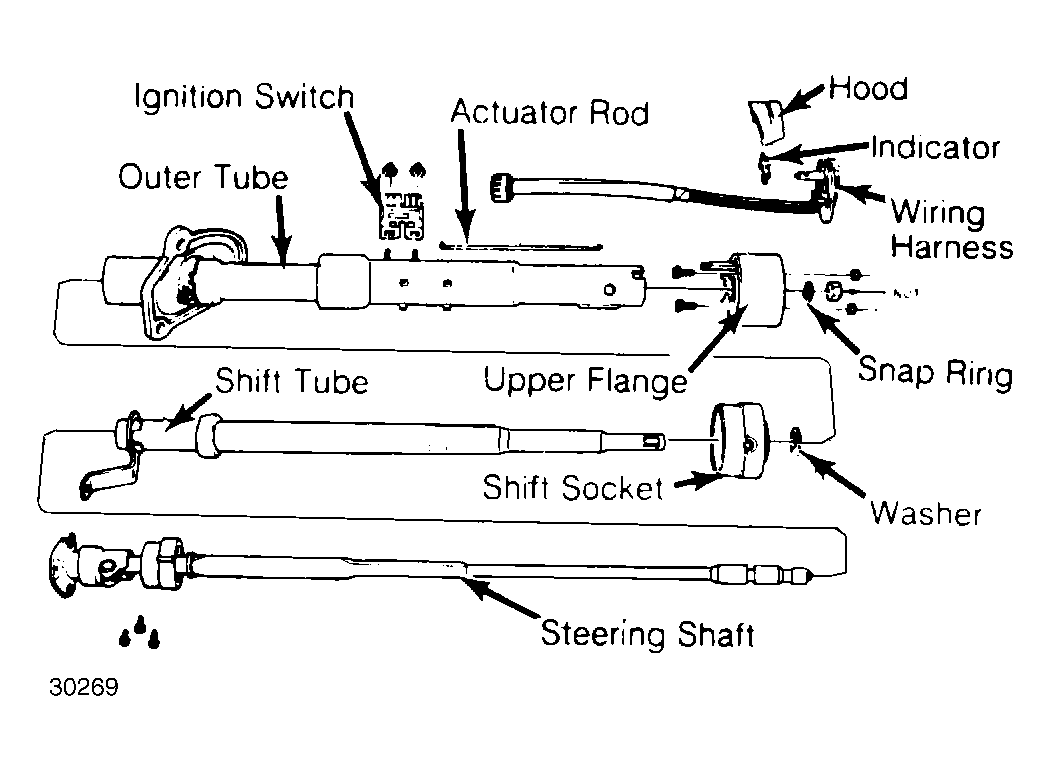

Fig 1: Exploded View of Non-Tilt Steering Column (Bronco & "F" Series With A/T)

Courtesy of FORD MOTOR CO.

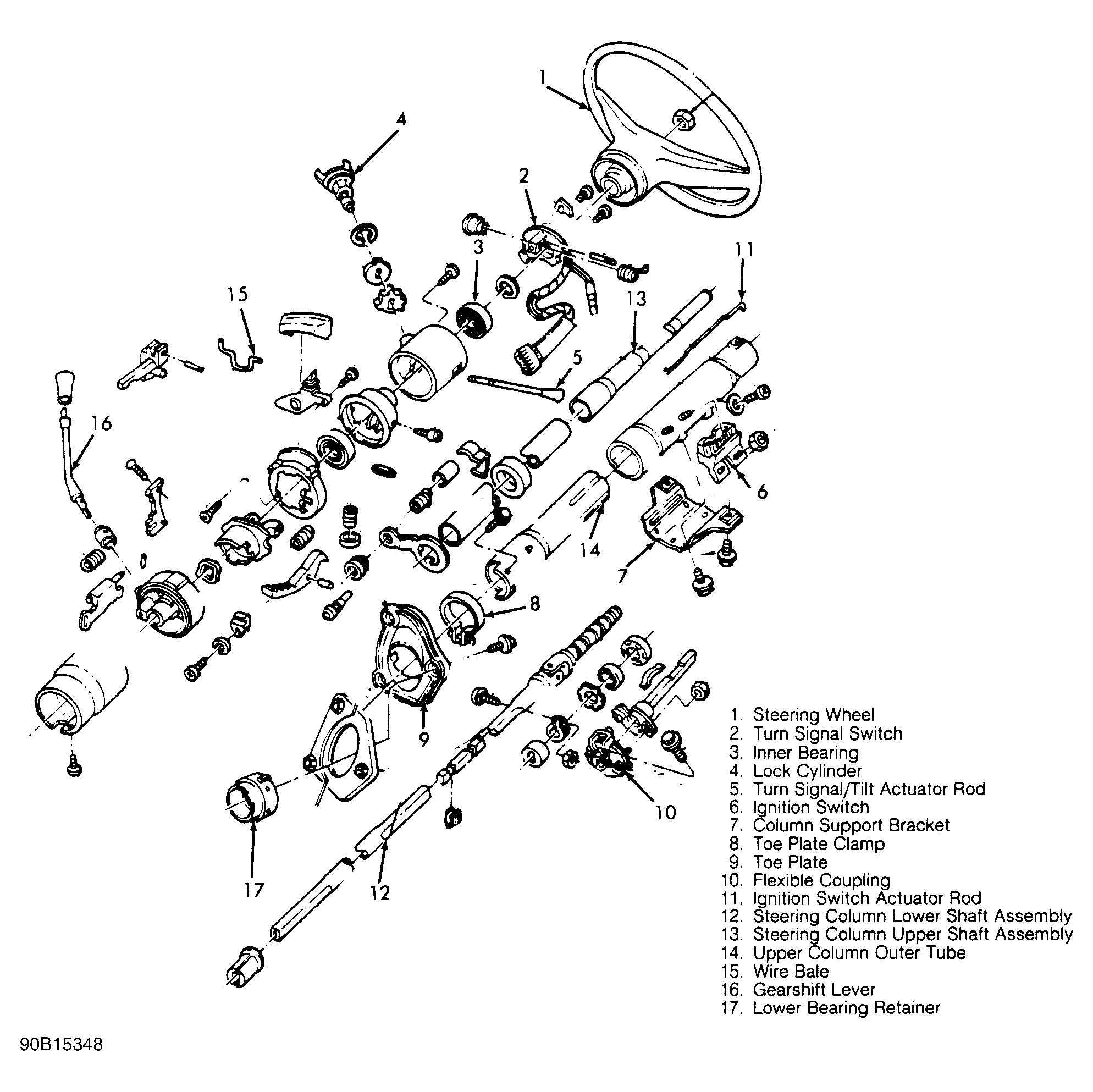

Fig 2: Exploded View of Non-Tilt Steering Column (Bronco & "F" Series With M/T)

Courtesy of FORD MOTOR CO.

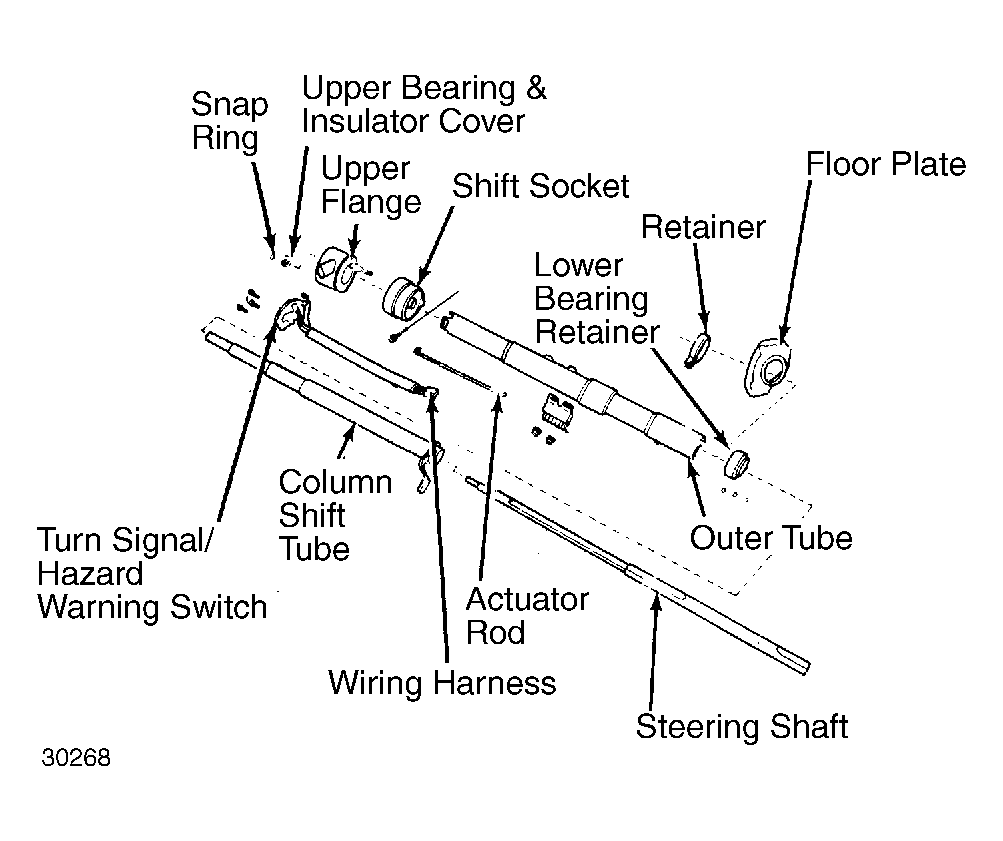

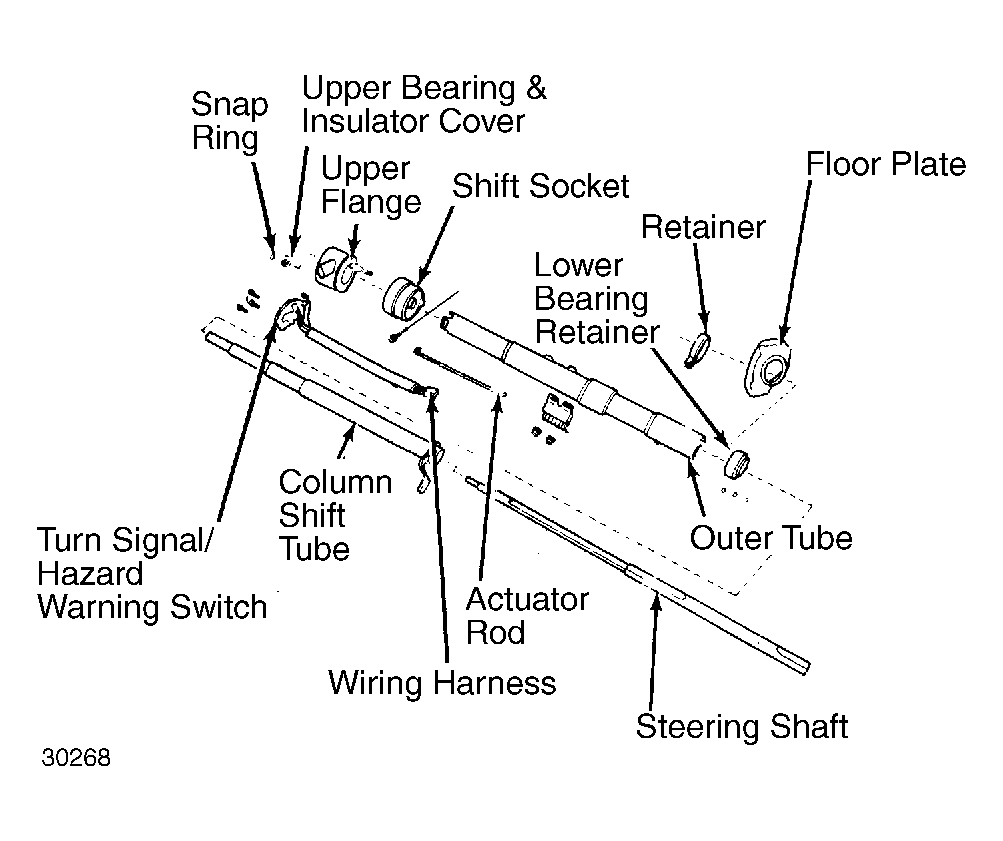

Fig 3: Exploded View of Non-Tilt Steering Column ("E" Series With A/T)

Courtesy of FORD MOTOR CO.

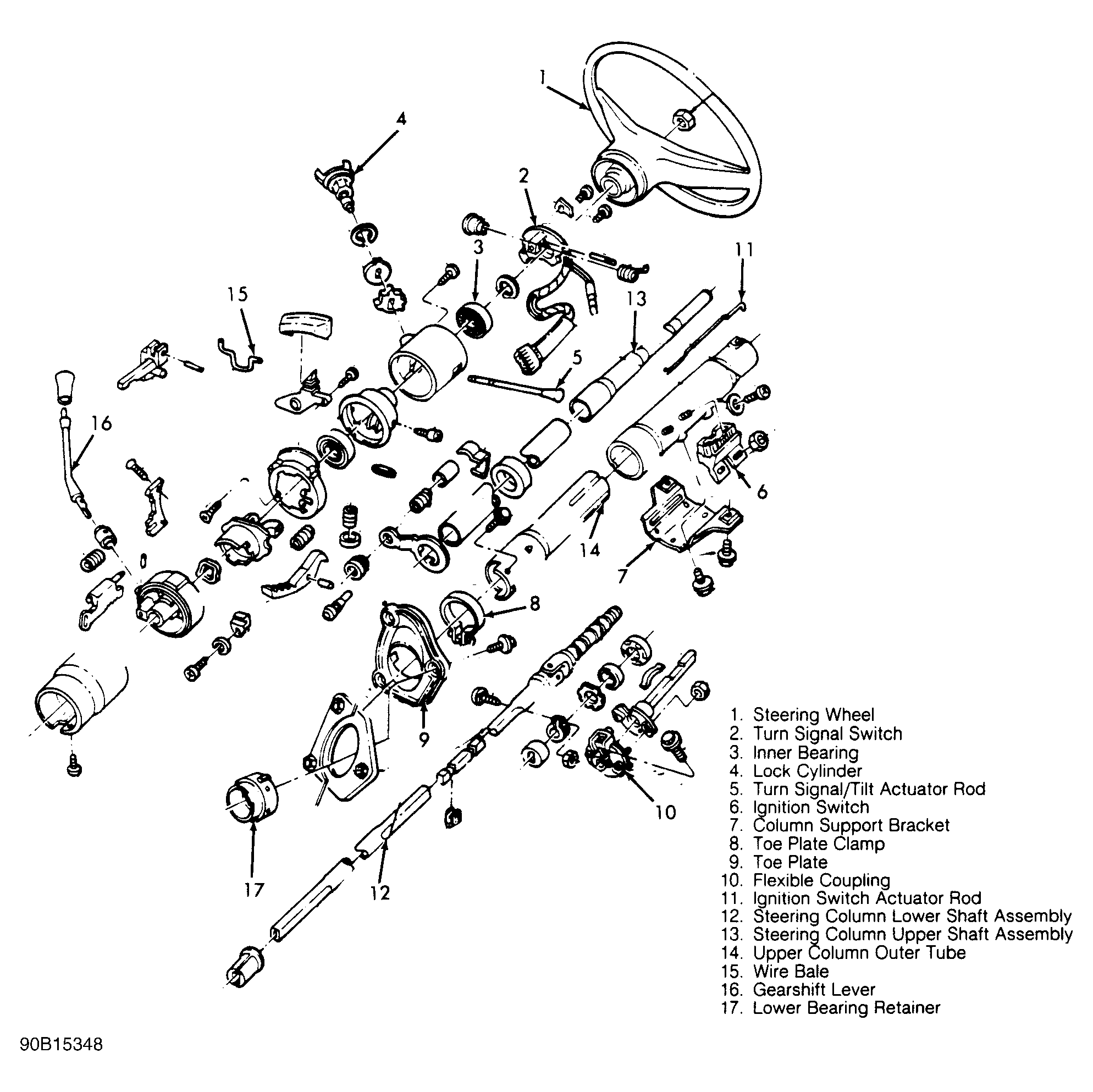

Fig 4: Exploded View of Tilt Steering Column (Bronco & "F" Series With A/T)

Courtesy of FORD MOTOR CO.

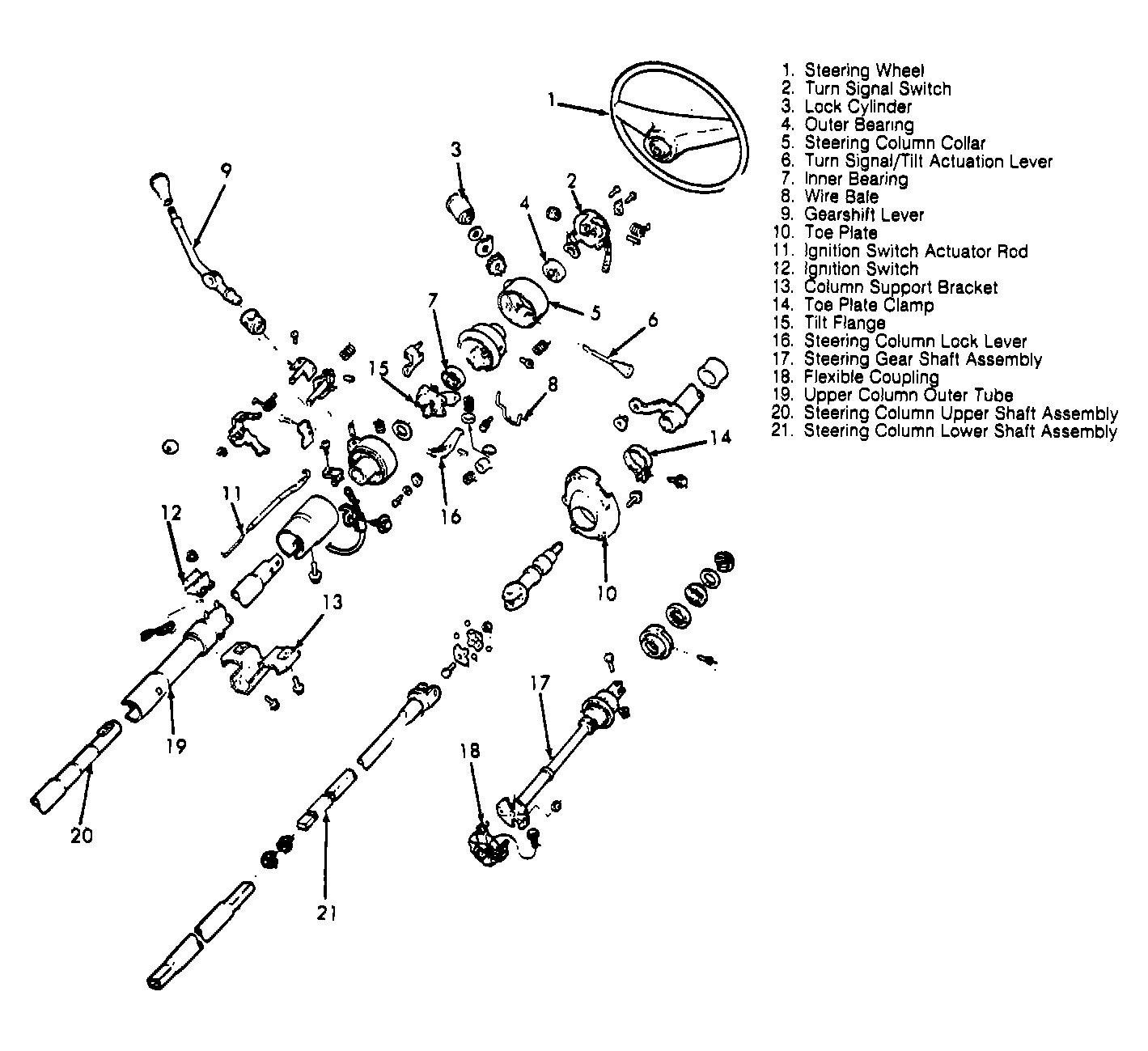

Fig 5: Exploded View of Tilt Steering Column ("E" Series With M/T)

Courtesy of FORD MOTOR CO.
