Wiring Diagrams

For anti-lock brake system wiring diagrams, see Fig 1 -21 . Also refer to appropriate chassis wiring diagram in WIRING DIAGRAMS  .

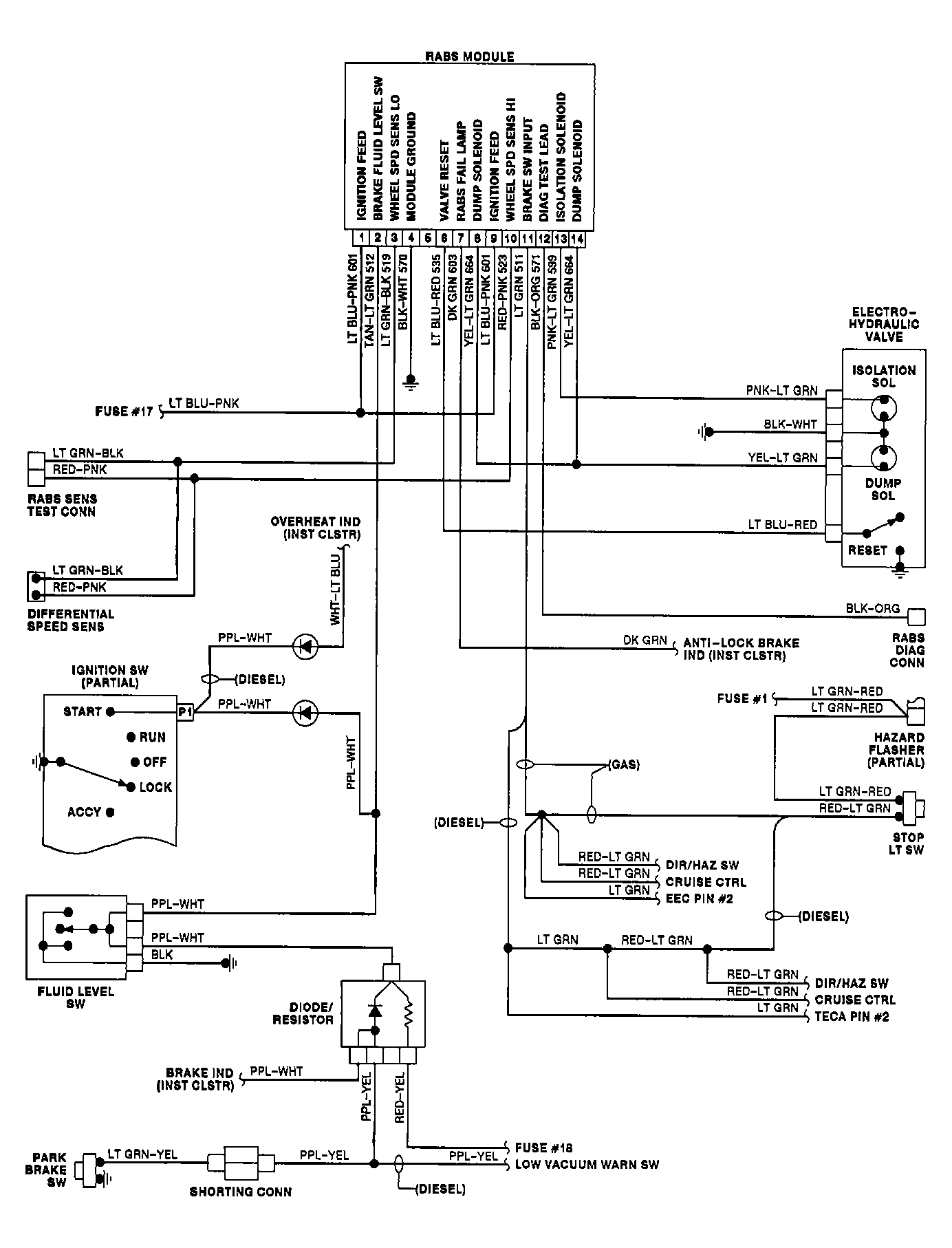

Fig 1: Rear ABS Wiring Diagram (Aerostar) 1990-91

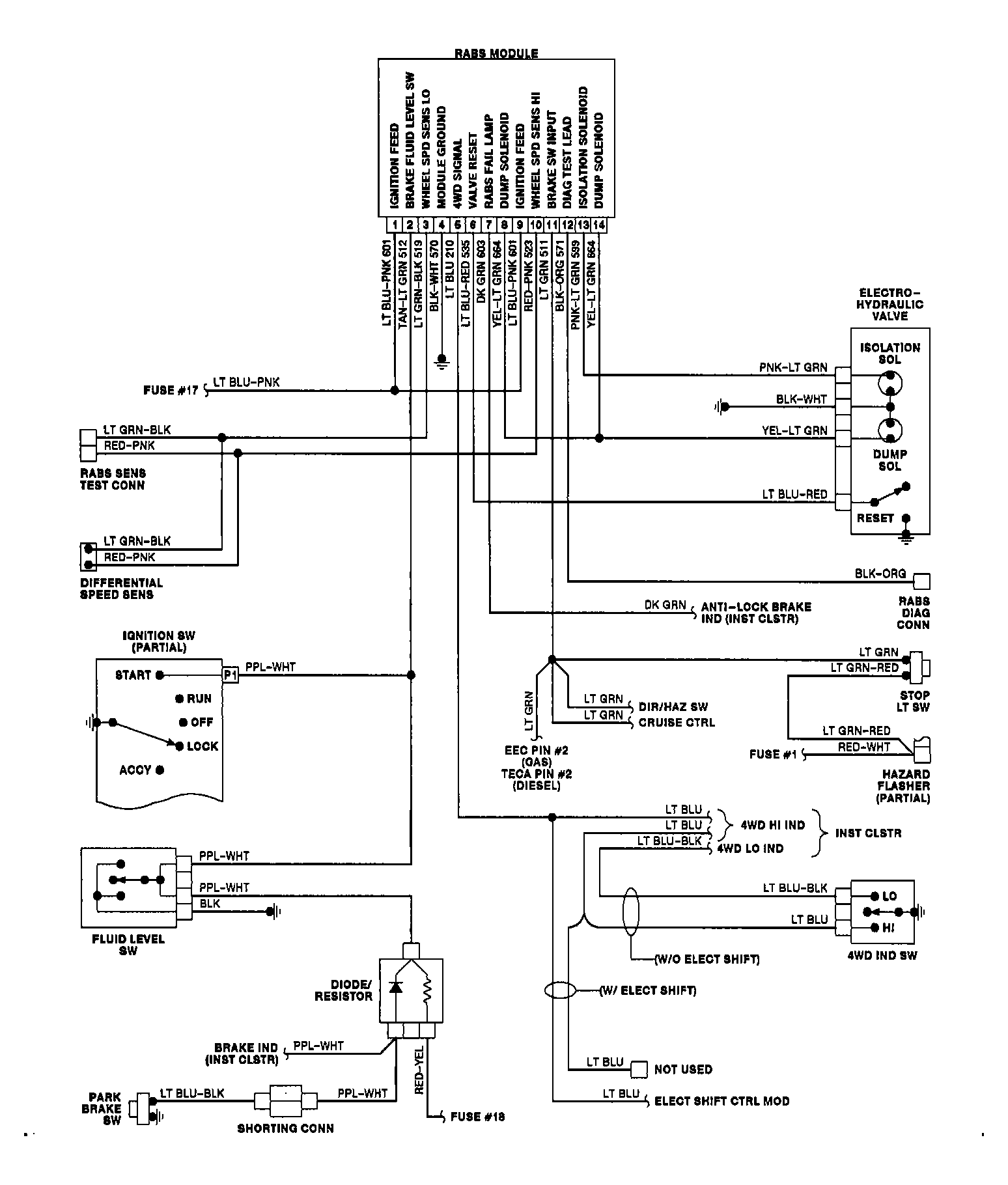

Fig 2: Rear ABS Wiring Diagram (Van)

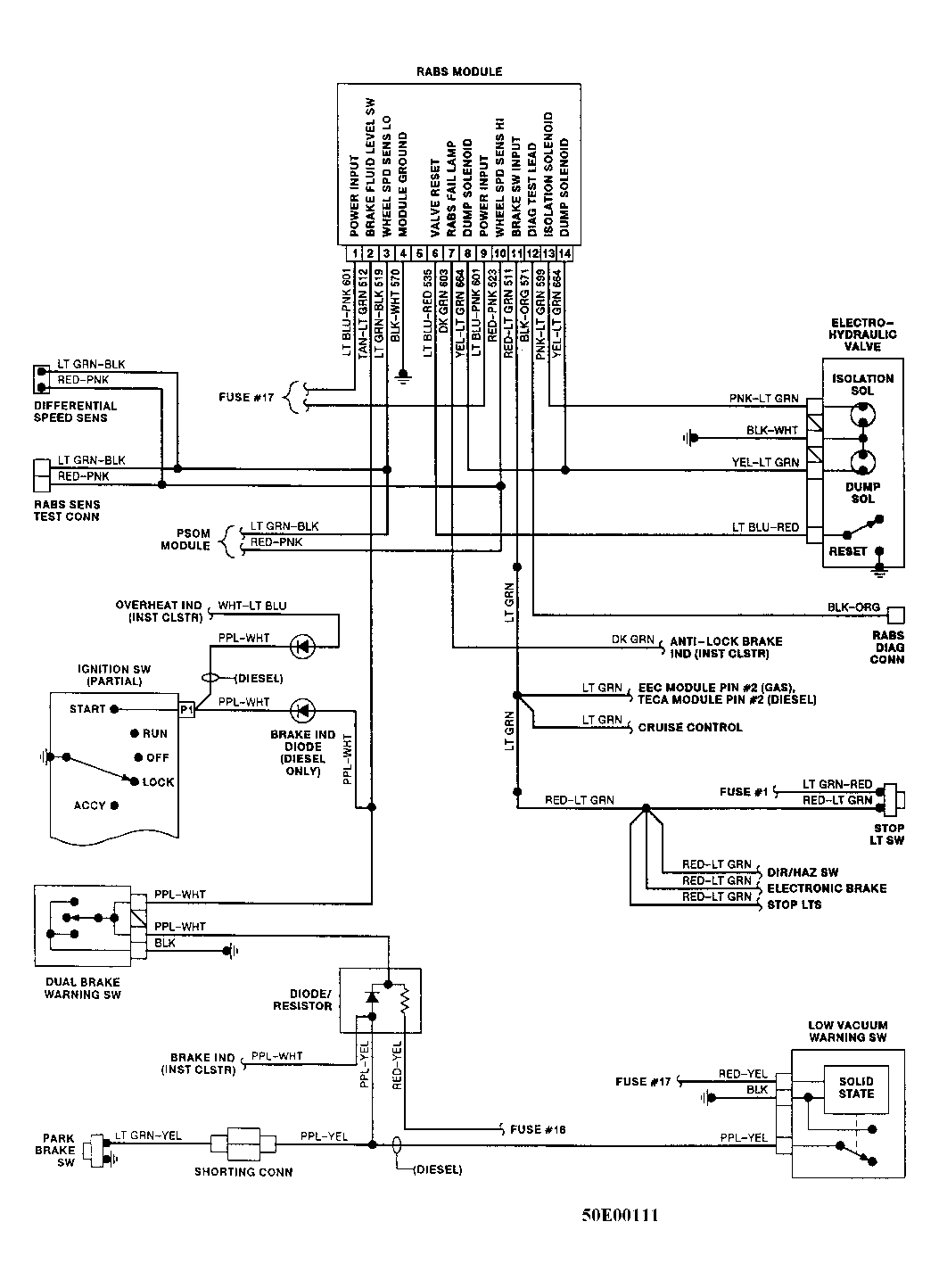

Fig 3: Rear ABS Wiring Diagram (Bronco & F Series) - 1989

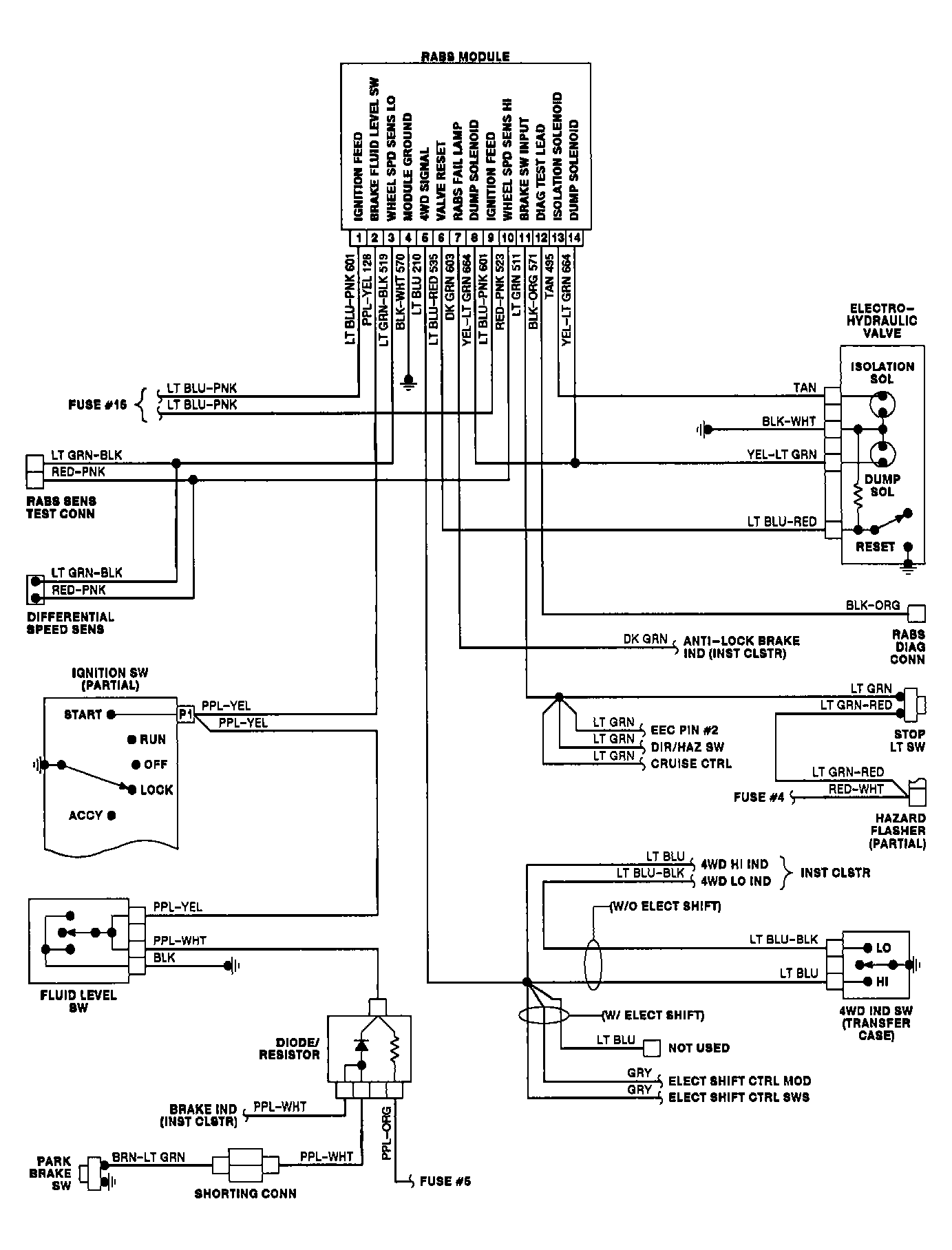

Fig 4: Rear ABS Wiring Diagram (Explorer & Ranger) - 1990-91

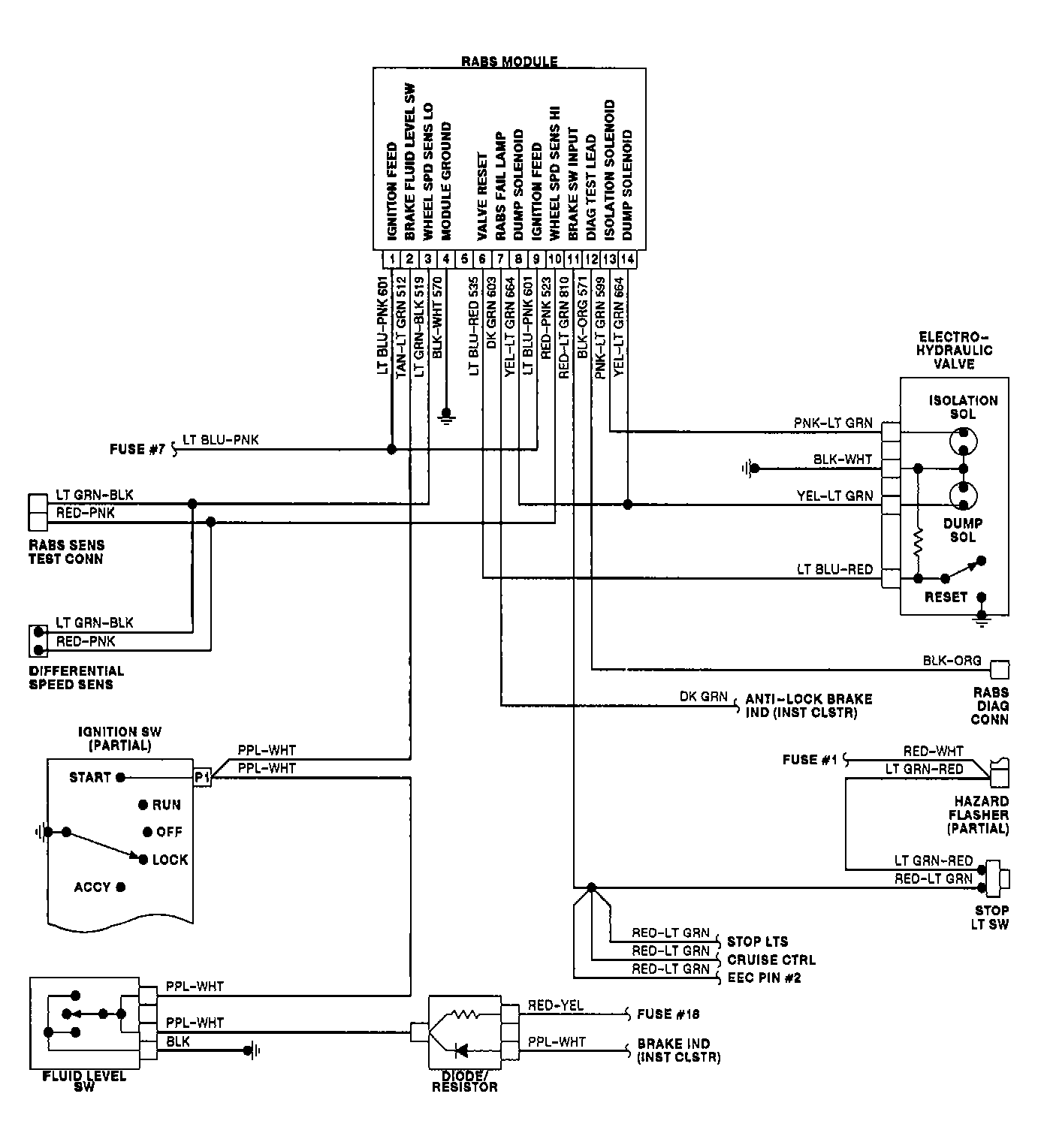

Fig 5: Rear ABS Wiring Diagram (E Series) - 1990-91

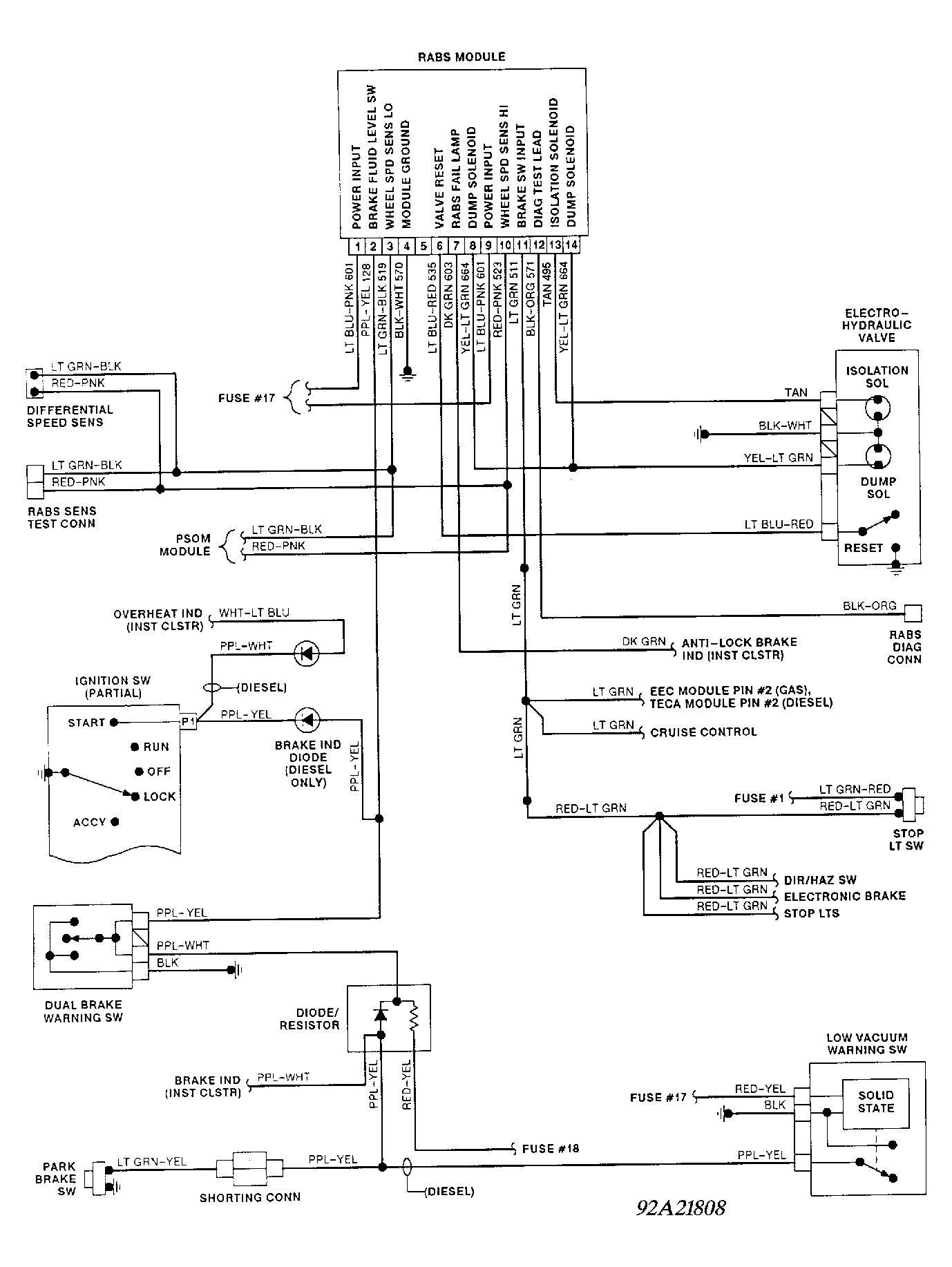

Fig 6: Rear ABS Wiring Diagram (Aerostar) - 1992

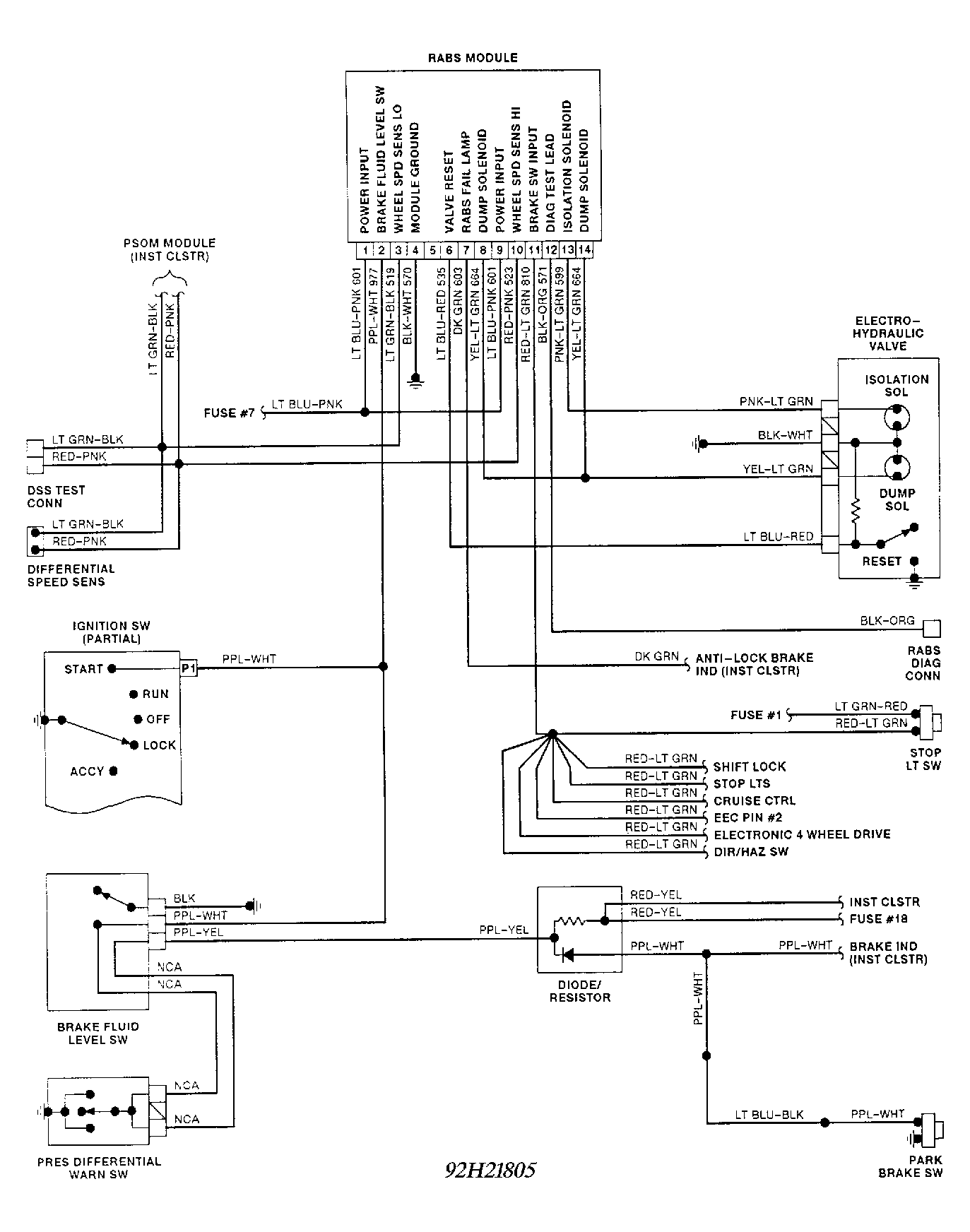

Fig 7: Rear ABS Wiring Diagram (Bronco & Pickup) - 1992

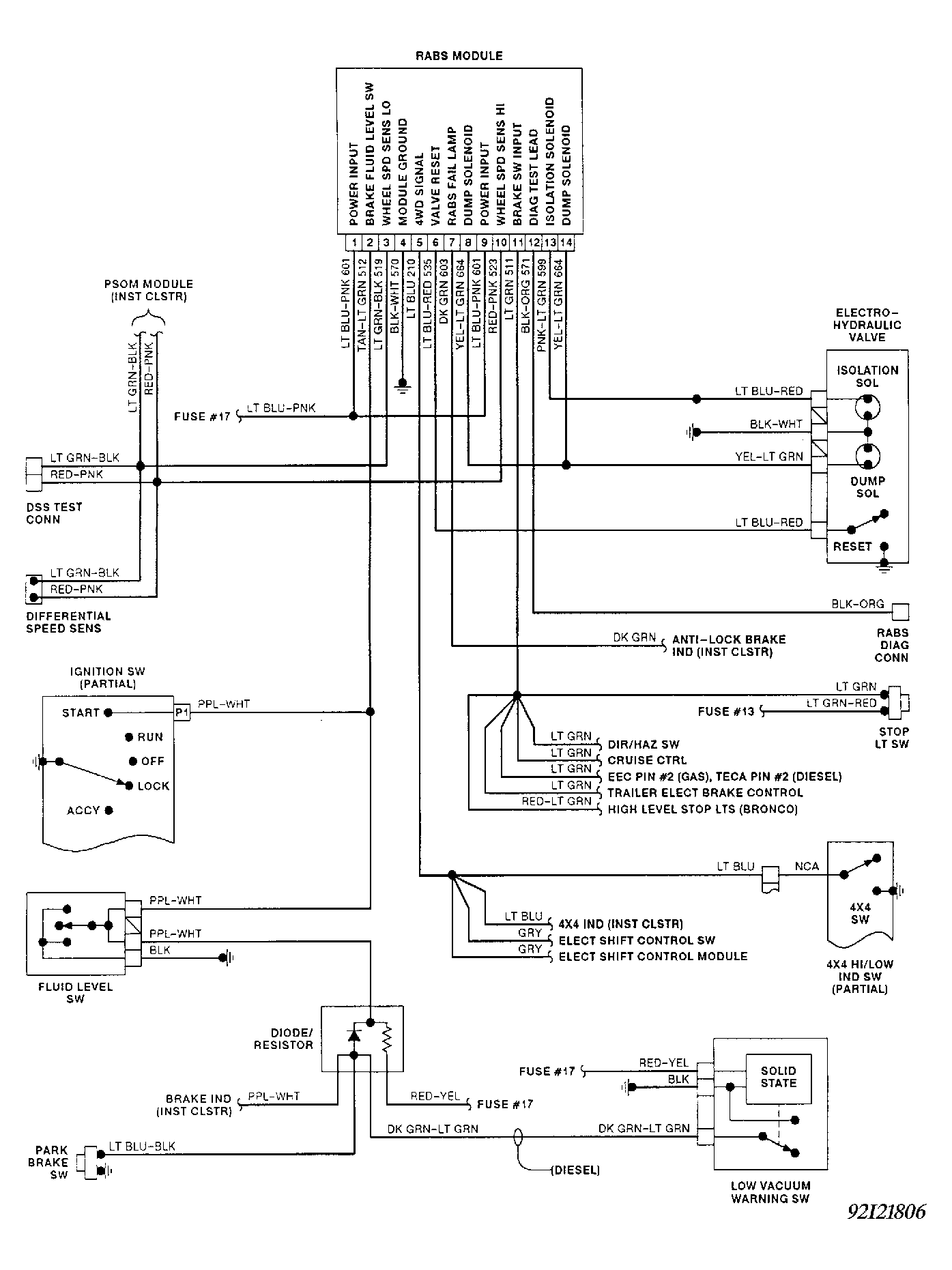

Fig 8: Rear ABS Wiring Diagram (Explorer & Ranger) - 1992
