Test DH - Introduction

NOTE: Perform this test when Code 23, 53, 63, or 73 is displayed during QUICK TEST.

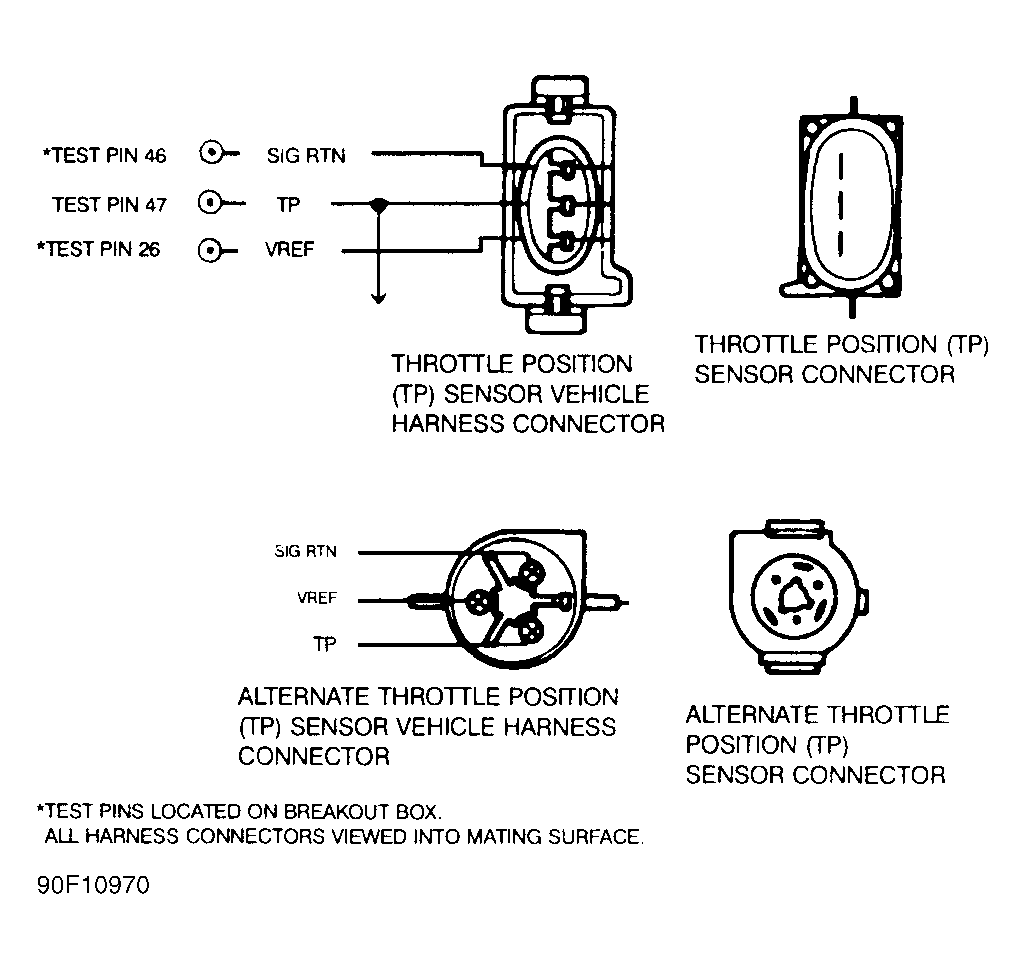

Fig 1: TPS Circuits

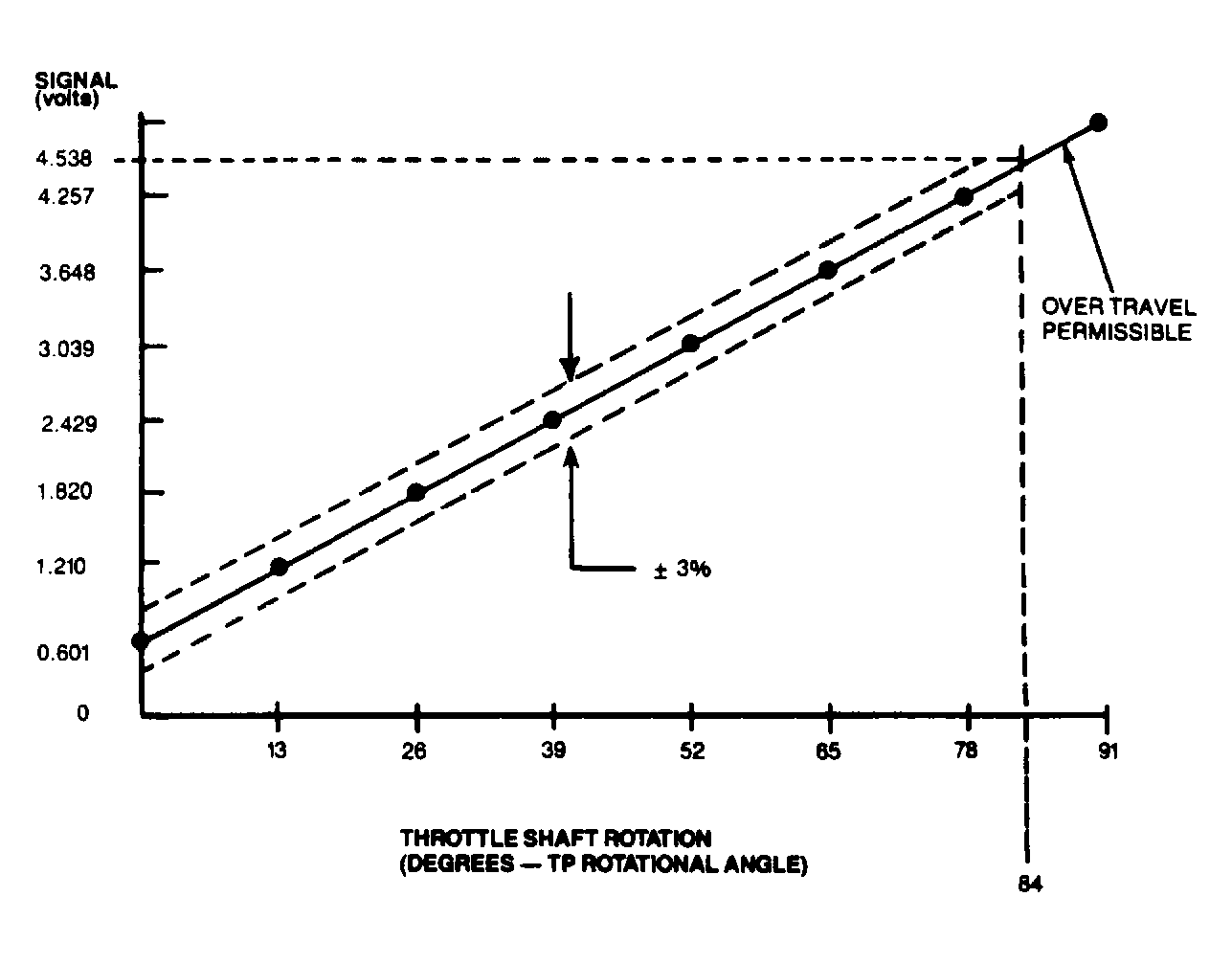

Fig 2: TPS Specification Graph

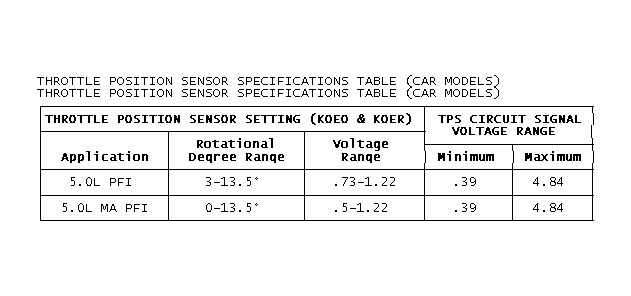

Fig 3: THROTTLE POSITION SENSOR SPECIFICATIONS TABLE (CAR MODELS)

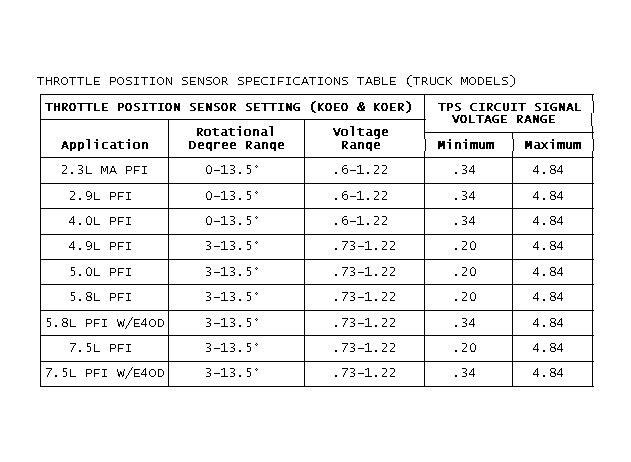

Fig 4: THROTTLE POSITION SENSOR SPECIFICATIONS TABLE (TRUCK MODELS)

NOTE: The normal range of throttle angle measurement for the TPS is 0 to 85 degrees. To pass QUICK TEST procedure, the range of throttle rotation (in degrees) must be within 3% of specification.

TEST PIN IDENTIFICATION

Test Pin No.		Wire Color
Pin 26
F Series Bronco/Pickup (All Engines)		Brown/White
All Other Truck Models		Orange/White
Pin 46
F Series Bronco/Pickup (All Engines)		Grey/Yellow
All Other Truck Models		Black/White
Pin 47
F Series Bronco/Pickup (All Engines)		Grey/White
All Other Truck Models		Dark Green/Light Green

To prevent replacement of good components, be aware that the following non-EEC related areas may be at fault:

Idle speed
Throttle stop adjustment
Binding throttle shaft or linkage
Cruise control linkage
