Test DQ: Step 92

92) Checking EEC-IV Vehicle Harness  While still in KOEO/CONTINUOUS monitor mode, perform the following checks:

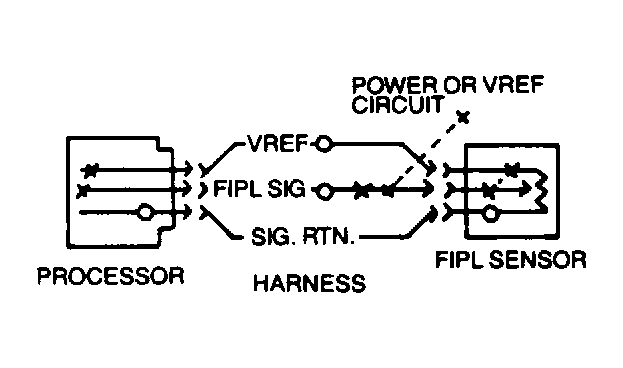

• Grab vehicle harness close to the sensor connector. See Figure.
• Wiggle, shake or bend a small section of the harness while working back toward the instrument panel.
• Wiggle, shake or bend the harness from the instrument panel towards the ECA.

If a fault is indicated, isolate the fault and service as necessary. Clear CONTINUOUS memory. Rerun the QUICK TEST. If no fault is indicated, go to the next step.
