Test J: Step 30

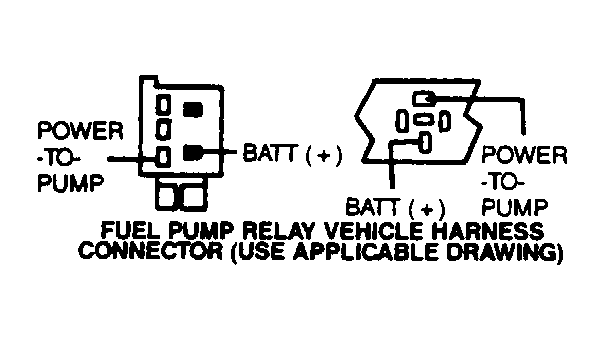

30) Code 96: Checking BATT (+) to Fuel Pump Relay Code 96 indicates a fuel pump secondary circuit failure between the BATT (+) supply and the FPM connection to the POWER-to-PUMP circuit. Possible causes for this fault are: faulty fuel pump relay, ECA, or open circuit. Turn key off and wait 10 seconds. Locate fuel pump relay. With the DVOM on 20-volt scale, measure voltage between BATT (+) circuit at fuel pump relay and battery negative post. If voltage is greater than 10.5 volts, go to next step. If voltage is less than 10.5 volts, repair open circuit in BATT (+) circuit and rerun QUICK TEST.
