4WD Low Circuit

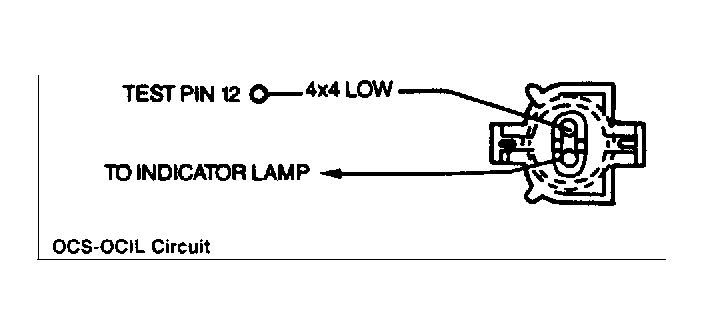

Measure resistance between test pin No. 12 at the breakout box and 4WD LOW circuit at the 4WD LOW switch vehicle harness. If resistance is less than 5 ohms, go to next step. If resistance is more than 5 ohms, repair open circuit(s) as necessary, remove breakout box, reconnect components and rerun QUICK TEST.
