Spark Plug Wire Routing (2.3L)

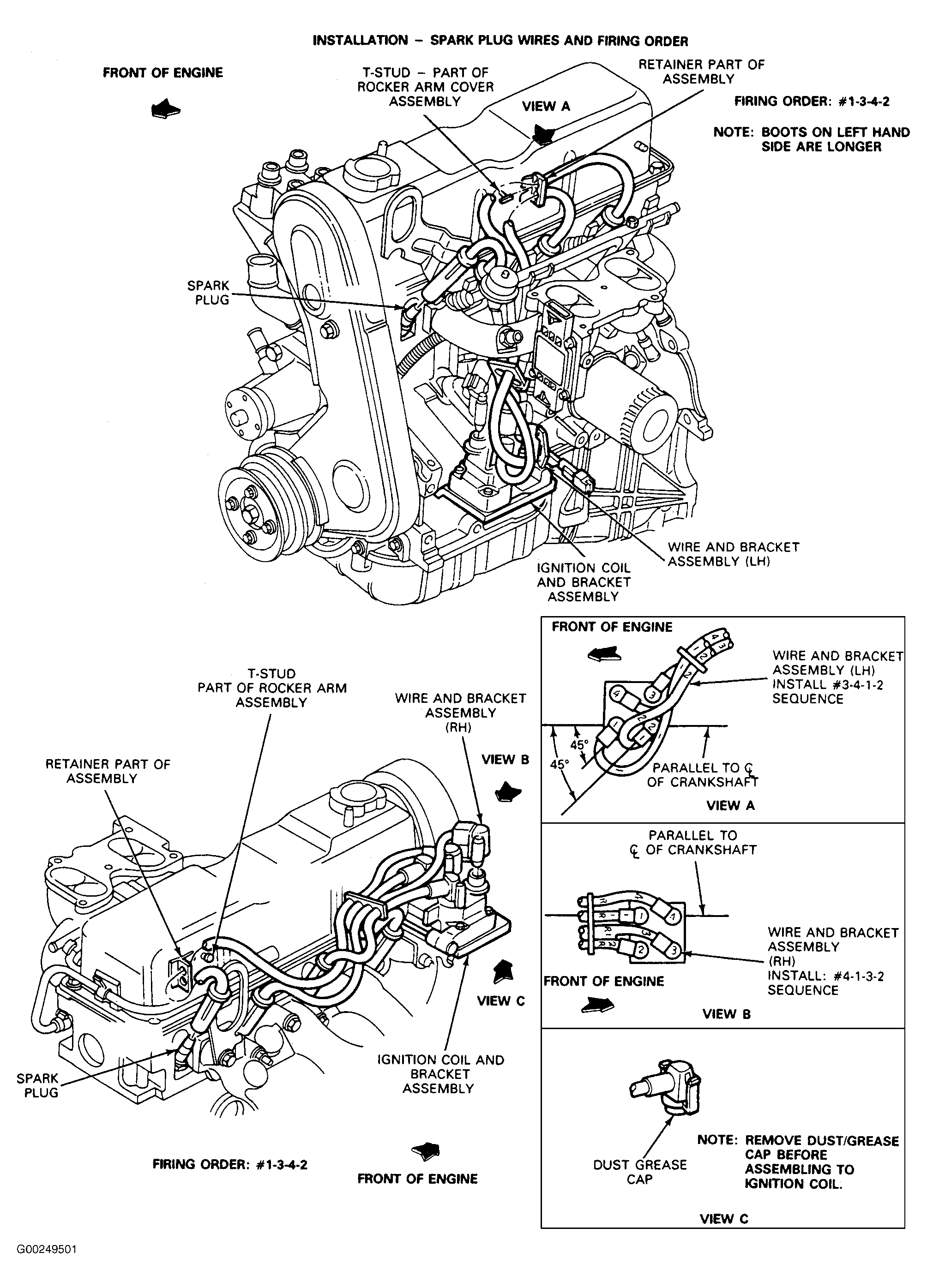

Fig 1: Identifying Spark Plug Wire Routing (2.3L)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
