Test A - Introduction
CAUTION:
Stop this test at first sign of a fuel leak. DO NOT
allow smoking or an open flame in the vicinity of the vehicle during these tests.
NOTE:
Enter this Pinpoint Test only when QUICK TEST have been successfully completed and the engine is still a no start, or when directed here from another test or chart.
NOTE:
This test is intended to diagnose only the following EEC-IV ignition systems and circuits:
- Thick Film Ignition (TFI) Systems
- TFI Systems With Closed Bowl Distributors (CBD) and Cowl Mounted TFI Modules
- Distributorless Ignition Systems (DIS)
- Spark (ECA Controlled)
- Wiring Harness Circuits (PIP, SPOUT, IGN GND, VPWR)
- ECA

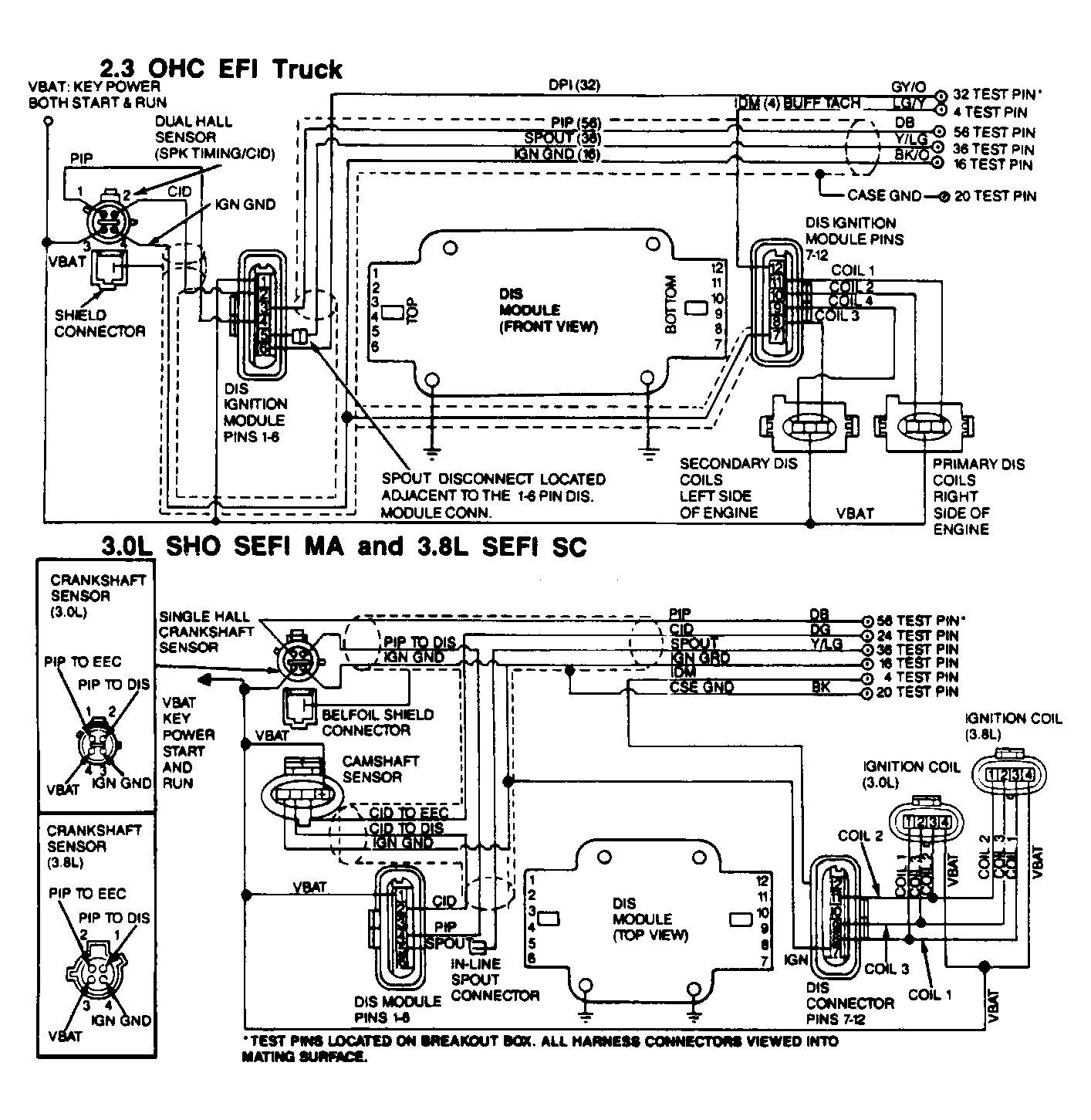

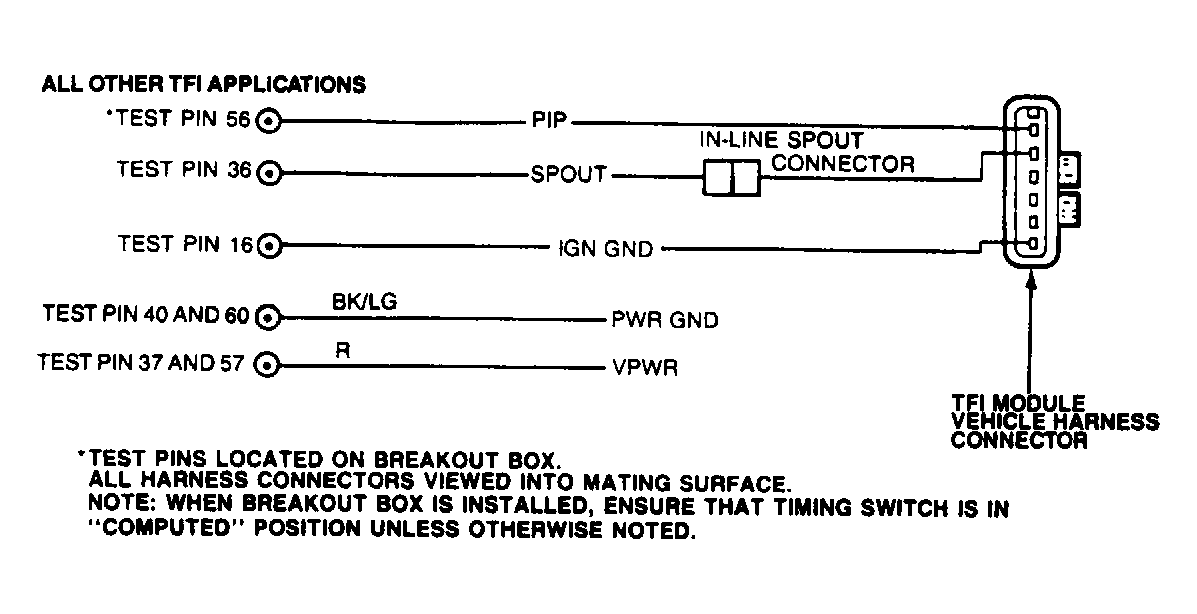

TFI/DIS TEST PIN IDENTIFICATION (WIRE COLOR)
| Test Pin No. | Wire Color | |
|---|---|---|
| Pin 56 | ||
| 5.0L & 5.8L F Series Bronco/Pickup | Grey/Orange | |
| 7.5L F Series Bronco/Pickup | Black/Orange | |
| All Others | Dark Blue | |
| Pin 36 | ||
| F Series Bronco/Pickup (All Engines) | Pink | |
| All Others | Yellow/Light Green | |
| Pin 16 | ||
| F Series Bronco/Pickup (All Engines) | Orange | |
| All Others | Black/Orange | |
TFI MODULE LOCATION
| Application | Location |
|---|---|
| 7.5L Truck | Distributor |
To prevent replacement of good components, be aware that the following non-EEC related areas and components may be at fault:
- Fuel Quality & Quantity
- Ignition (General System Condition)
- Ignition (TFI or EDIS/DIS Module)
- Engine Mechanical Components
- Starter & Battery Circuits
- Dual Hall Sensor
- Distributor
- Camshaft Sensor (CID)
- Crankshaft Hall Sensor (PIP)
- Ignition or EDIS/DIS Coil
