Test DA - Introduction
NOTE:
Perform this test only when Codes 21, 24, 28, 51, 54, 58, 61, 64, or 68 are received in QUICK TEST. Ambient air temperature must be at least 50°F (10°C) to receive valid input from ACT and VAT sensors. Engine coolant temperature must be greater than 50°F to pass KOEO Self-Test and greater than 180°F to pass KOER Self-Test. Voltage values in this test are based on a 5-volt VREF signal. Values may vary up to 15% due to sensor and VREF variations. For test results to be valid, avoid performing test in unusually hot or cold conditions.
NOTE:

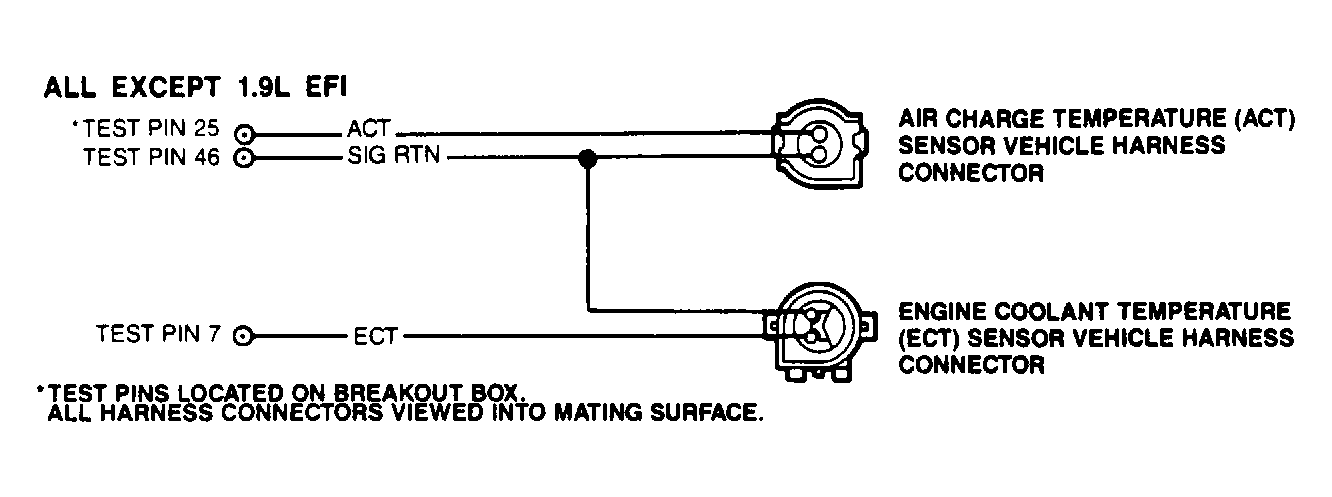

This Pinpoint Test is intended to diagnose the following components and circuits:
- ACT Sensor
- ECT Sensor
- VAT Sensor
- Vehicle Harness Circuits (ACT, ECT, VAT & SIG RTN)
- ECA

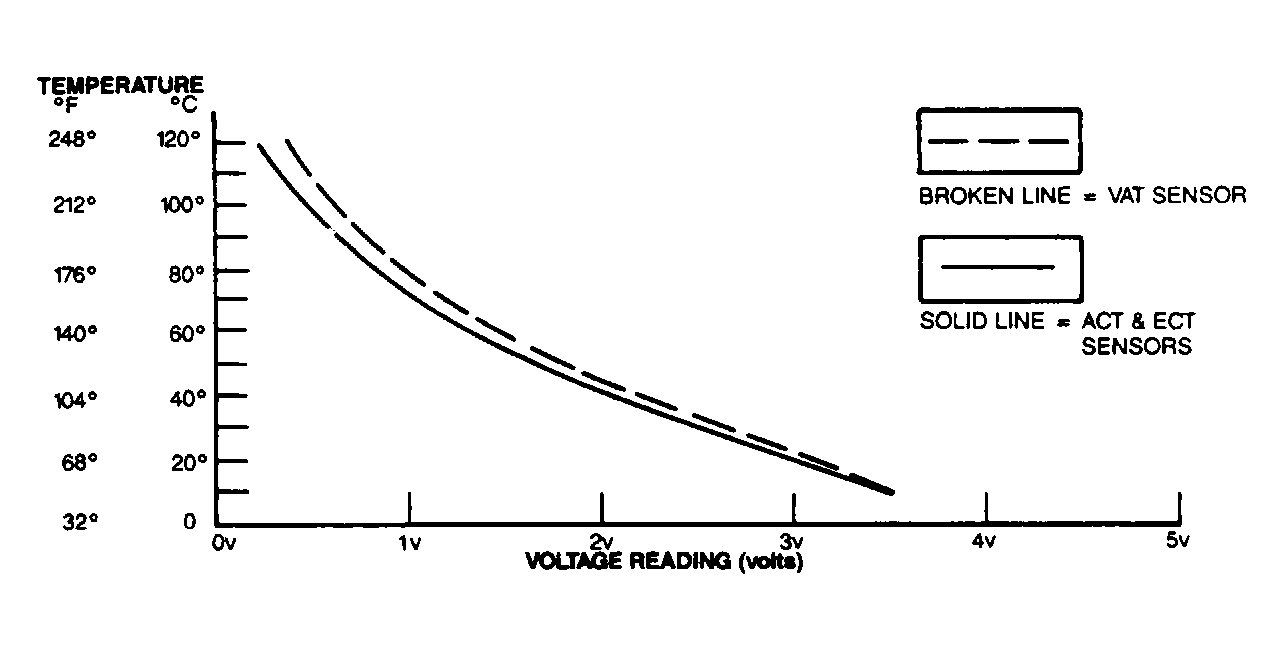

ENGINE COOLANT/AIR CHARGE TEMP. SENSOR RESISTANCE & VOLTAGE
| Temperature °F (°C) | Voltage (volts) | Resistance (K ohms) |
|---|---|---|
| 248 (120) | .27 | 1.18 |
| 230 (110) | .35 | 1.55 |
| 212 (100) | .46 | 2.07 |
| 194 (90) | .60 | 2.80 |
| 176 (80) | .78 | 3.84 |
| 158 (70) | 1.02 | 5.37 |
| 140 (60) | 1.33 | 7.70 |
| 122 (50) | 1.70 | 10.97 |
| 104 (40) | 2.13 | 16.15 |
| 86 (30) | 2.60 | 24.27 |
| 68 (20) | 3.07 | 37.30 |
| 50 (10) | 3.51 | 58.75 |
VANE AIR TEMP. SENSOR RESISTANCE & VOLTAGE
| Temperature °F (°C) | Voltage (volts) | Resistance (K ohms) |
|---|---|---|
| 248 (120) | 0.38 | 0.11 |
| 230 (110) | 0.46 | 0.14 |
| 212 (100) | 0.56 | 0.19 |
| 194 (90) | 0.76 | 0.25 |
| 176 (80) | 0.95 | 0.33 |
| 158 (70) | 1.19 | 0.44 |
| 140 (60) | 1.49 | 0.60 |
| 122 (50) | 1.84 | 0.83 |
| 104 (40) | 2.23 | 1.18 |
| 86 (30) | 2.65 | 1.70 |
| 68 (20) | 3.07 | 2.50 |
| 50 (10) | 3.46 | 3.77 |
| 32 (0) | N/A | 5.80 |
To prevent the replacement of good components, ensure the following non-EEC areas or components are not at fault:
- Air Cleaner Duct
- Ambient Temperature Too Low
- Coolant Level Low
- Cooling System, Water Pump, Fan
- Engine Oil Level Low
- Engine Operating Temperature Low
- Faulty Heat Riser Duct Valve
- Faulty Thermostat
