Test DJ - Introduction
NOTE:
Perform this test when Code 14 is displayed during QUICK TEST or when directed here by other test procedures.
NOTE:
This Pinpoint Test is intended to diagnose the following:
- Harness circuits RPMS (+) and RPMS (-).
- Engine RPM sensor.
- ECA assembly.

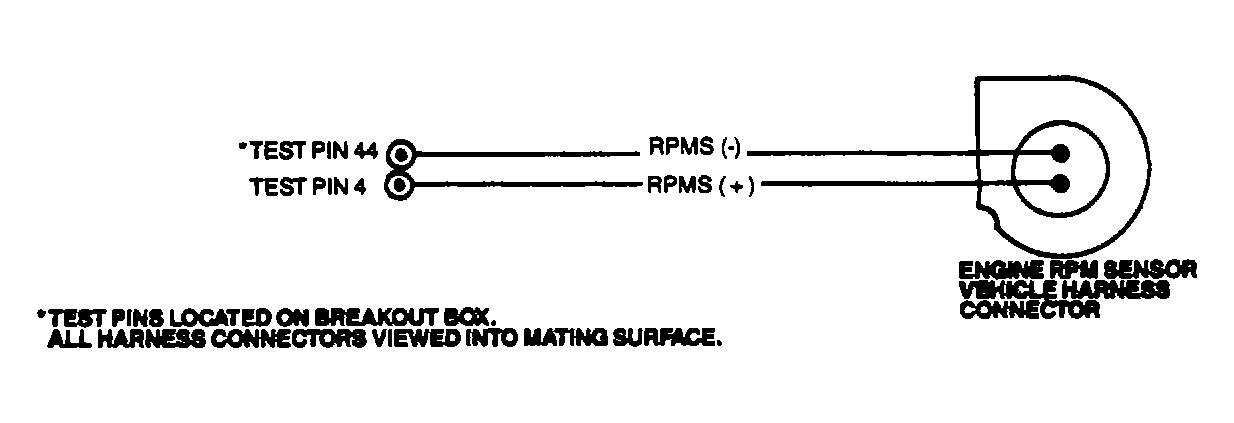

TEST PIN IDENTIFICATION
| Test Pin No. | Wire Color | |
|---|---|---|
| Pin 44, RPMS (-) | ||
| "E" Series Pickup | Black/Light Green | |
| "F" Series Van | Dark Green | |
| Pin 4, RPMS (+) | ||
| "E" Series Van | Dark Blue | |
| "F" Series Pickup | Tan/Yellow | |
To prevent replacement of good components, check for proper RPM sensor installation and for clean, tight connections.
