Test DP: Step 11

11) Check Ground to VSS  With vehicle raised on hoist and key off, disconnect VSS. Set DVOM on 200-ohm scale. Measure resistance between pin No. 1 of VSS vehicle harness connector and engine block ground. If resistance is less than 5 ohms, go to next step. If not, repair open in VSS circuit. Reconnect VSS and repeat QUICK TEST.

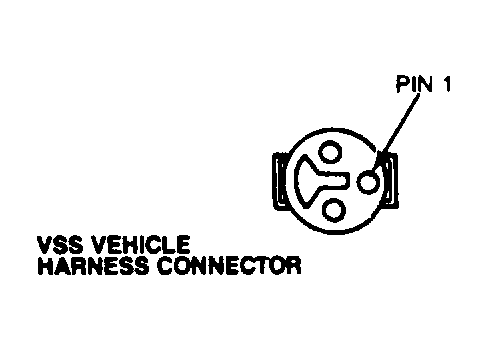

Fig 1: Checking Resistance at VSS Harness Connector
G90B12410
