Test TC: Step 94

94) Circuit Diagram For Continuous Monitor Mode  Refer to E4OD Vehicle Harness Circuit Diagram.

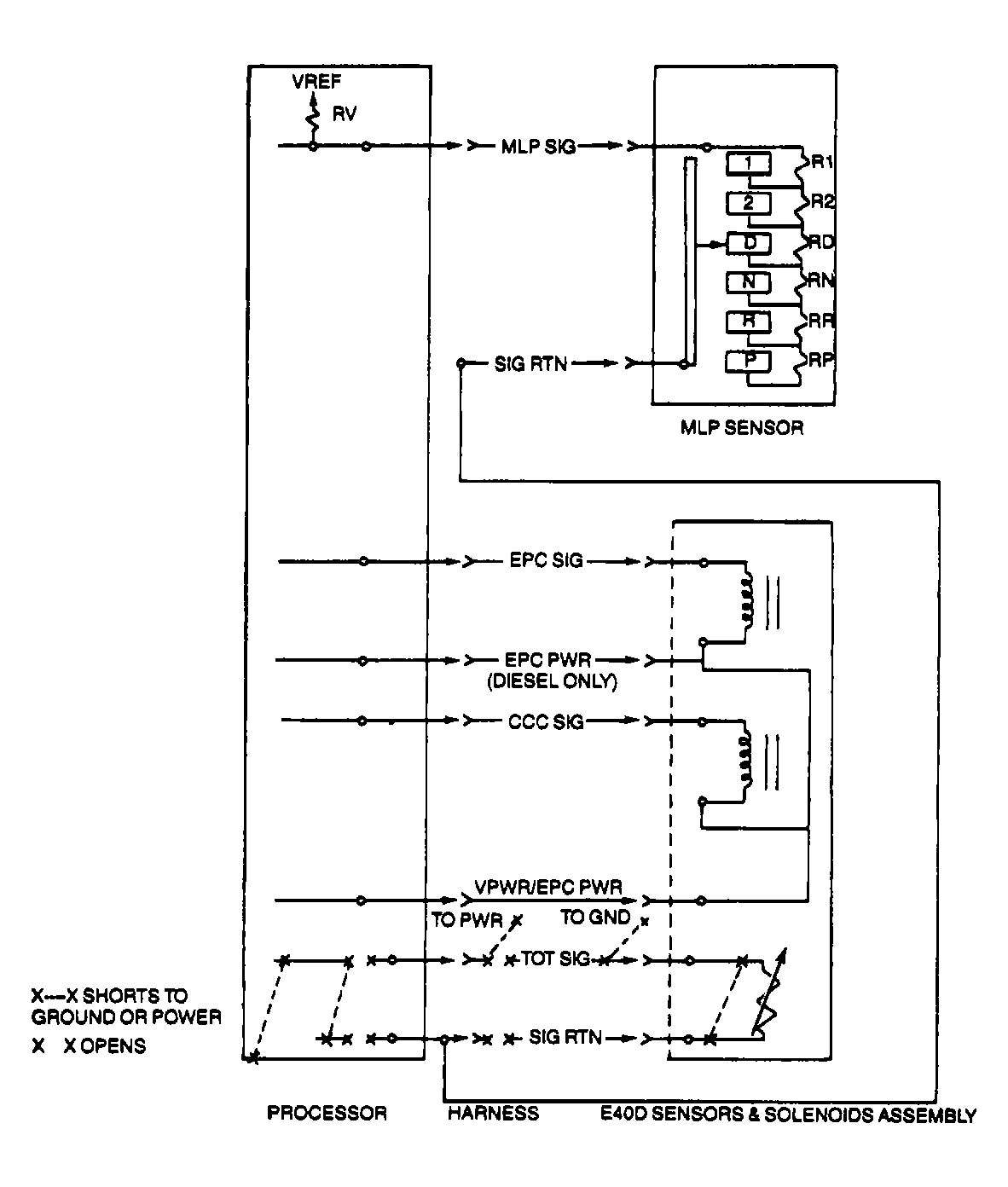

Fig 1: E4OD Vehicle Harness Circuit
G90B09322
