Steering Column: Overhaul

When overhauling steering columns, refer to exploded view illustrations. See Fig 1 -Fig 6 .

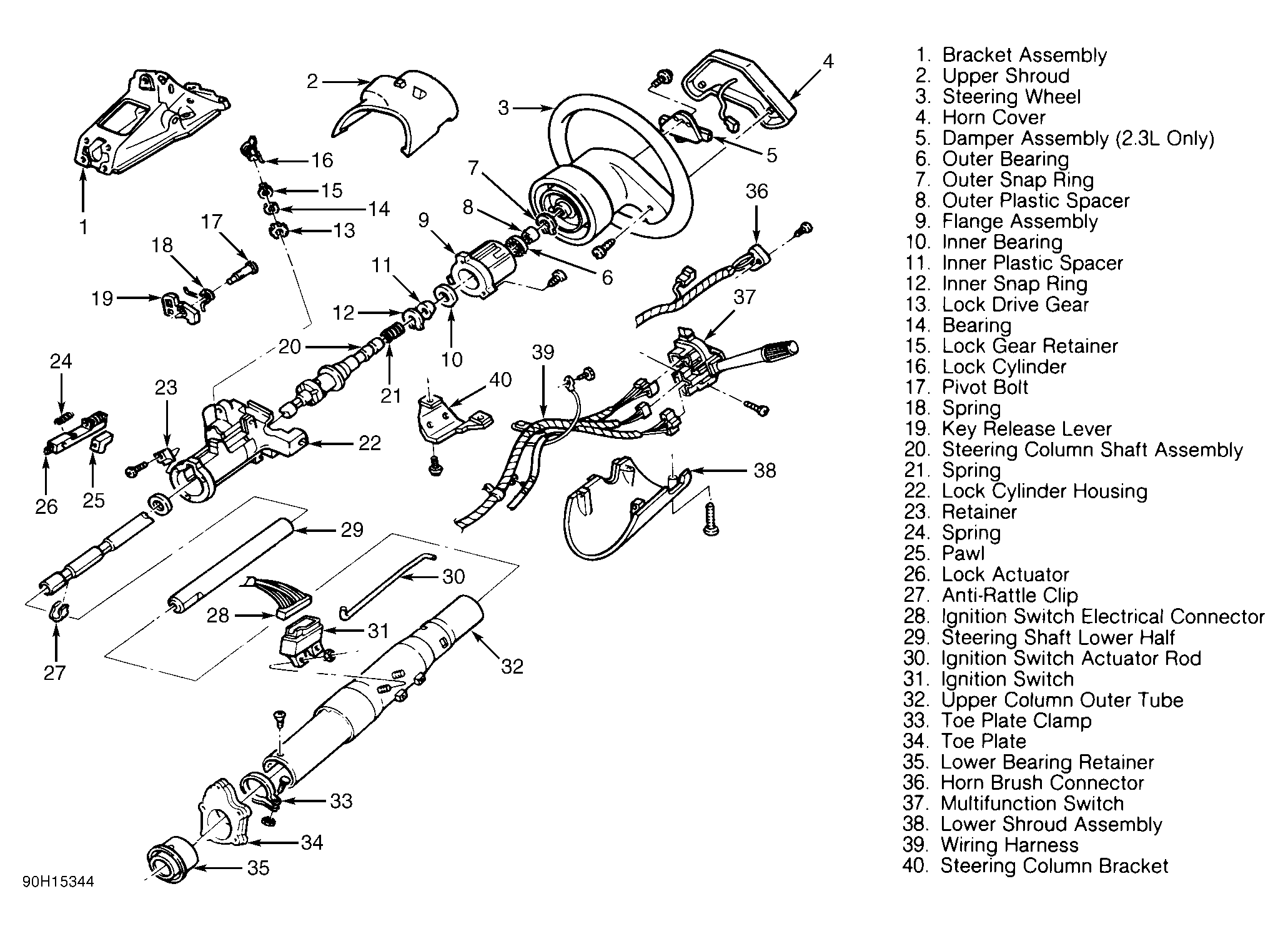

Fig 1: Exploded View of Standard Steering Column (Aerostar)

Courtesy of FORD MOTOR CO.

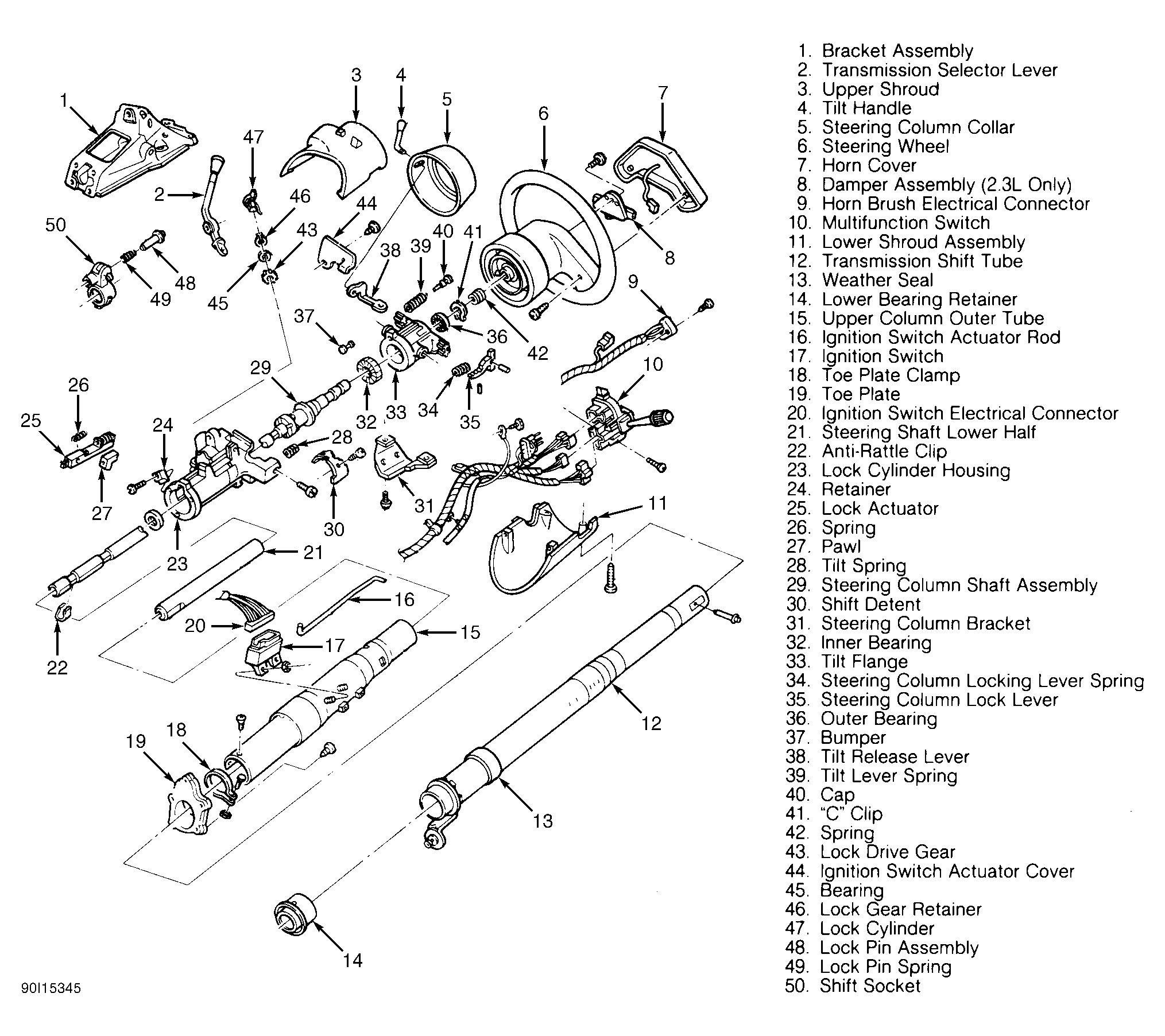

Fig 2: Exploded View of Tilt Steering Column (Aerostar)

Courtesy of FORD MOTOR CO.

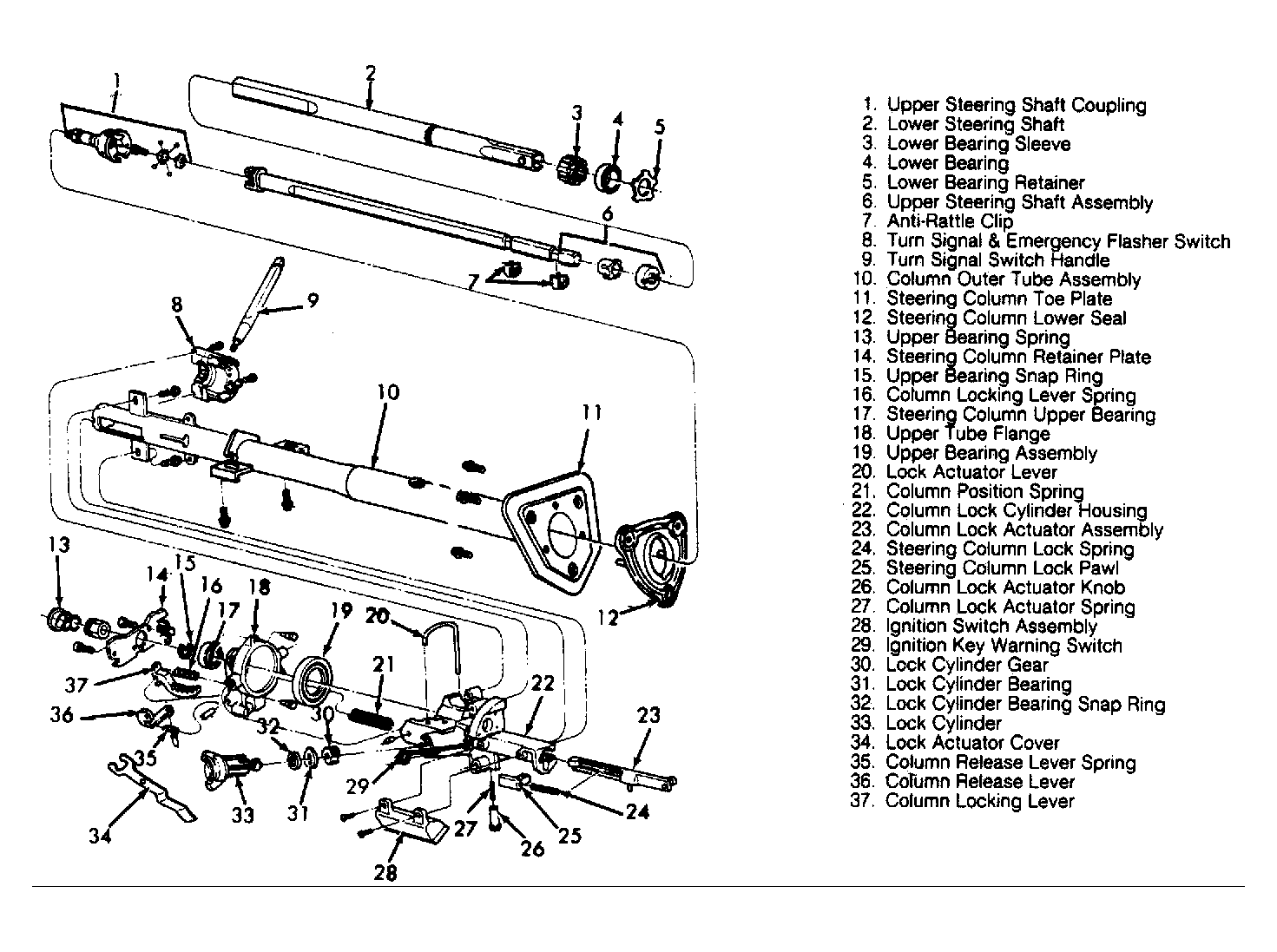

Fig 3: View of Standard Steering Column (Bronco II & Ranger - With A/T)

Courtesy of FORD MOTOR CO.

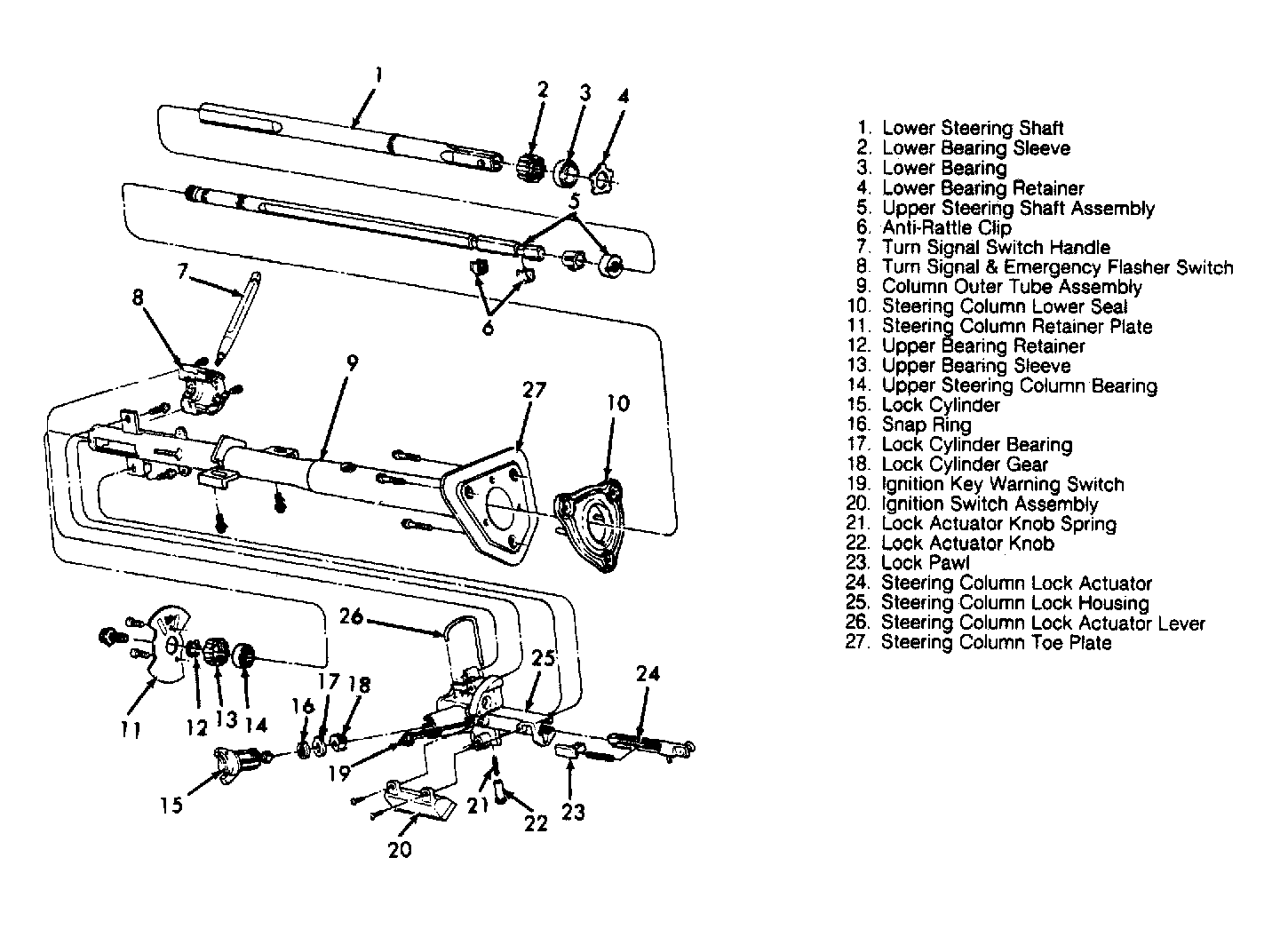

Fig 4: View of Standard Steering Column (Bronco II & Ranger - With M/T)

Courtesy of FORD MOTOR CO.

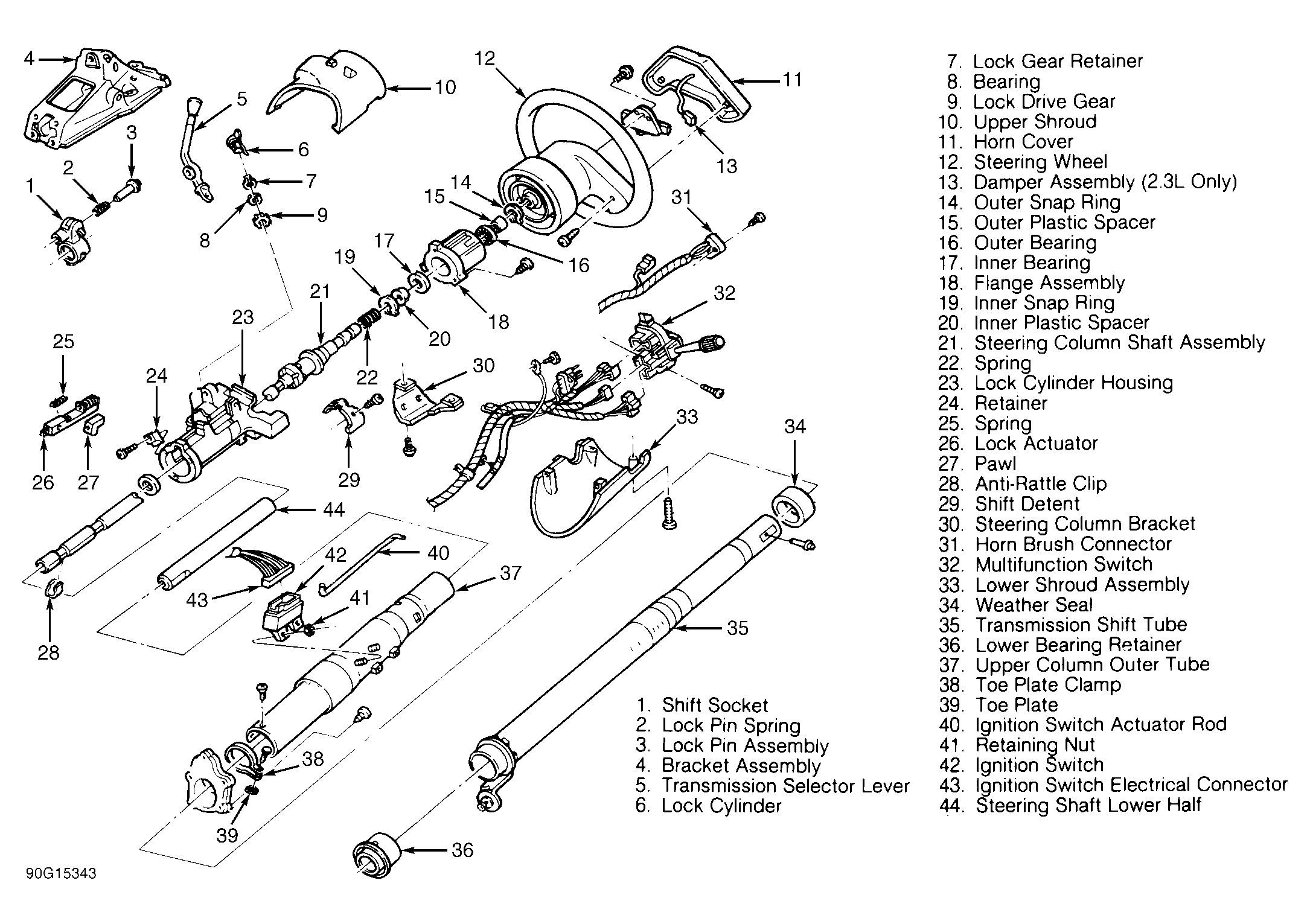

Fig 5: Exploded View of Tilt Steering Column (Bronco II & Ranger - With A/T)

Courtesy of FORD MOTOR CO.

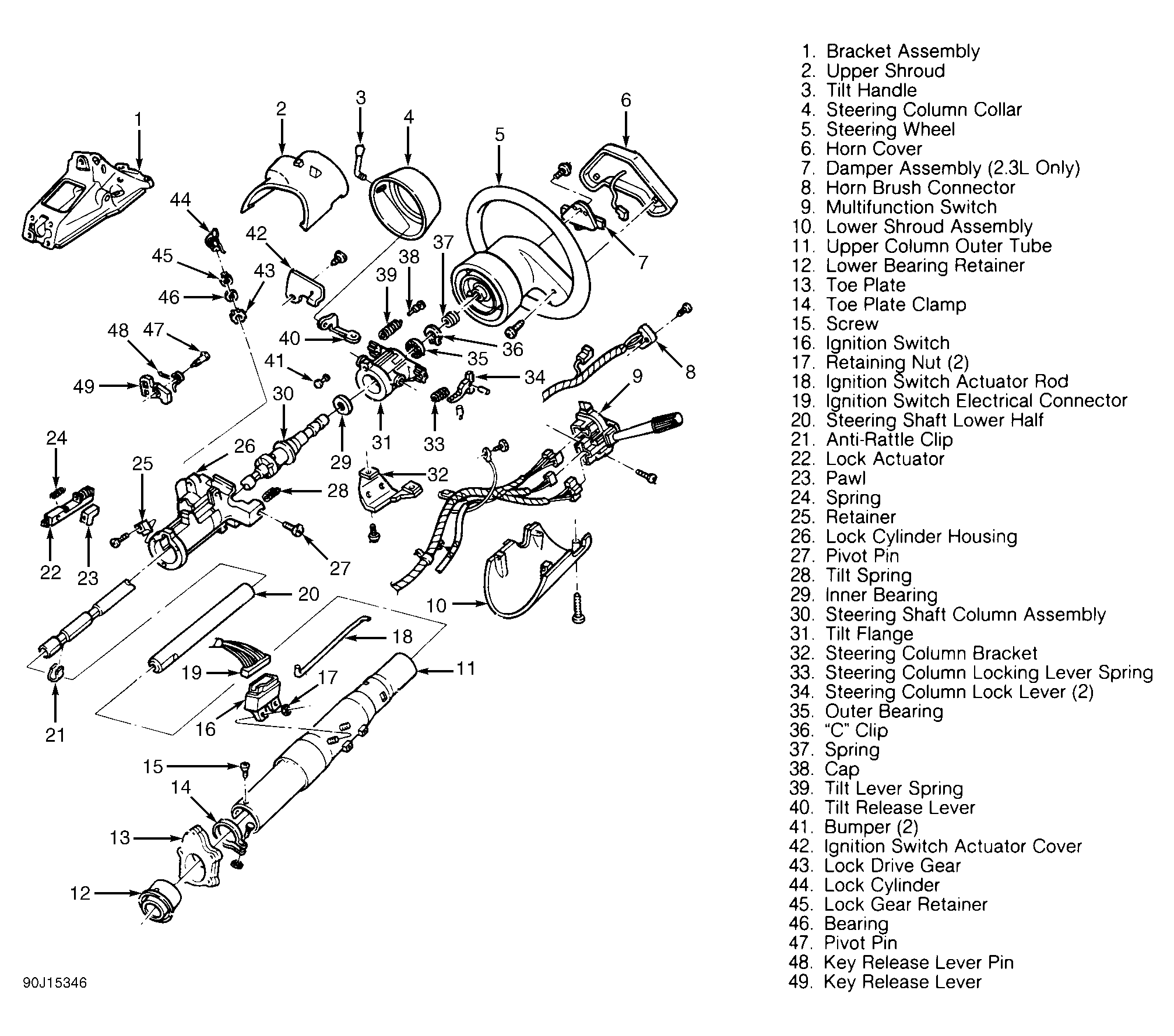

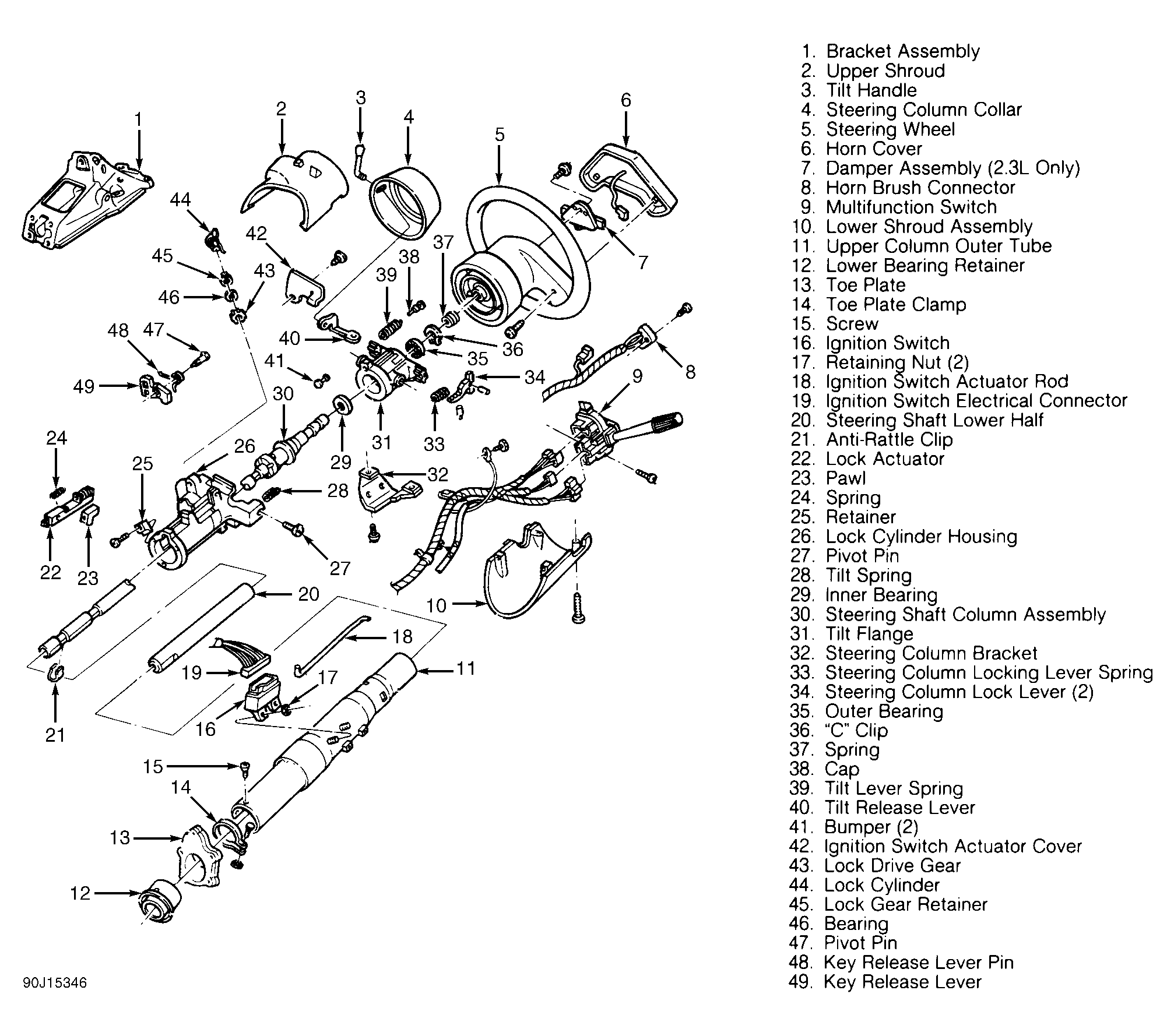

Fig 6: Exploded View of Tilt Steering Column (Bronco II & Ranger - With M/T)

Courtesy of FORD MOTOR CO.
