Glow Plug Controller Description

The power relay is mounted on top of the solid-state controller circuit board. The complete assembly is mounted on the rear of the intake manifold. See Fig 1.

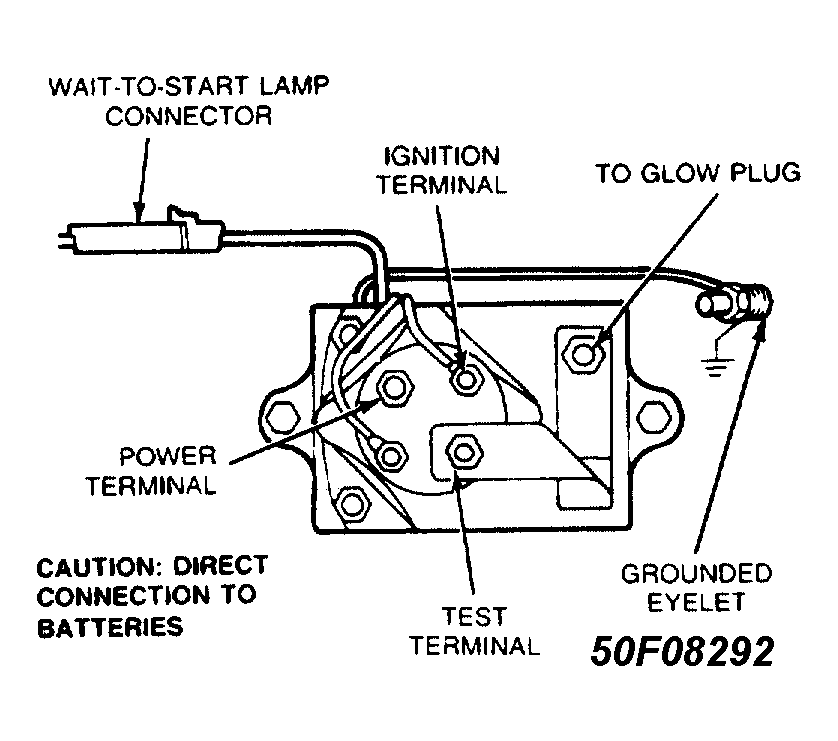

Fig 1: Solid State Glow Plug Controller

Courtesy of FORD MOTOR CO.
