Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| A/C Controller | On right side of dash, behind glove box. | |
| Electronic Engine Control (EEC) Module | ||
| View From Connector Side | Under left of dash, above clutch pedal. See Figure . | |
| View From Behind Dash | Under left of dash, above clutch pedal. See Figure . | |
| Low Fuel Warning Module | Behind center of console graphic display. | |
| Passive Restraint System Module | Behind instrument panel, to right of steering column. | |

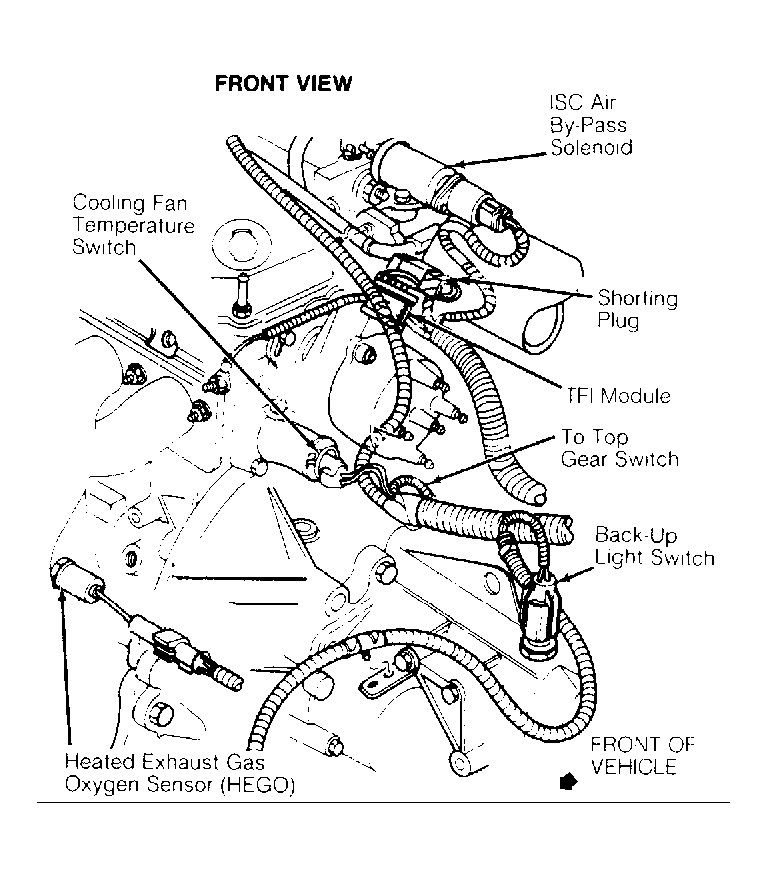

| TFI Module | On side of distributor. See Figure & Figure . | |
