Abs Light Check

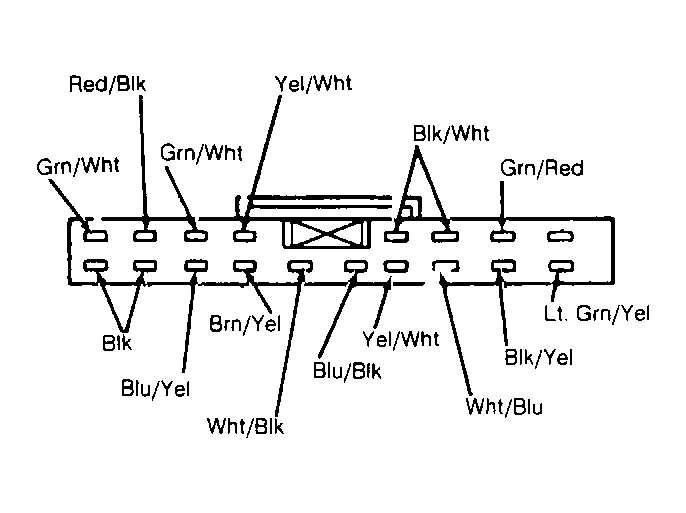

  1. Ground Blue/Yellow wire at instrument cluster 18-pin connector. Instrument cluster 18-pin connector is located on right side of dash, near steering column. See Figure .
  2. If ABS warning light comes on, repair Blue/Yellow wire between instrument cluster and ABS brake control unit. If ABS warning light does not come on, replace light.
