2.2L Wiring Diagrams

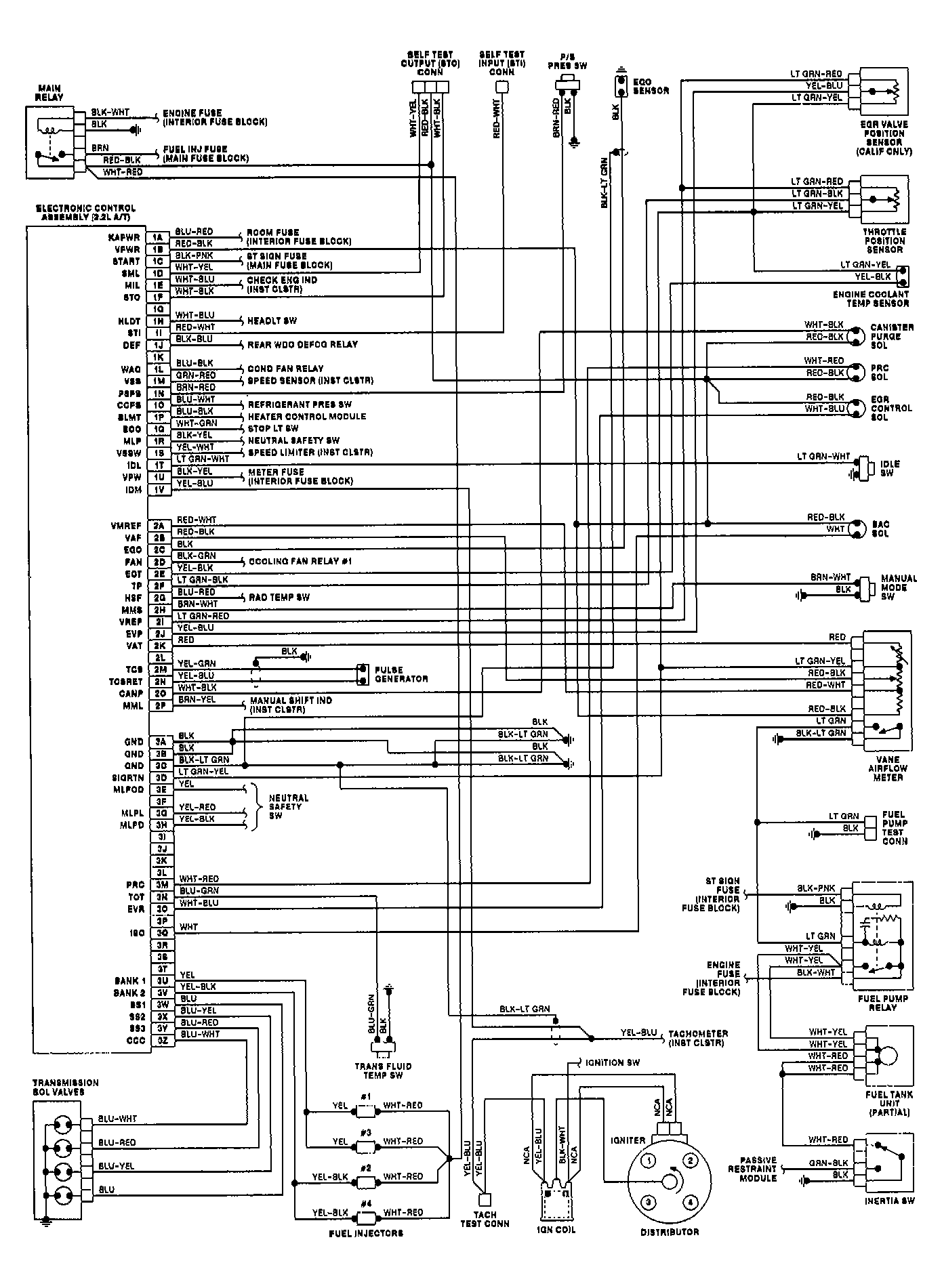

Fig 1: 2.2L Probe (Non-Turbo) EEC Wiring Diagram (Auto. Trans.)
G90C13658

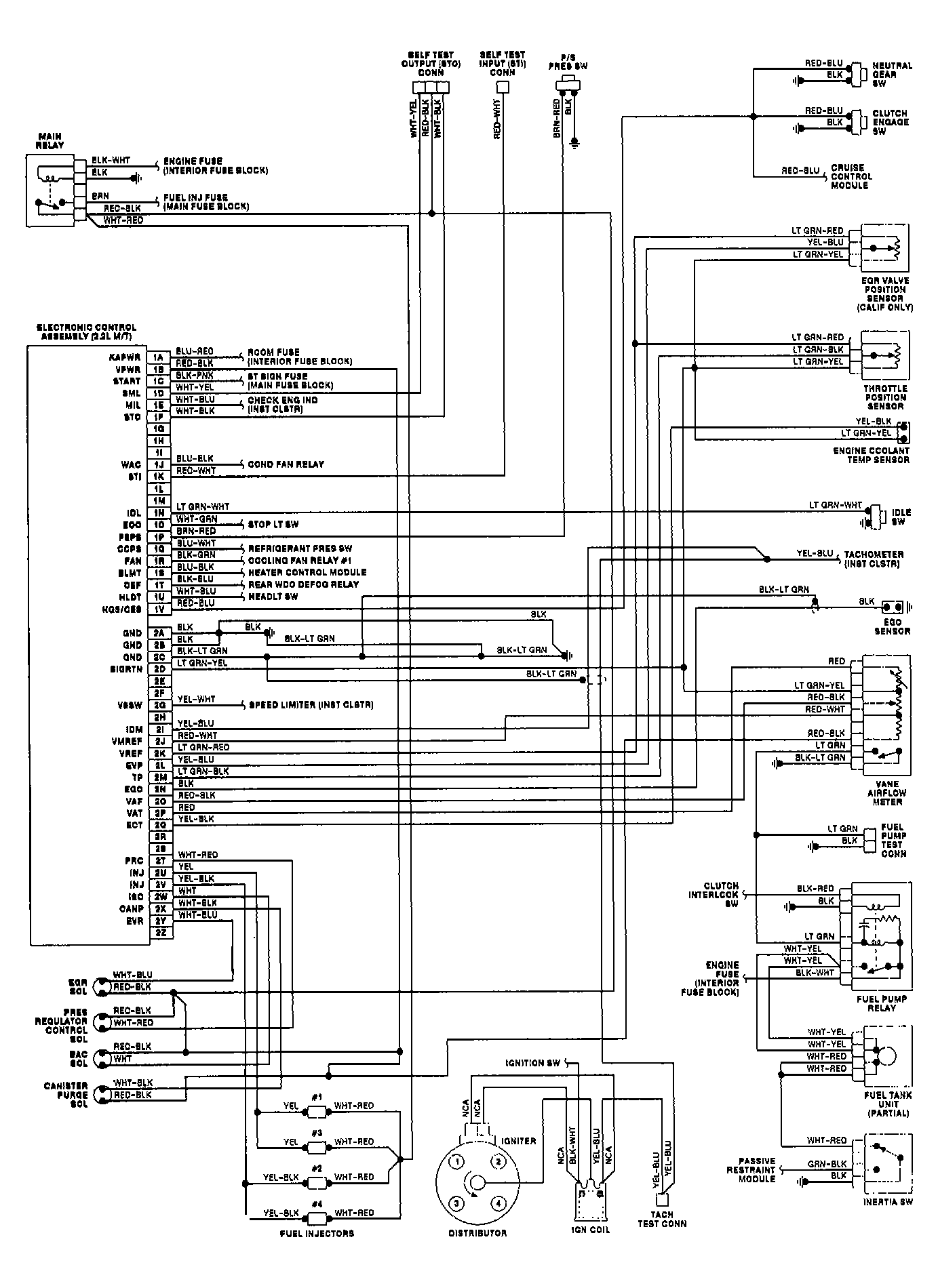

Fig 2: 2.2L Probe (Non-Turbo) EEC Wiring Diagram (Man. Trans.)
G90D13659

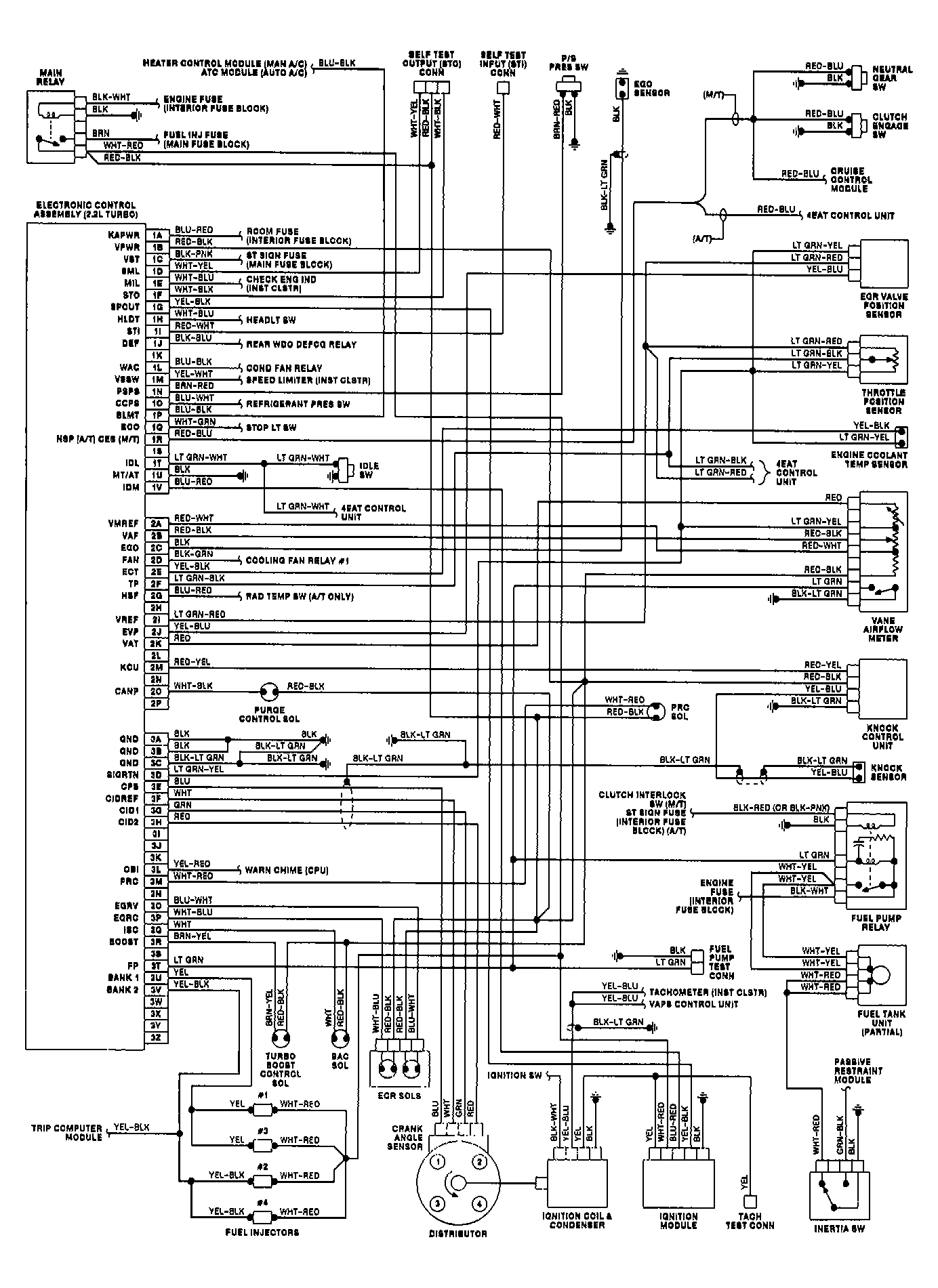

Fig 3: 2.2L Probe Turbo EEC Wiring Diagram
G90G13660
