Electronic Transmission Repair Process Chart (91-6-4)

Publication date: 1991-03-01
Reference number: 91-6-4

ELECTRONIC TRANSMISSION REPAIR PROCESS CHART

TECHNICAL SERVICE BULLETIN

Reference Number(s): 91-6-4, Date of Issue: March, 1991

APPLICATION

1989-91 Ford Econoline, Escort, F-Series, Probe & Taurus; 1991 Lincoln Continental; Mercury Capri, Sable, Taurus; 1990-91 Ford Bronco

SUBJECT

Automatic Transmission Diagnostic and Repair Chart

REFERENCE

Ford Motor Co., Technical Service Bulletin, No. 91-6-4, March, 1991

SERVICE INFORMATION

An Electronic Transmission Repair Process Chart has been developed for service use on 1989-91 Ford Econoline, Escort, F-Series, Probe, Taurus; 1991 Lincoln Continental; Mercury Capri, Sable, Taurus and 1990-91 Ford Bronco vehicles. The addition of electronic controls to automatic transmissions (E40D, AXODE, 4EAT, etc.) adds to the complexity of diagnosis and repair. Avoiding repeat repairs depends on properly identifying all the root causes of the concern.

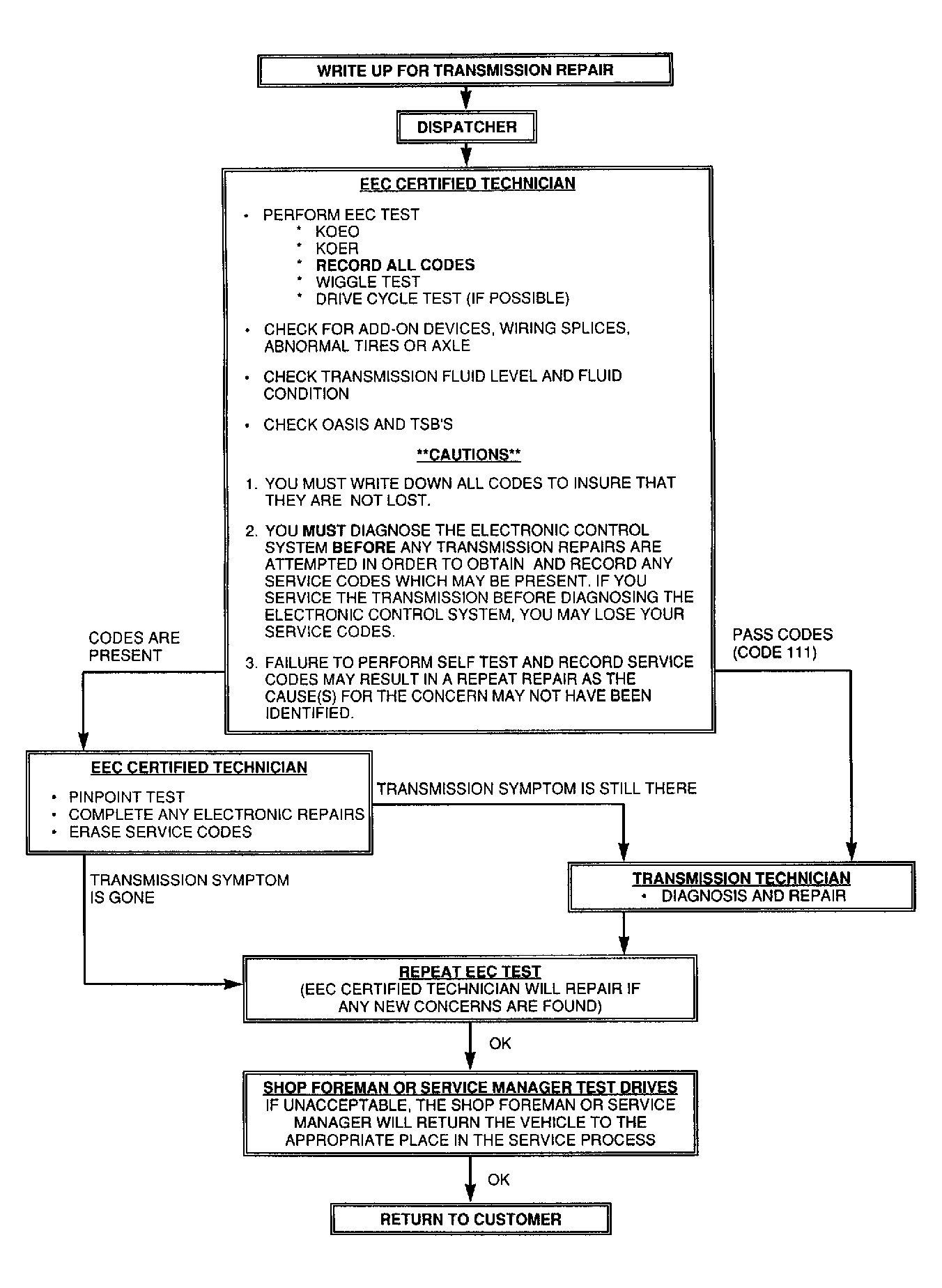

Use the Electronic Transmission Repair Process Chart shown in Fig 1 , to assist you in developing a routing system for electronically controlled transmission repairs. Using this routing chart will help in determining the "root cause" for the concern and repeat repairs.

Fig 1: Electronic Transmission Repair Process
