Test A1 - Ignition Diagnostic Monitor (IDM): Notes
NOTE:
Enter this test only when Code 01 is displayed during QUICK TEST procedures. This test is intended to diagnose only the following: spark (EEC controlled) and electrical circuits (PIP, ignition ground and VPWR).

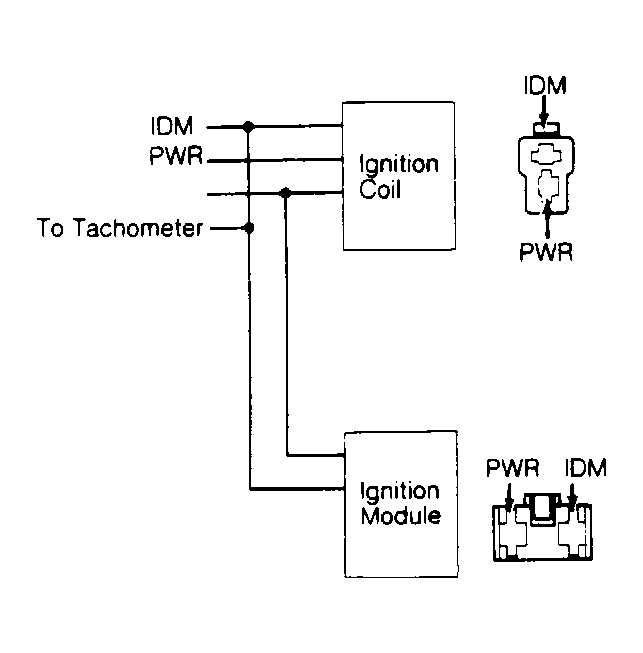

IDM CIRCUIT PIN IDENTIFICATION
| Circuit | Breakout Box Pin | ECA Pin | ||
|---|---|---|---|---|
| 2.2L Non-Turbo | ||||
| ATX | ||||
| IDM | 50, 4 | 1V | ||
| VPWR | 37, 57 | 1B | ||
| MTX | ||||
| IDM | 50, 4 | 2I | ||
| VPWR | 37, 57 | 1B | ||
| 2.2L Turbo ATX & MTX | ||||
| GND | 39, 40, 44 | 3A | ||
| IDM | 50, 4 | 1V | ||
| SPOUT | 36 | 1G | ||
| VPWR | 37, 57 | 1B | ||
