Repair and Diagnosis: Electrical: Starter: Wiring Diagram

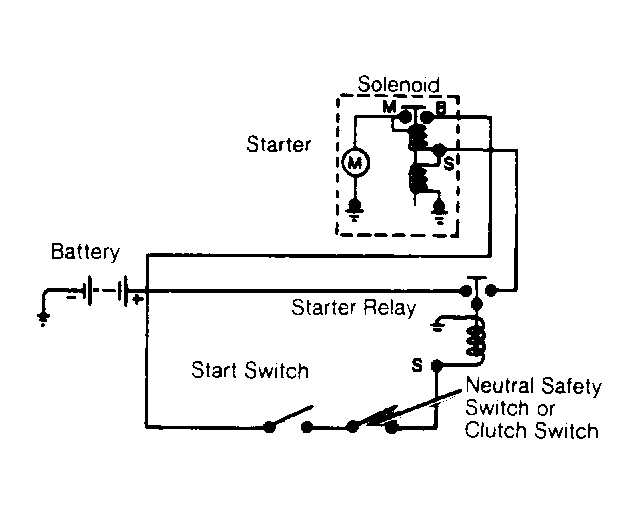

Fig 1: Starter System Wiring Schematic (Permanent Magnet)

Courtesy of FORD MOTOR CO.

STARTER MOTOR SPECIFICATIONS

Application		Specification
Brush Length
Original		.45" (11.4 mm)
Service Limit		.25" (6.4 mm)
Brush Spring Tension		80 oz. (2.3 kg)
Load Test Current Draw
Permanent Magnet		150-210 Amps
Positive Engagement		150-250 Amps
No-Load Test Current Draw		80 Amps
