KB - DC Motor Idle Speed Control/Idle Tracking Switch/TPS
>>
KB23 - KB25
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
KB23 - KB25

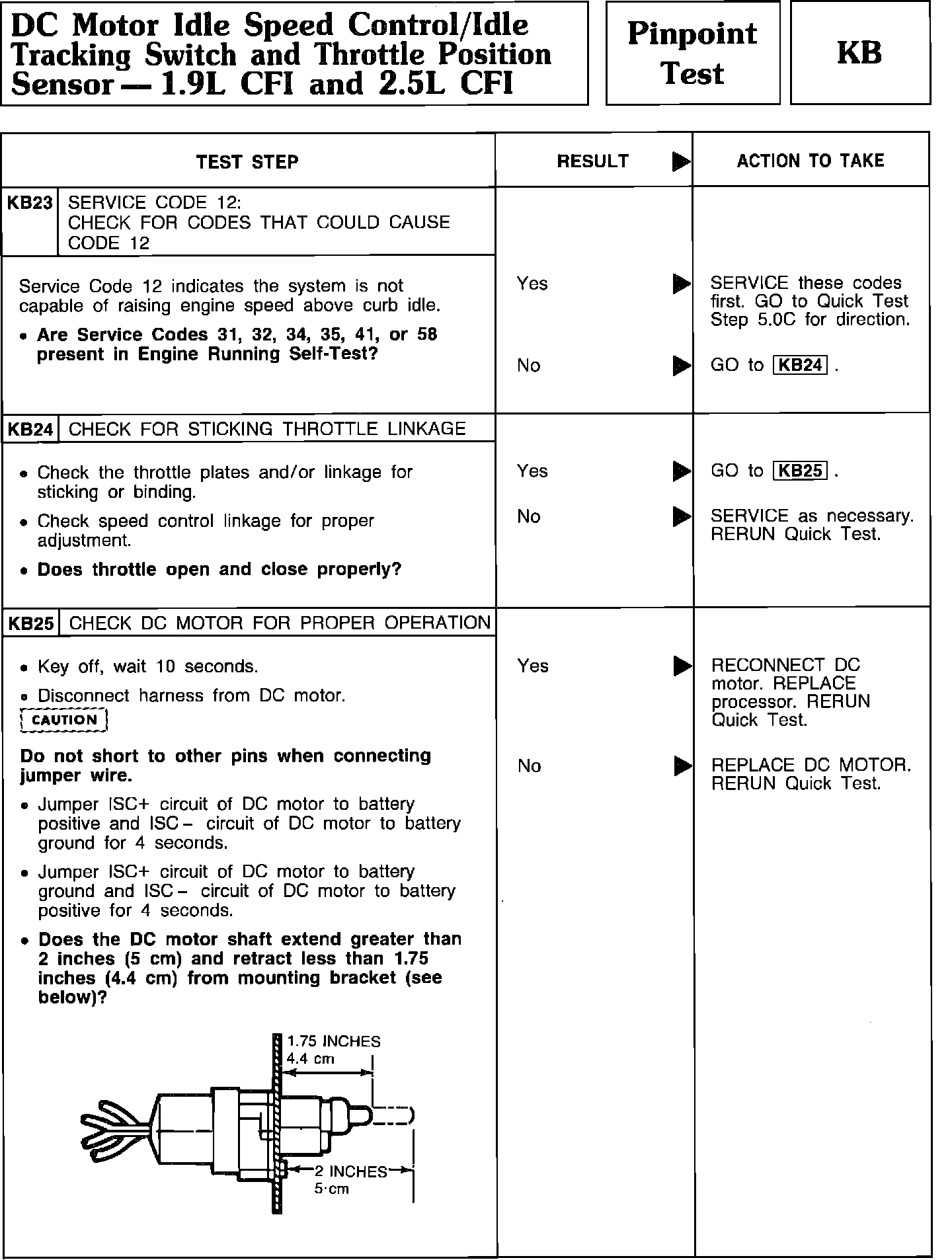

Pinpoint Test KB23 Thru KB25 - DC Motor Idle Speed Control/Idle Tracking Switch/TPS:
