KB - DC Motor Idle Speed Control/Idle Tracking Switch/TPS
>>
KB7 - KB9
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
KB7 - KB9

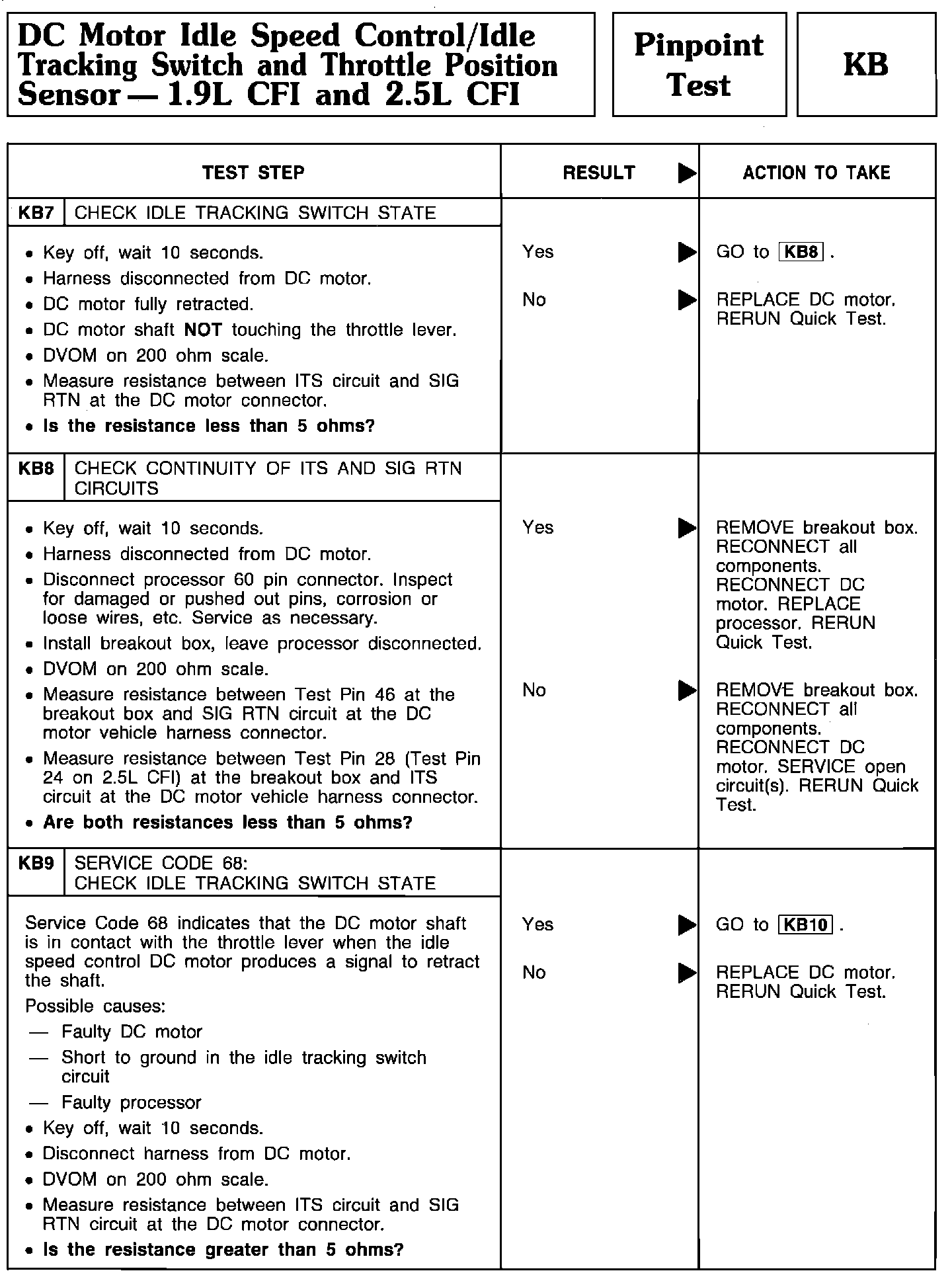

Pinpoint Test KB7 Thru KB9 - DC Motor Idle Speed Control/Idle Tracking Switch/TPS:
