LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Ford
>>
1990
>>
Taurus L4-153 2.5L HSC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Scan Tool Testing and Procedures
>>
Normal Scan Data Values (Includes PIDs)
>>
Diagnostic Reference Values
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

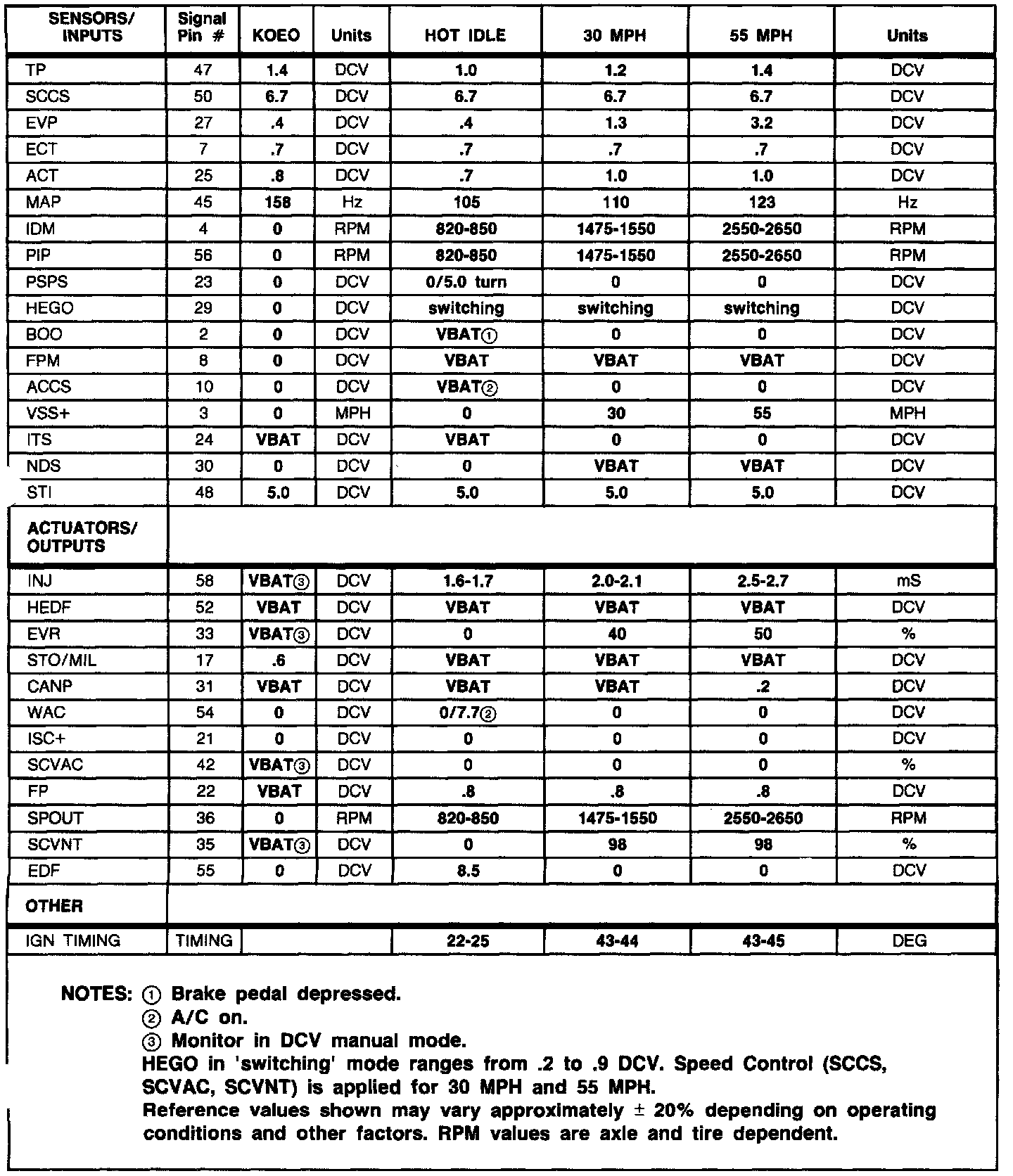

Diagnostic Reference Values
Diagnostic Reference Values:
