Interior Fuse Panel Identification: Notes

Fuse panel is located to left of steering column under instrument panel. To expose fuse panel, pull release bar up with right hand and pull panel down with left hand.

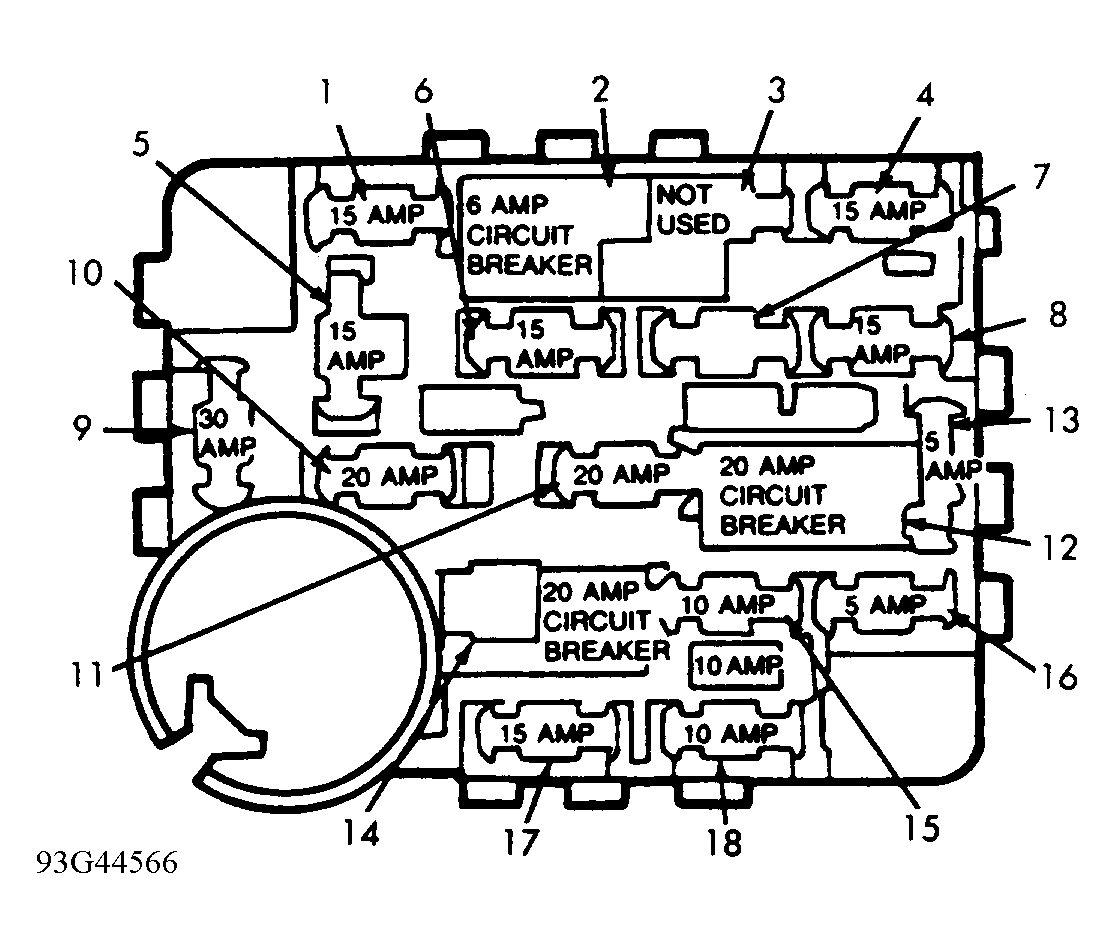

Fig 1: Interior Fuse Panel Identification
G93G44566Courtesy of FORD MOTOR CO.
