A/T Technical Data

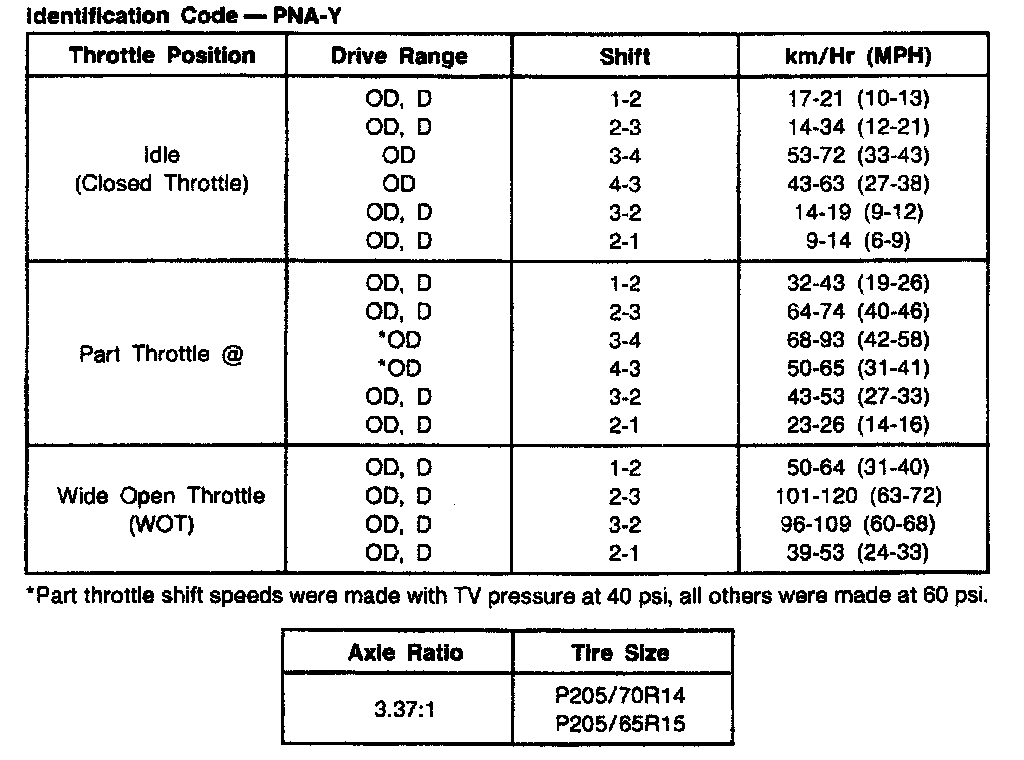

AXOD 4-spd A/T, Shift Speeds (3.0L Taurus/Sable):

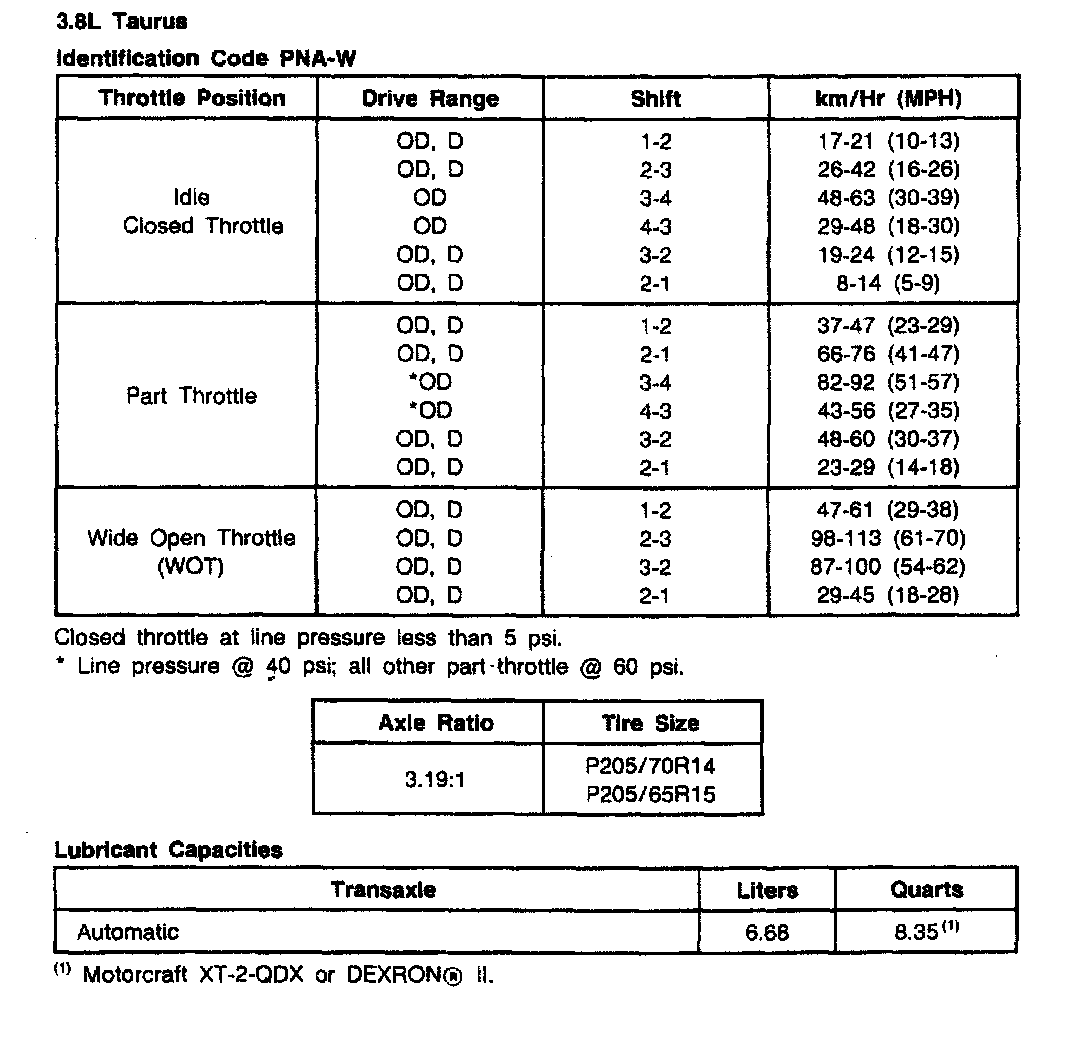

AXOD 4-spd A/T, Shift Speeds (3.8L Taurus):

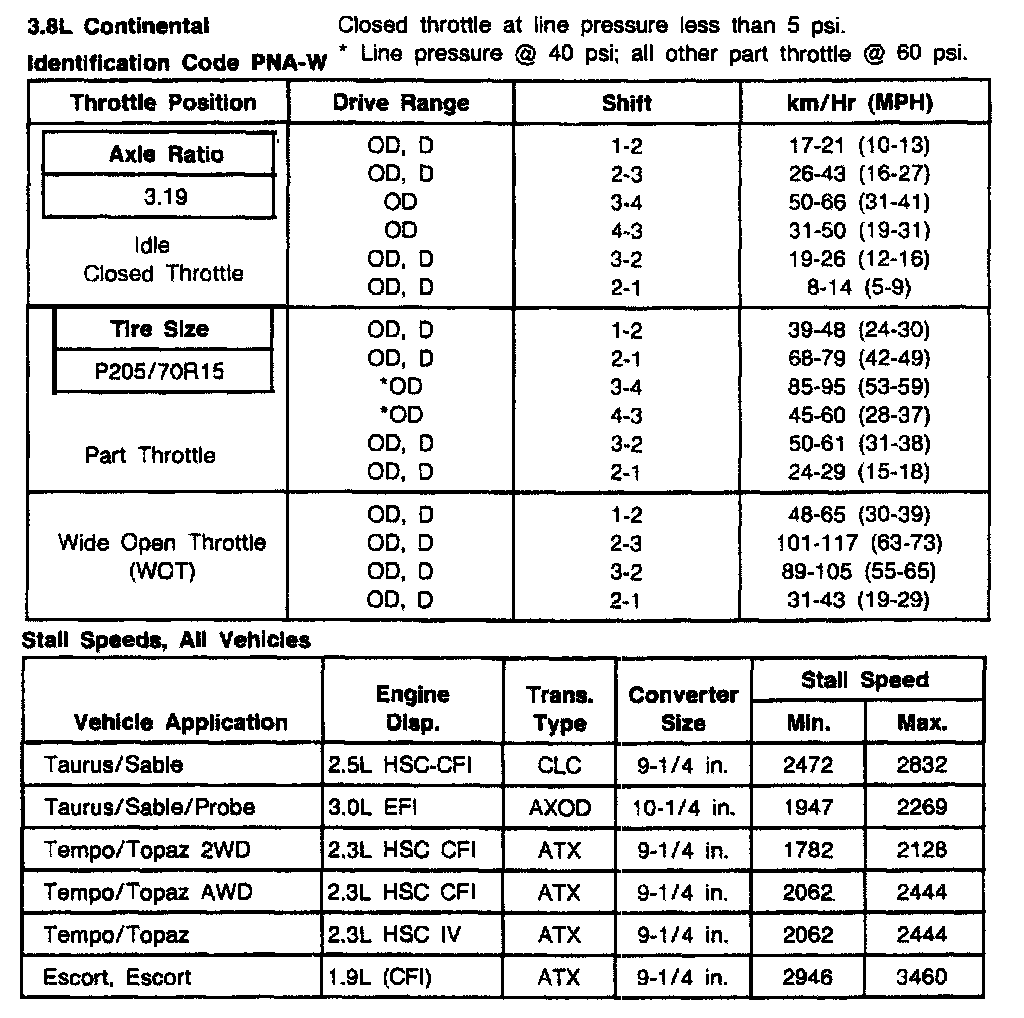

AXOD 4-spd A/T, Shift Speeds (3.8L Continental):

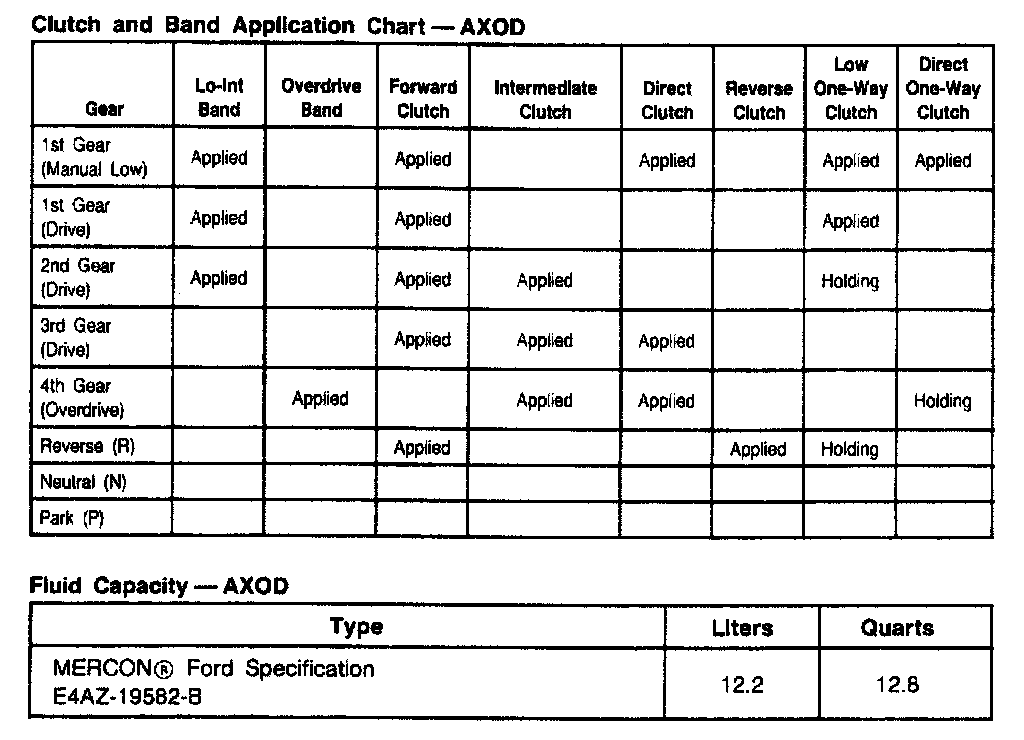

AXOD 4-spd A/T, Clutch And Band Application:
