Cable

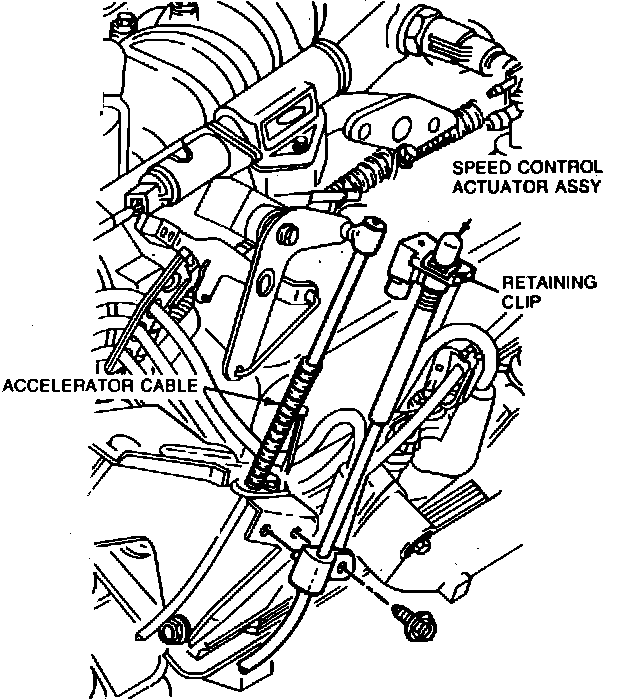

Fig. 11 Actuator Cable:




Fig. 12 Actuator Cable. Sable & Taurus W/2.5L/4-153 Engine:





1. Remove speed control actuator cable retaining clip, Figs. 11 and 12.
2. Push actuator cable through adjuster until slight tension is felt.
3. Insert cable retaining clip and snap into place.
