Integrated Control Relay Module: Service and Repair
Fan, Motor and Integrated Relay Control AssemblyRemoval and Installation
1. Remove radiator sight shield.
2. Disconnect electrical connector. Remove integrated relay control assembly located on radiator support.
3. Disconnect electric fan connector.
4. Unbolt fan/shroud assembly from radiator.
5. Slide cooling fan module clear of radiator hose connector and lift up past radiator.
6. To install, reverse Steps 1 through 5

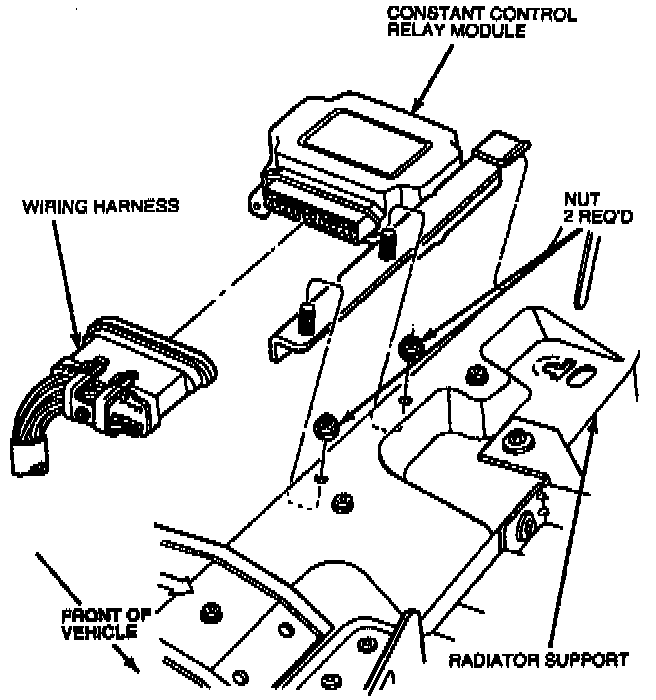

Constant Control Relay Module:
Integrated Relay Control Assembly
Fig. 42 Cooling Fan Motor Replacement:

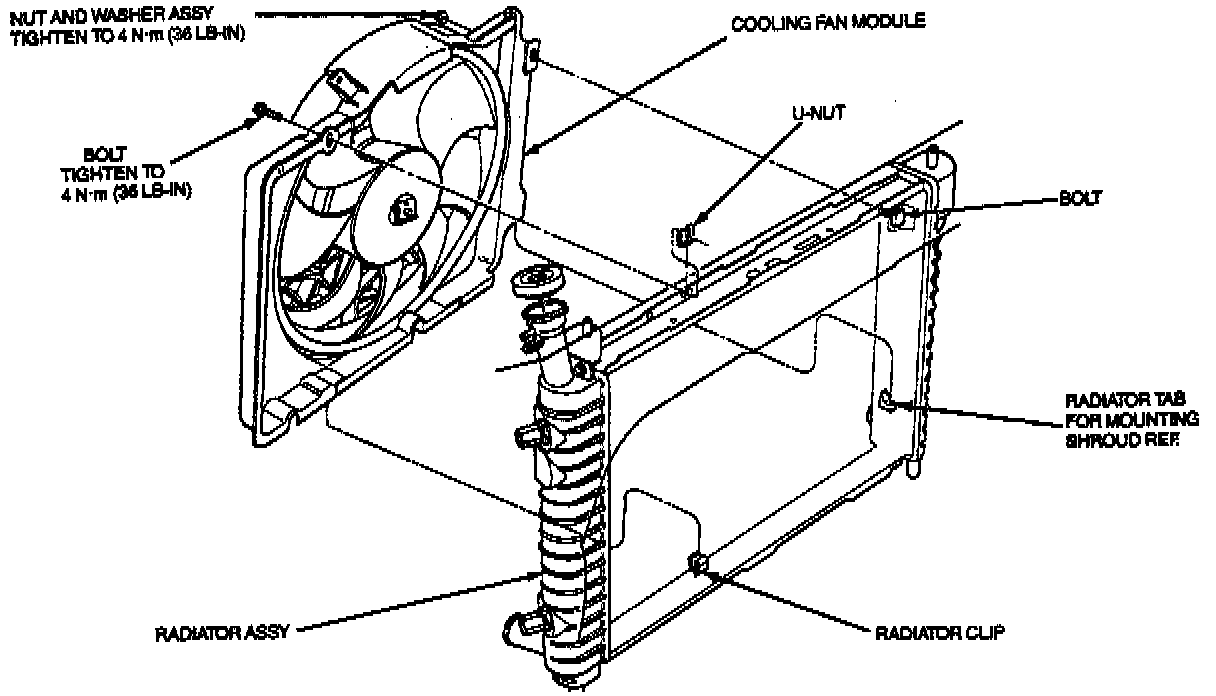

Fan and Motor-3.0L SHO

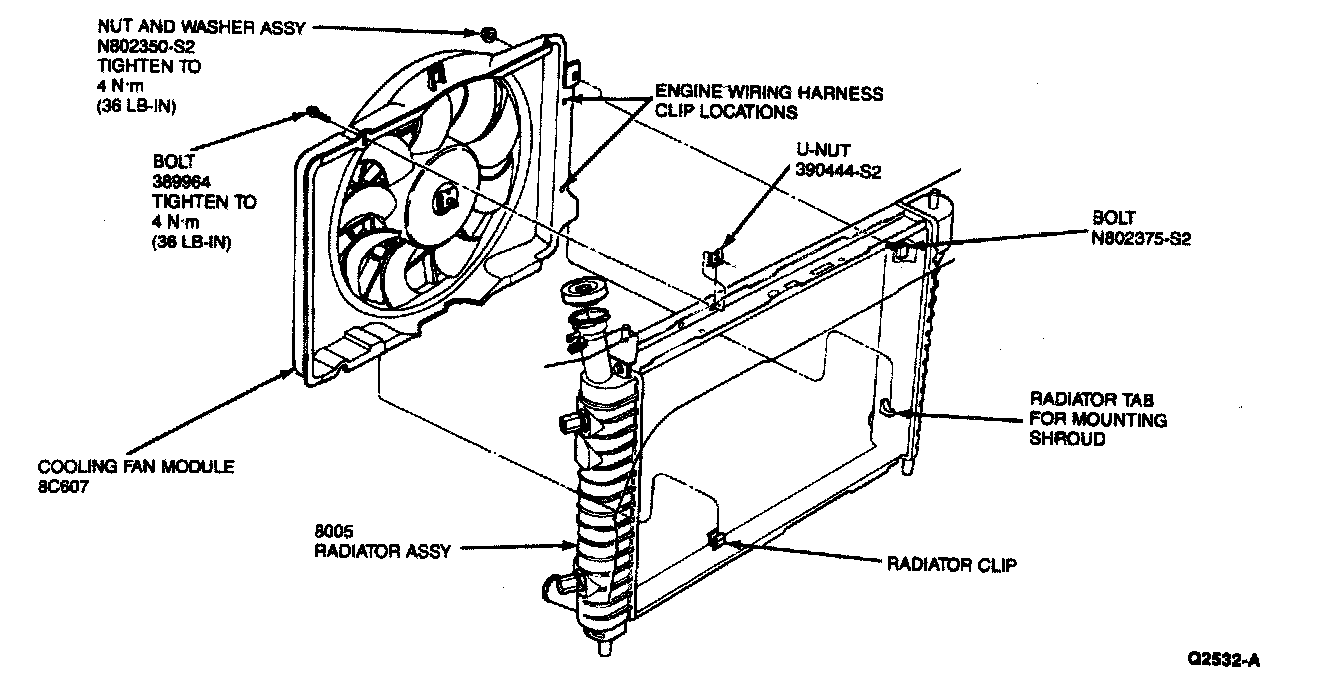

Fan and Motor-3.8L
