Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location |
|---|---|
| A/C-Heater Blower Motor Resistors | Under right dash, on evaporator housing, near blower motor. |
| Blower Motor Resistor | On heater housing, near blower motor. |
| Cooling Fan Test Connectors | In front of left front strut tower. See Figure . |
| EGR Vacuum Regulator Valve | On left strut tower. See Figure . |

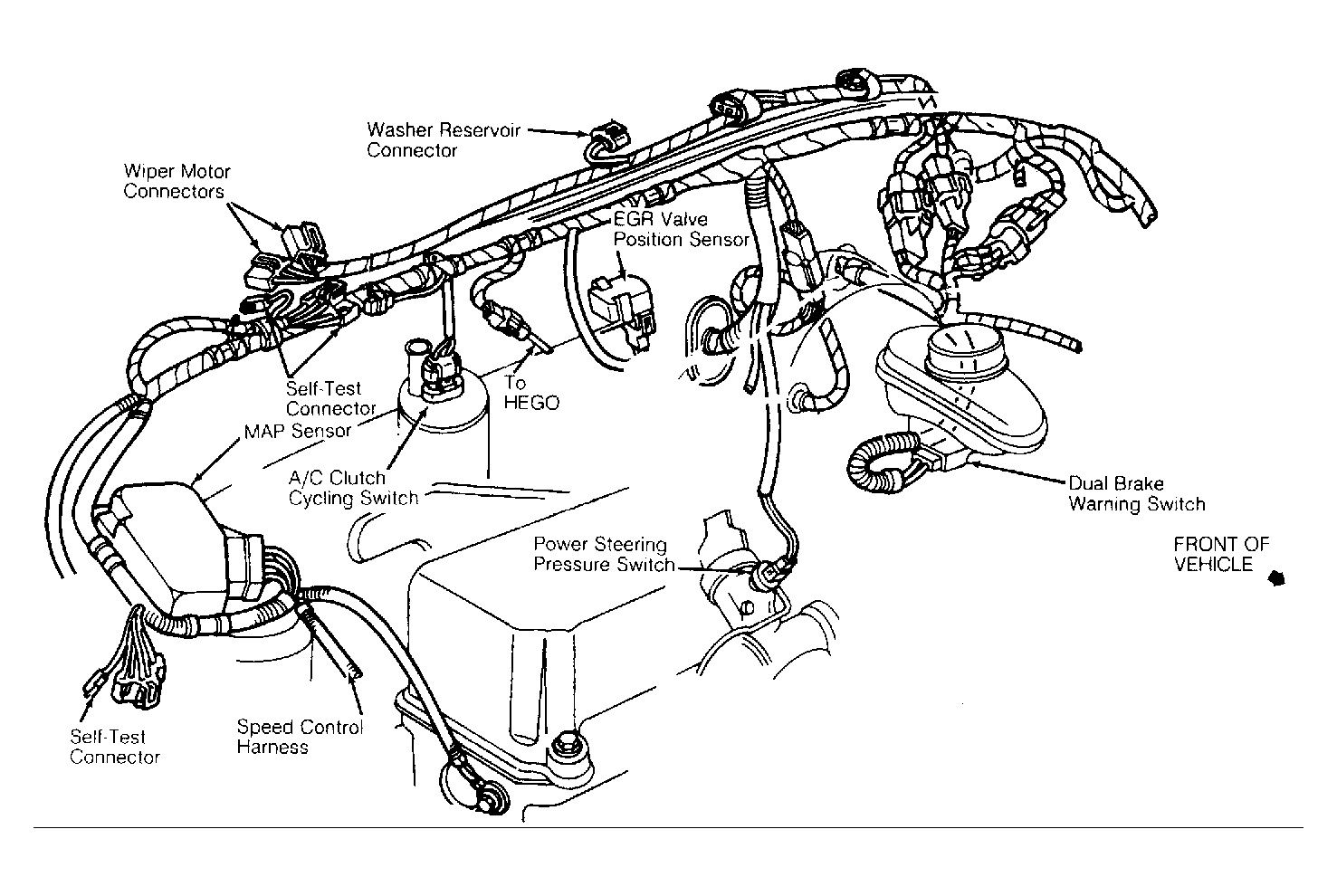

| Self-Test Connector | Right rear firewall below wiper motor or near map sensor. See Figure . |
| Shorting Plug | On left of engine, taped to harness, near TFI module. |
| Speed Control Amplifier | On left side of dash, behind fuse block. |
| Speed Control Servo | On right front strut tower. |
| Start/Ignition Diode | In harness, in front of left front strut tower. |
| Windshield Wiper Interval Governor | Attached to left dash support brace behind fuse block. |
