Quick Check

  1. Quick check method requires Breakout Box (T83L-50-EEC-IV), Adapter (T87P-50-ALA) and a digital multimeter. Quick check procedures are conducted at ECM connector, located in luggage compartment.

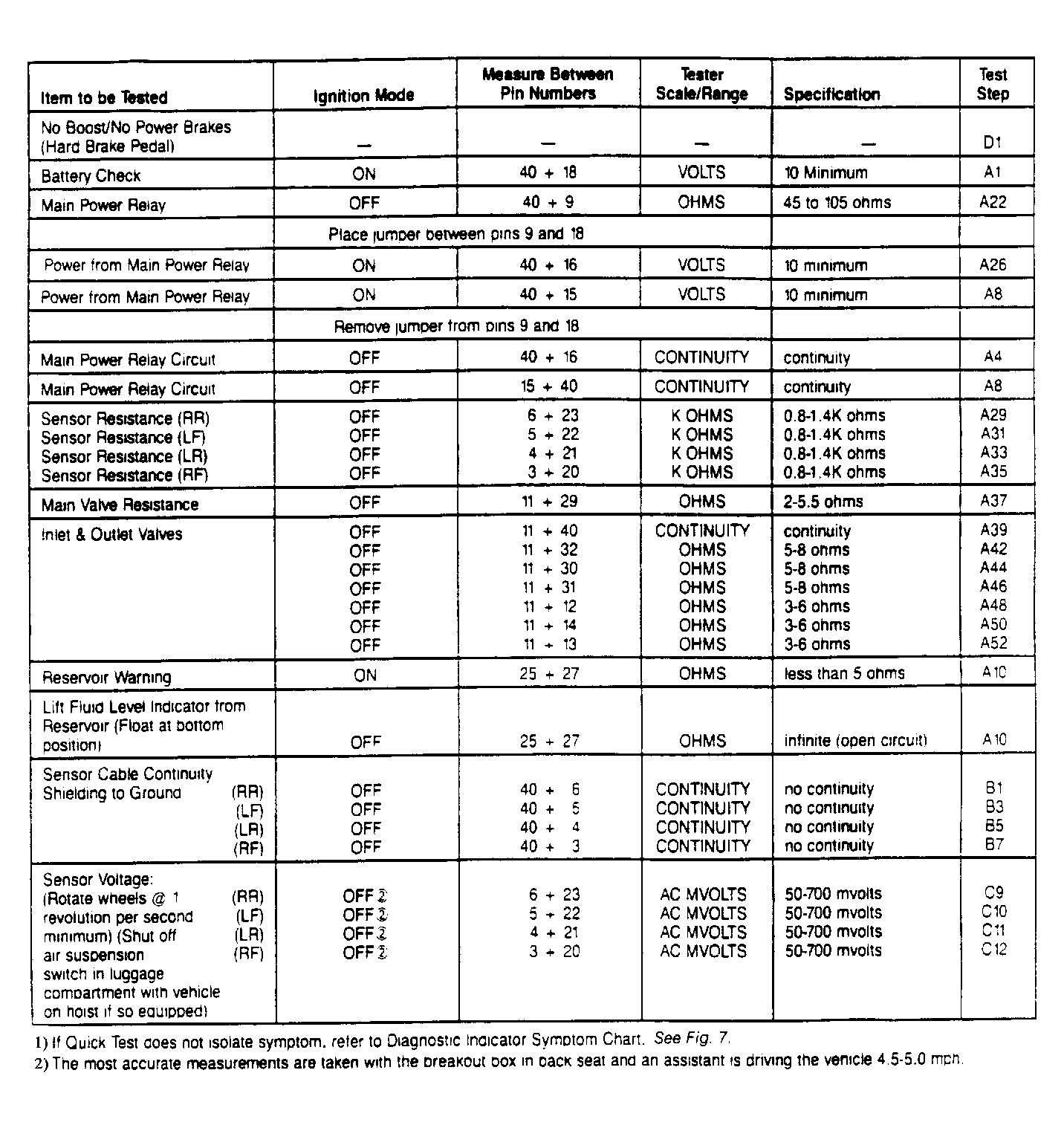

  2. Disconnect connector from ECM. Connect breakout box and adapter to connector. Perform tests as outlined in ABS QUICK CHECK CHART. See Figure . Compare test results with ABS QUICK CHECK CHART. Quick check will not find intermittent faults.
