Diagnostic Tests Using Warning Light Symptom Chart: Notes

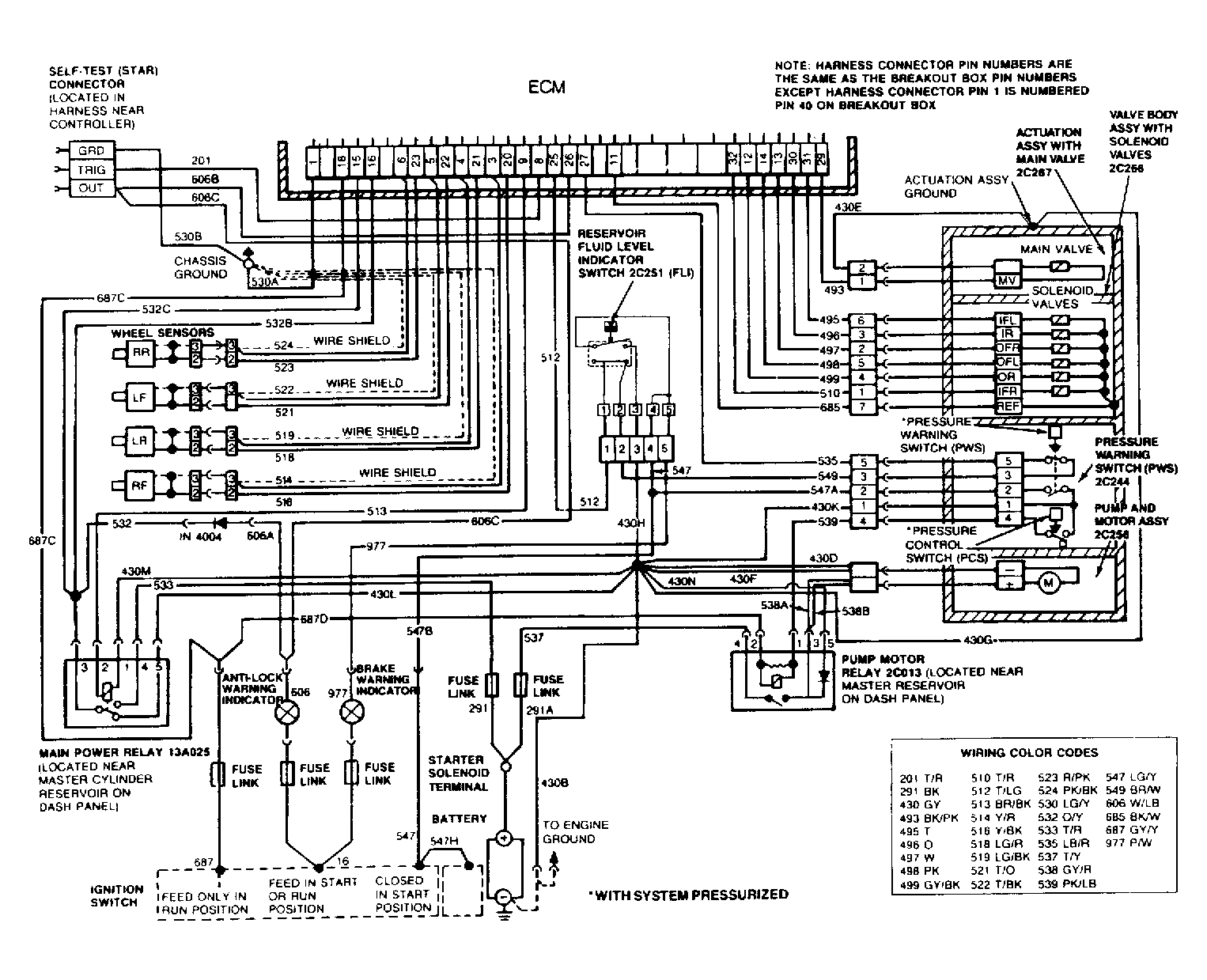

NOTE: Circuit Tests A through J require the use of Breakout Box (T83L-50-EEC-IV) and Adapter (T87P-50-ALA). See Figure for pin number locations and testing points.
