Wiring Diagrams

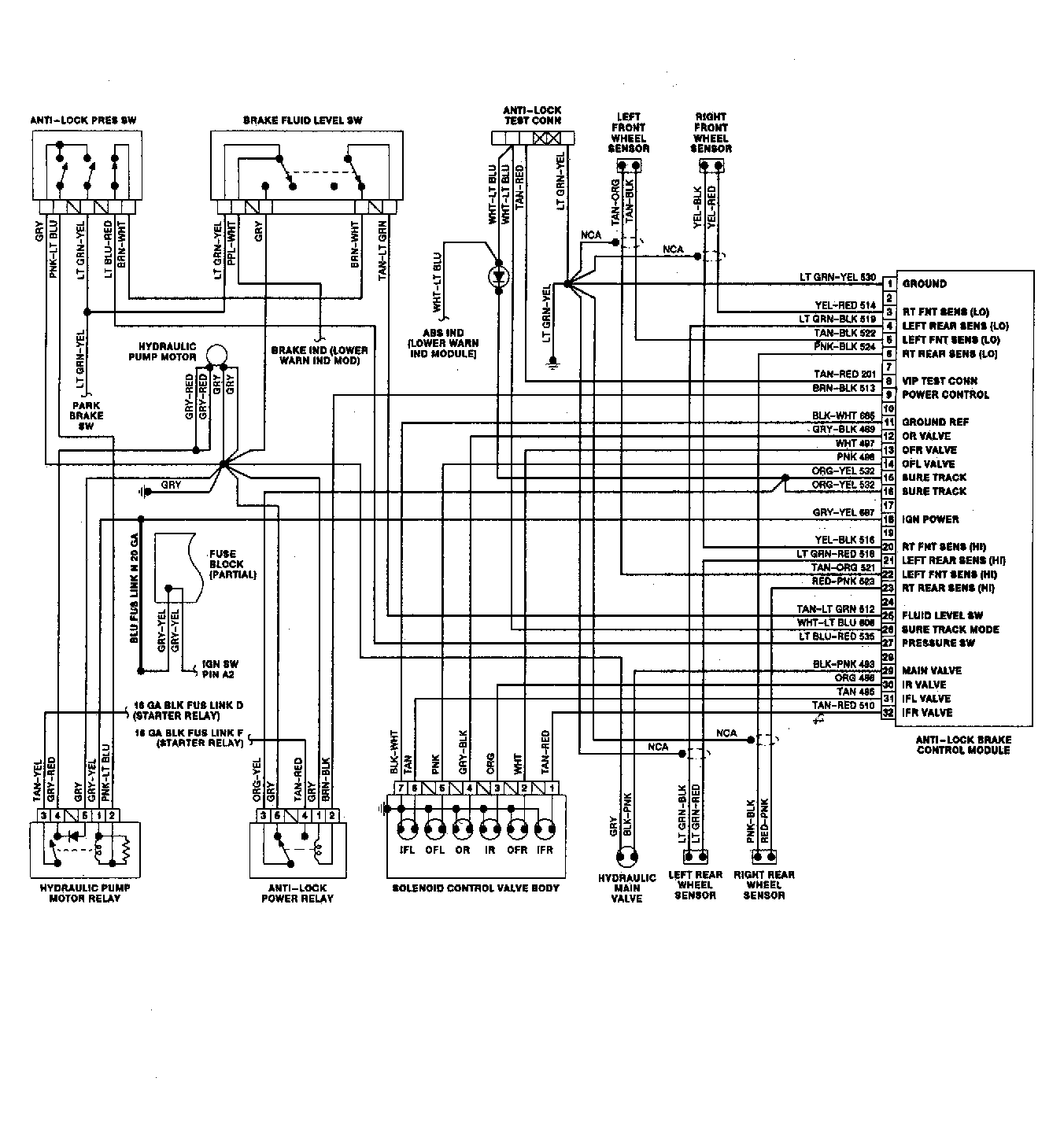

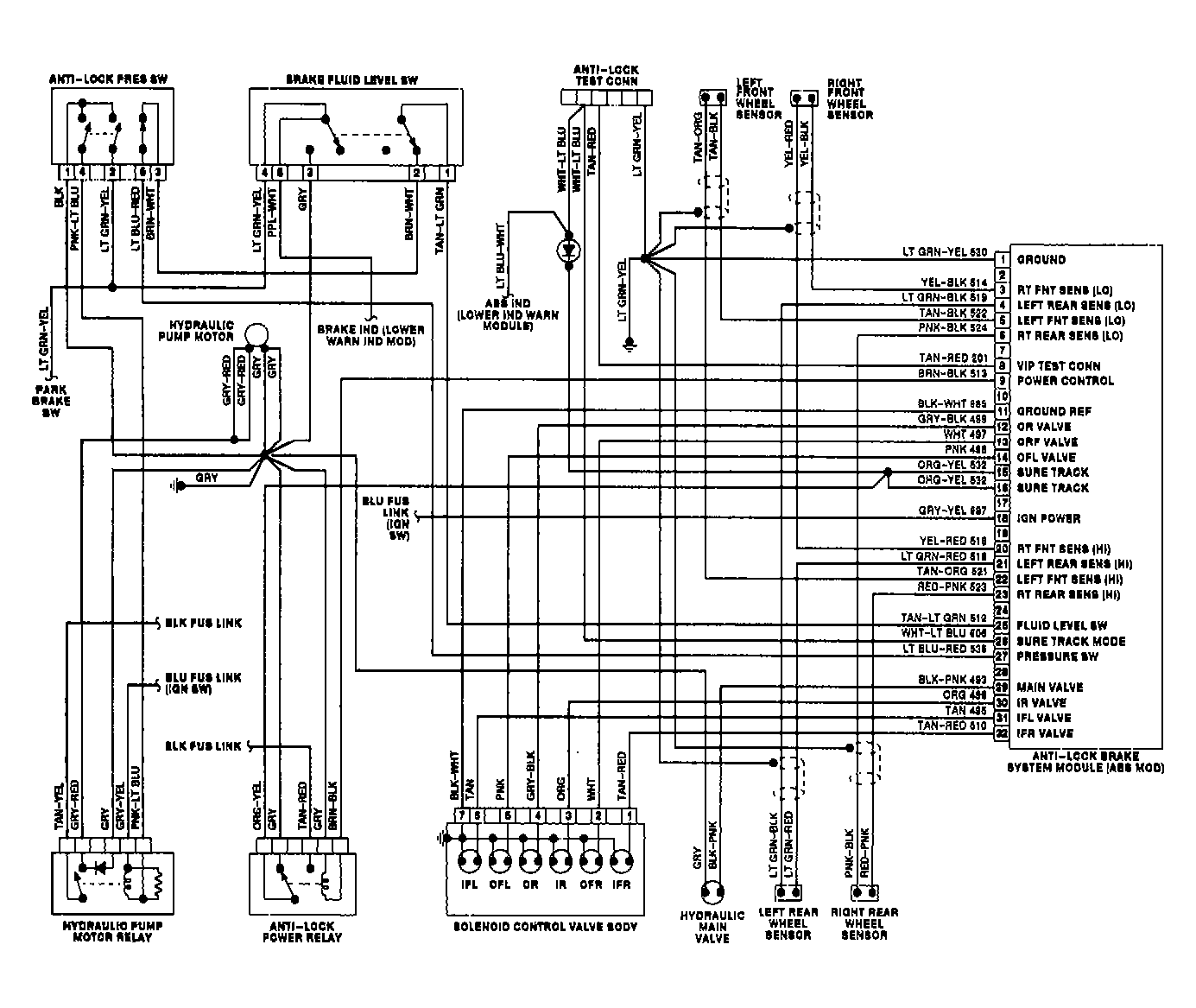

Fig 1: Anti-Lock Brake System Wiring Diagram (1988-89 Continental)

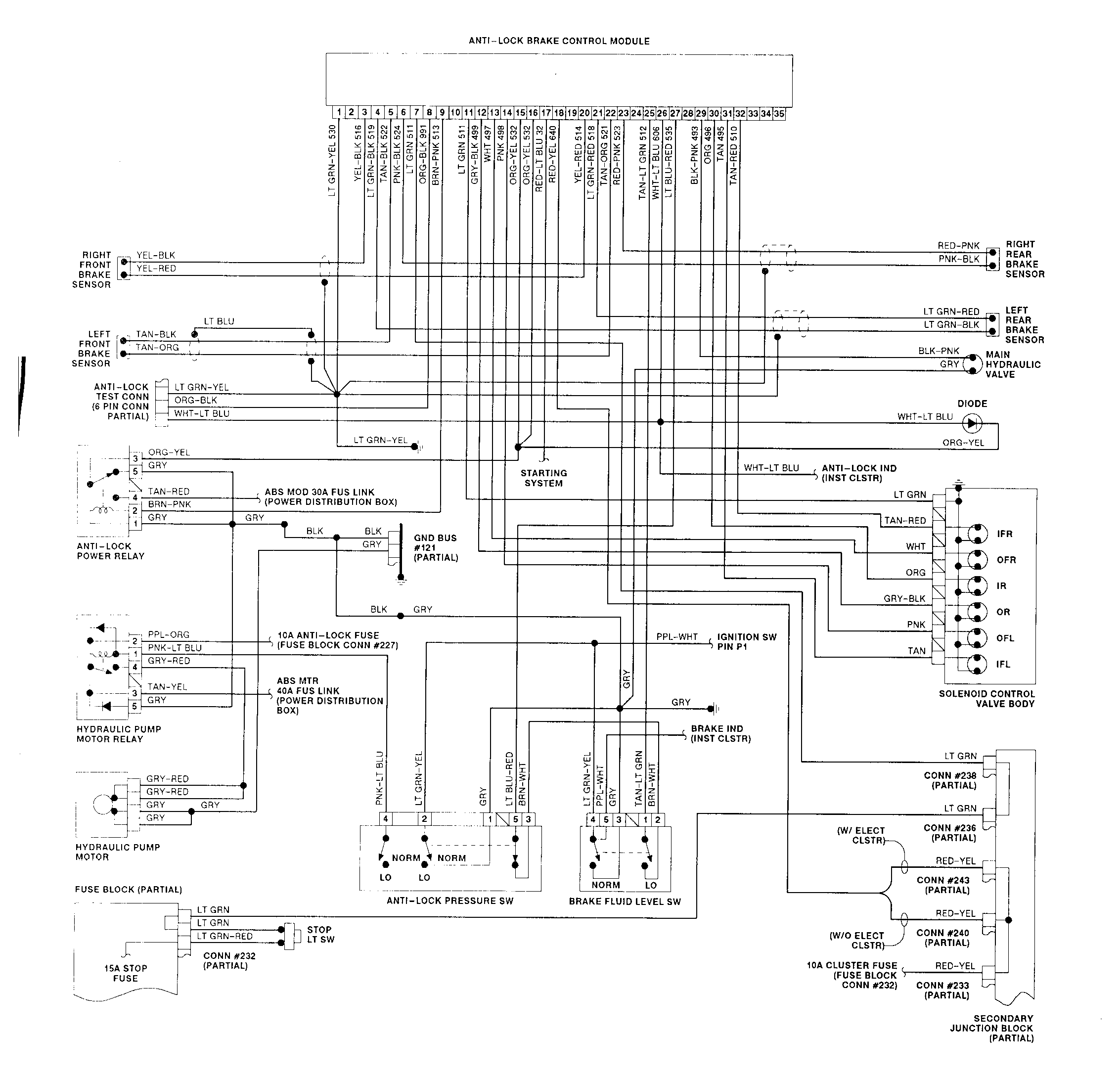

Fig 2: Anti-Lock Brake System Wiring Diagram (1988 Mark VII)

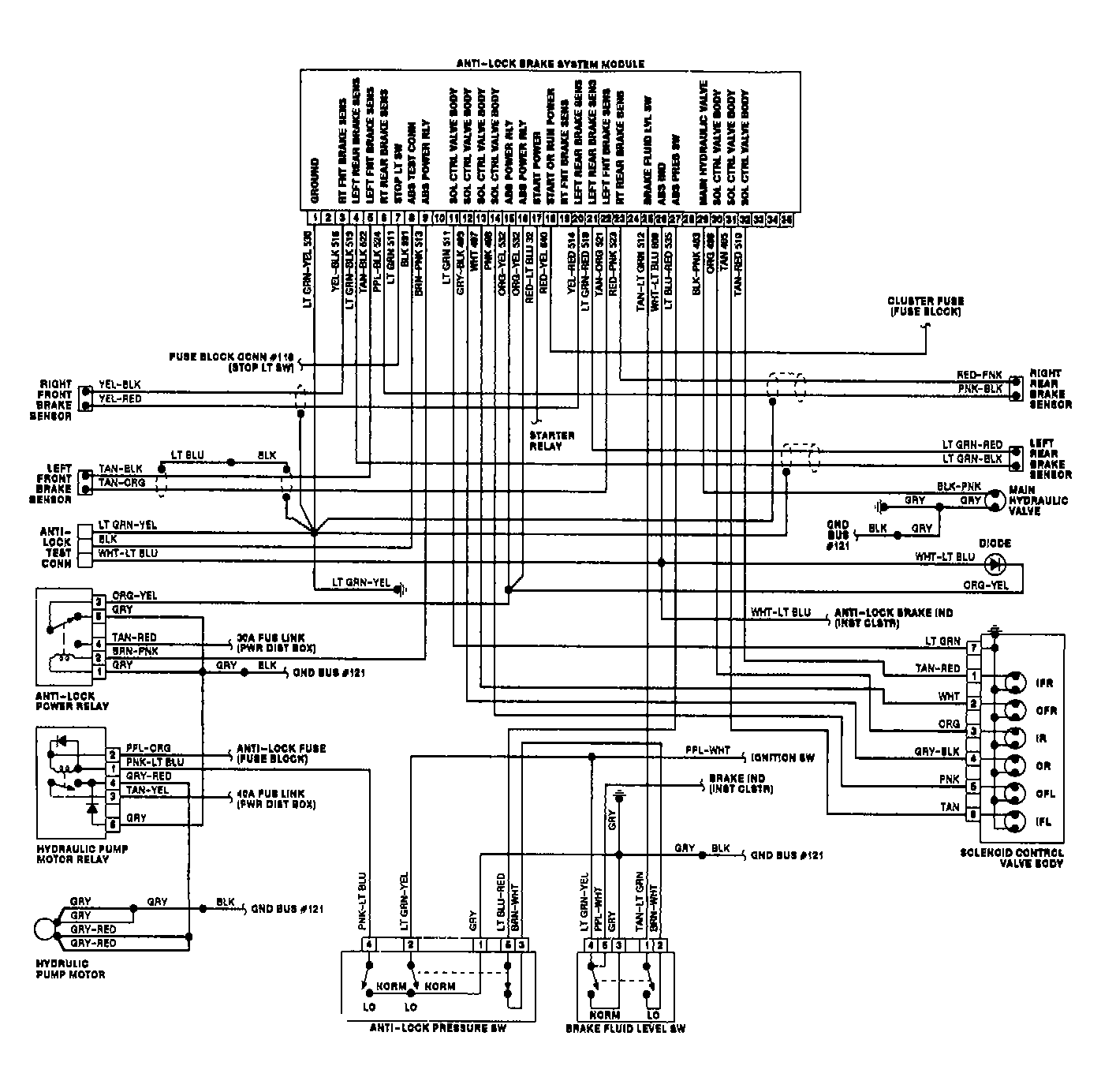

Fig 3: Anti-Lock Brake System Wiring Diagram (Cougar & Thunderbird)

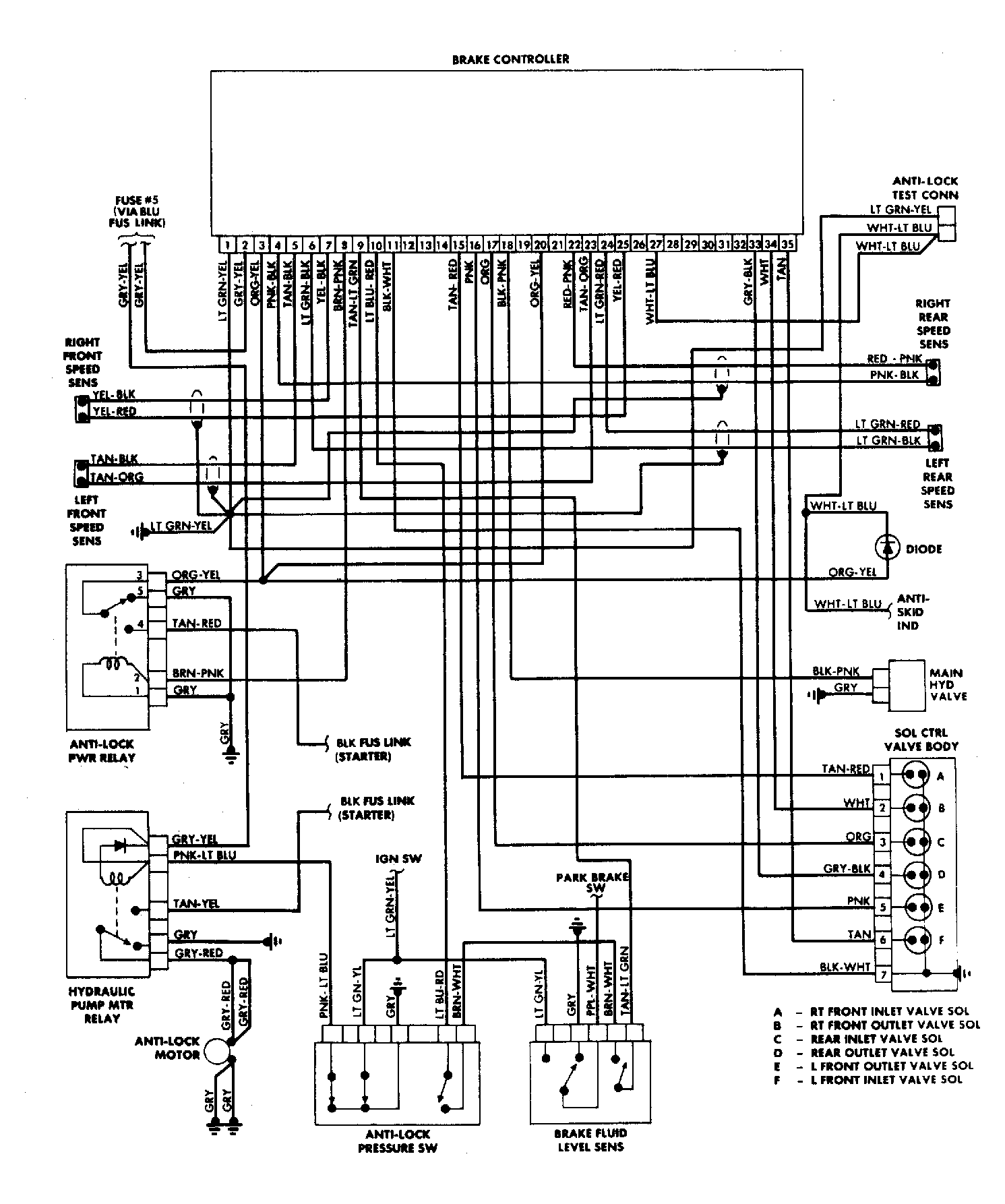

Fig 4: Anti-Lock Brake System Wiring Diagram (1989 Mark VII)

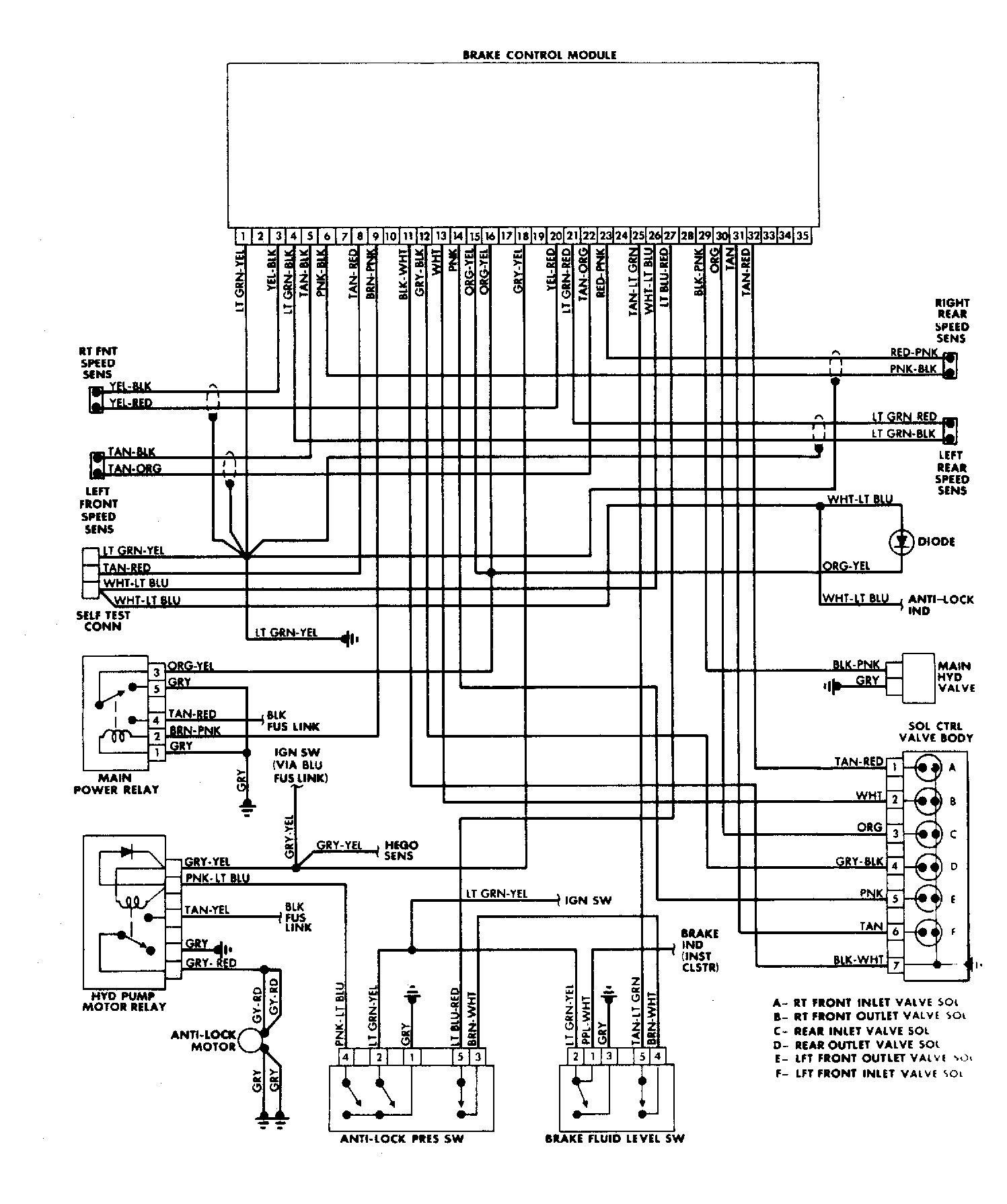

Fig 5: Anti-Lock Brake System Wiring Diagram (Cougar & Thunderbird)

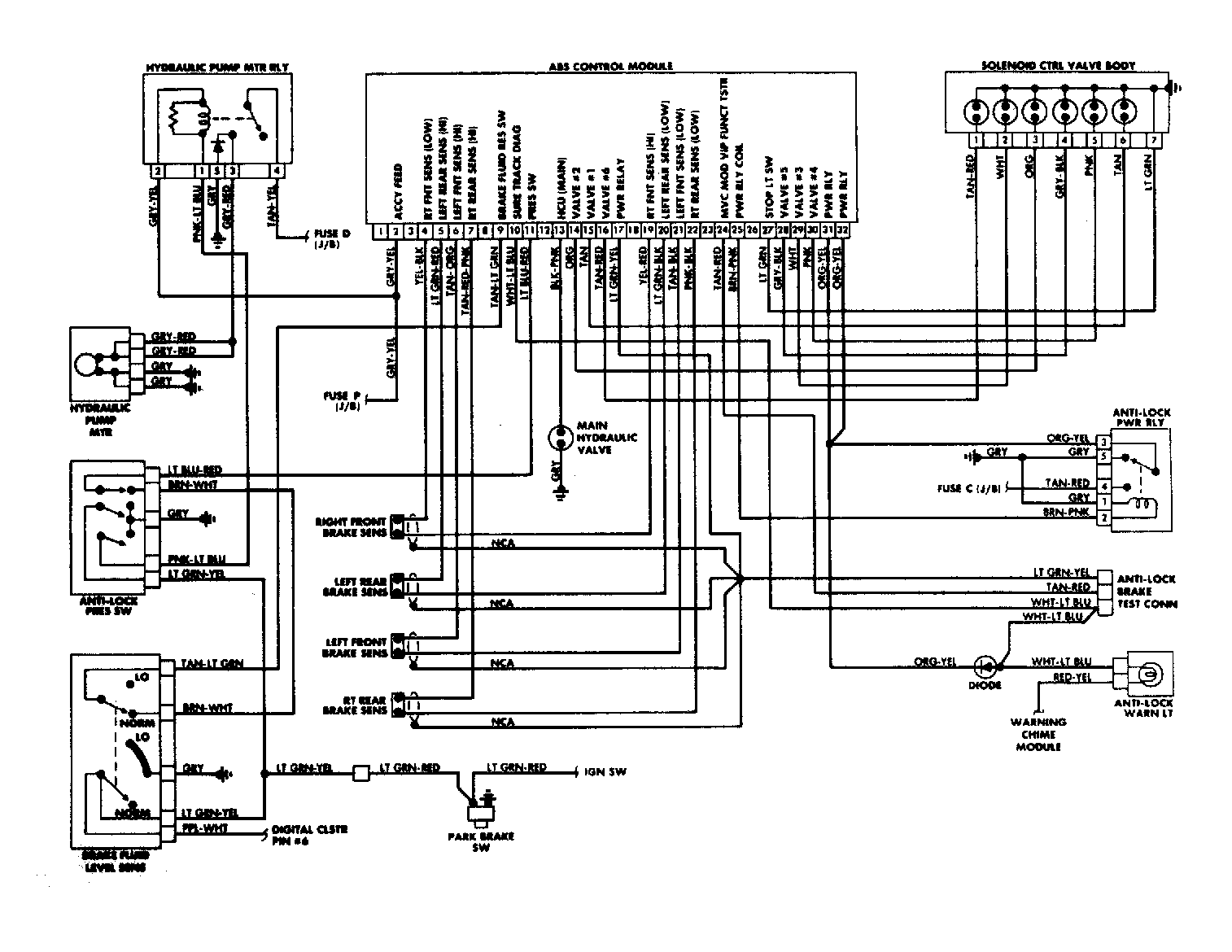

Fig 6: Anti-Lock Brake System Wiring Diagram (1990-91 Mark VII)

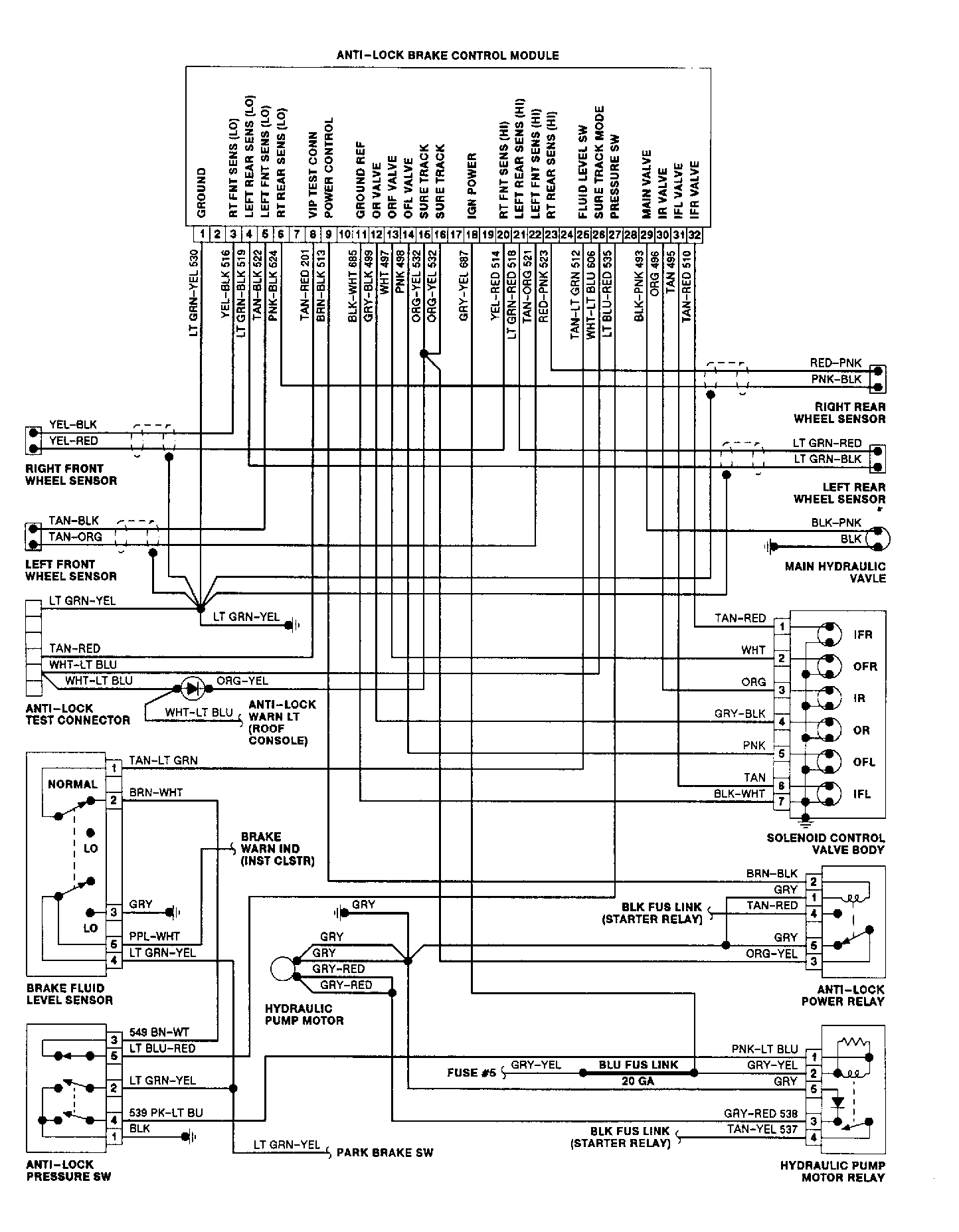

Fig 7: Anti-Lock Brake System Wiring Diagram (Cougar & Thunderbird)

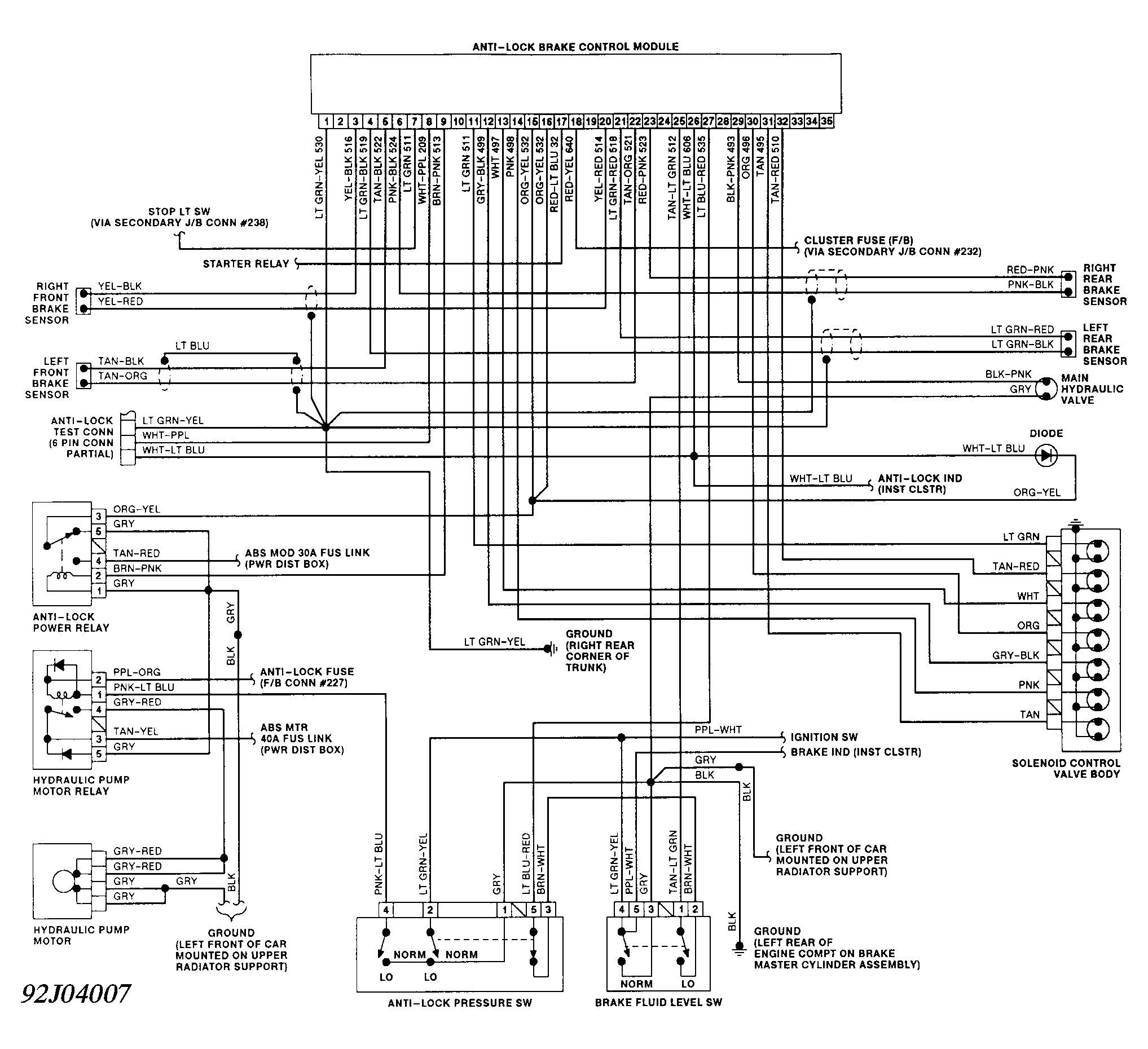

Fig 8: Anti-Lock Brake System Wiring Diagram (1992 Mark VII)

Fig 9: Anti-Lock Brake System Wiring Diagram (Cougar & Thunderbird)
