Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

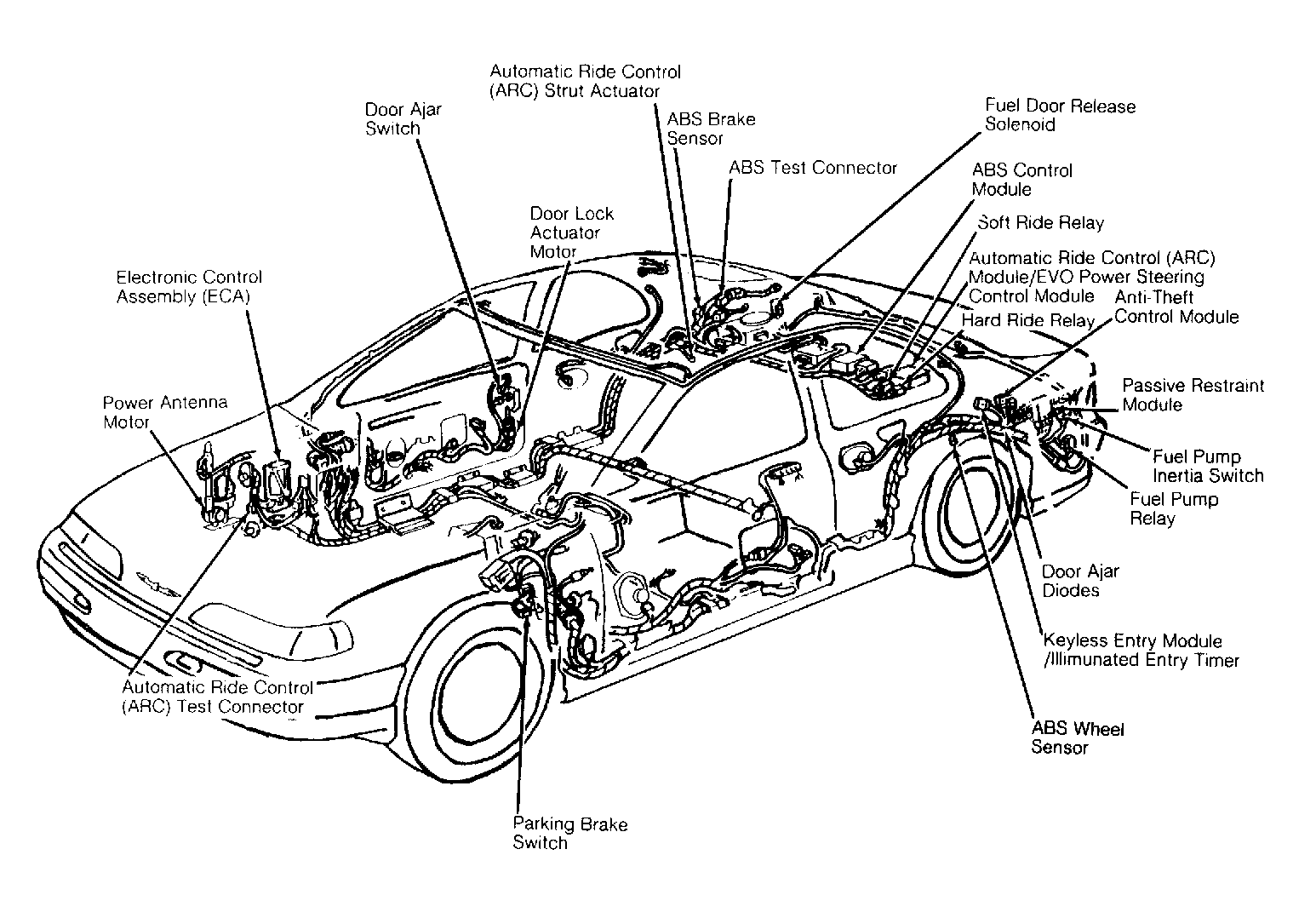

| ABS Control Module | In luggage compartment, below center of package tray. See Figure . |
| Anti-Theft Control Module | On left rear quarter panel, behind wheelwell. See Figure . |
| Automatic Ride Control (ARC) Module | In luggage compartment, below center of package tray. See Figure . |
| Daytime Running Lights (DRL) Module | On left front of engine compartment, on radiator support. |

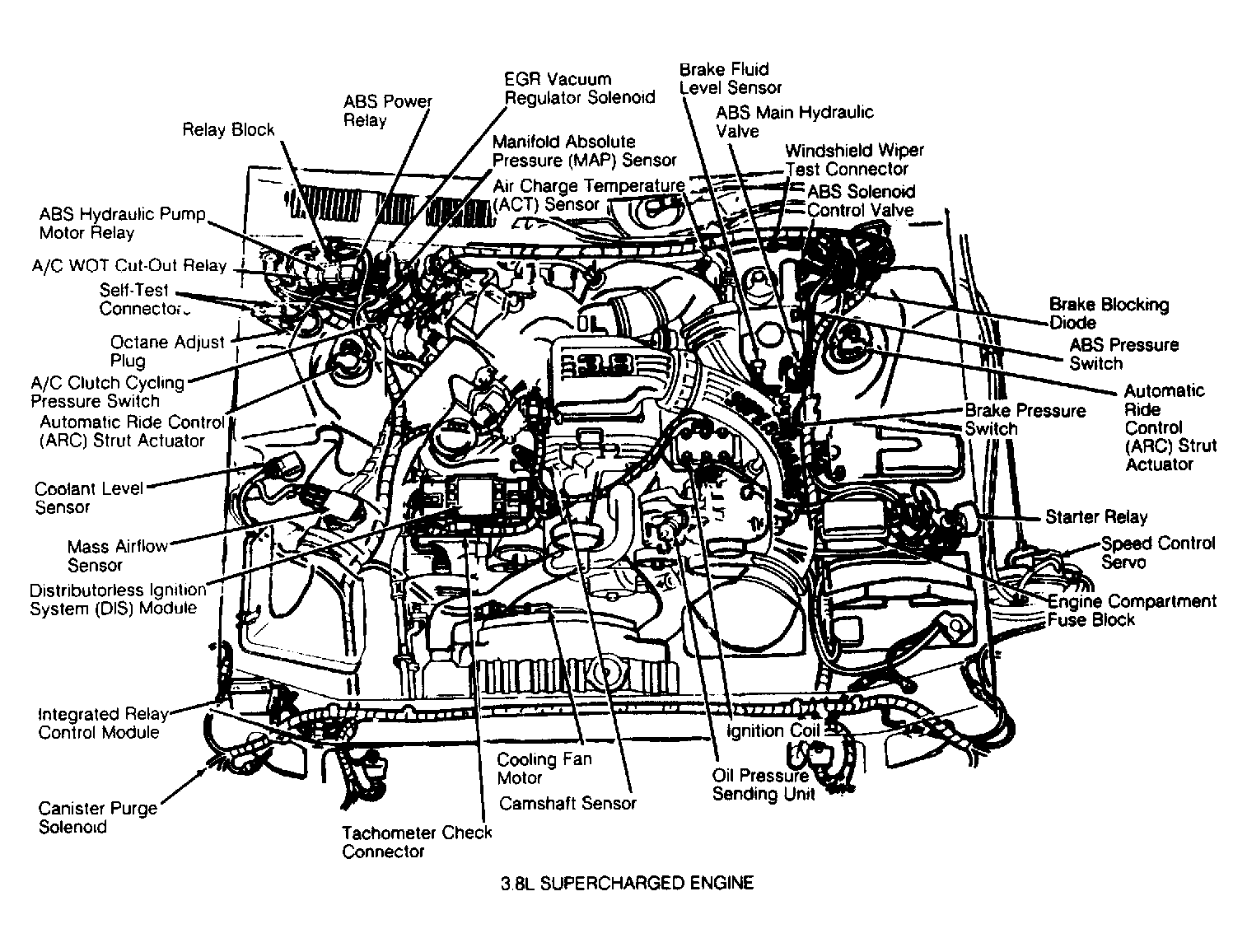

| Distributorless Ignition System (DIS) Module | On right front of engine, on top of bracket assembly. See Figure . |
| Electronic Control Assembly (ECA) | Behind right shroud. See Figure . |
| Electronic Variable Orifice (EVO) Power Steering Module | In luggage compartment, below center of package tray. See Figure . |
| Integrated Relay Control Module | On right front of engine bay. See Figure . |
| Keyless Entry Module | On left rear quarter panel, behind wheelwell. See Figure . |
| Passive Restraint Module | On left rear quarter panel, behind wheelwell. See Figure . |

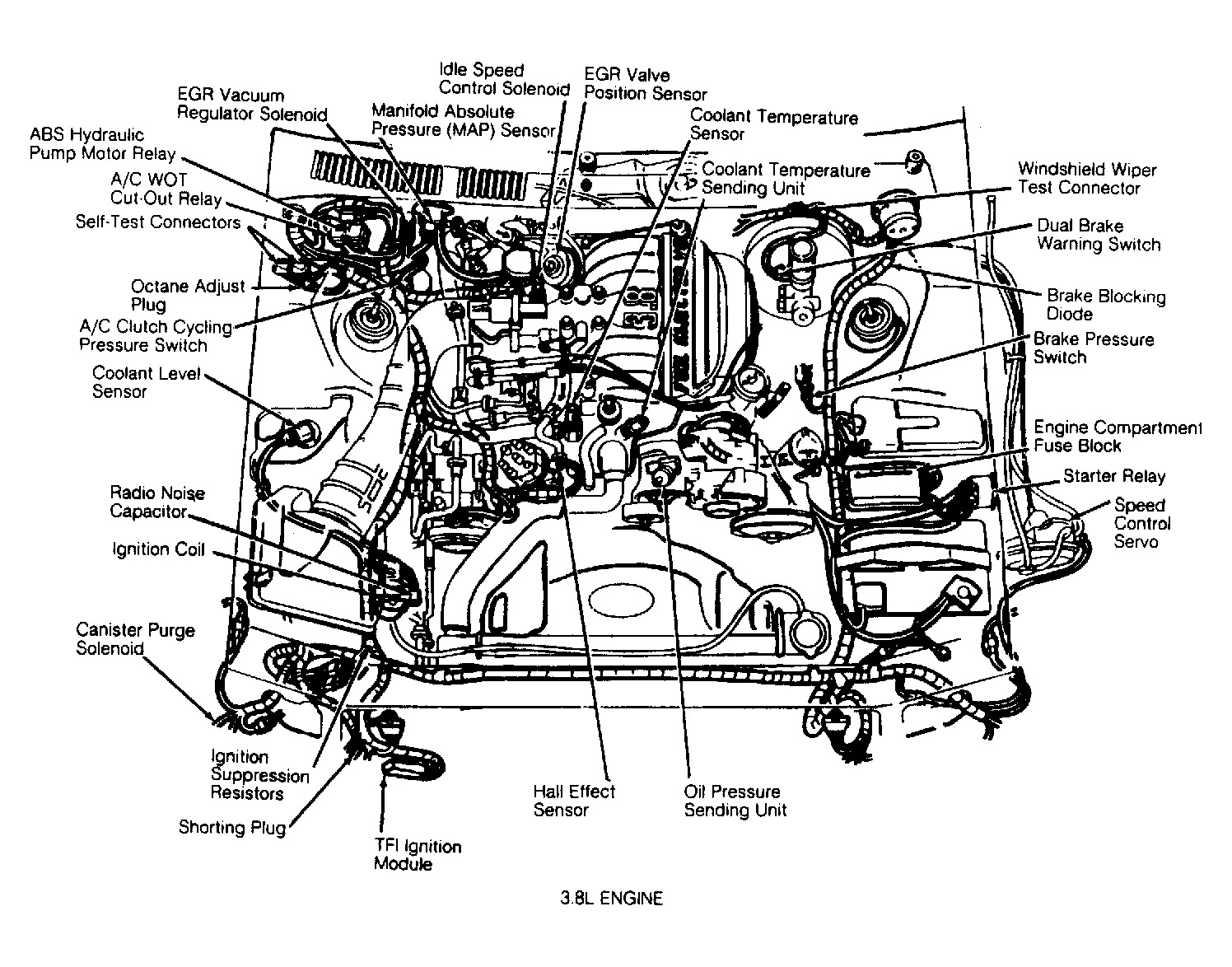

| TFI Ignition Module (EEC-IV) | Below right front of engine bay. See Figure . |

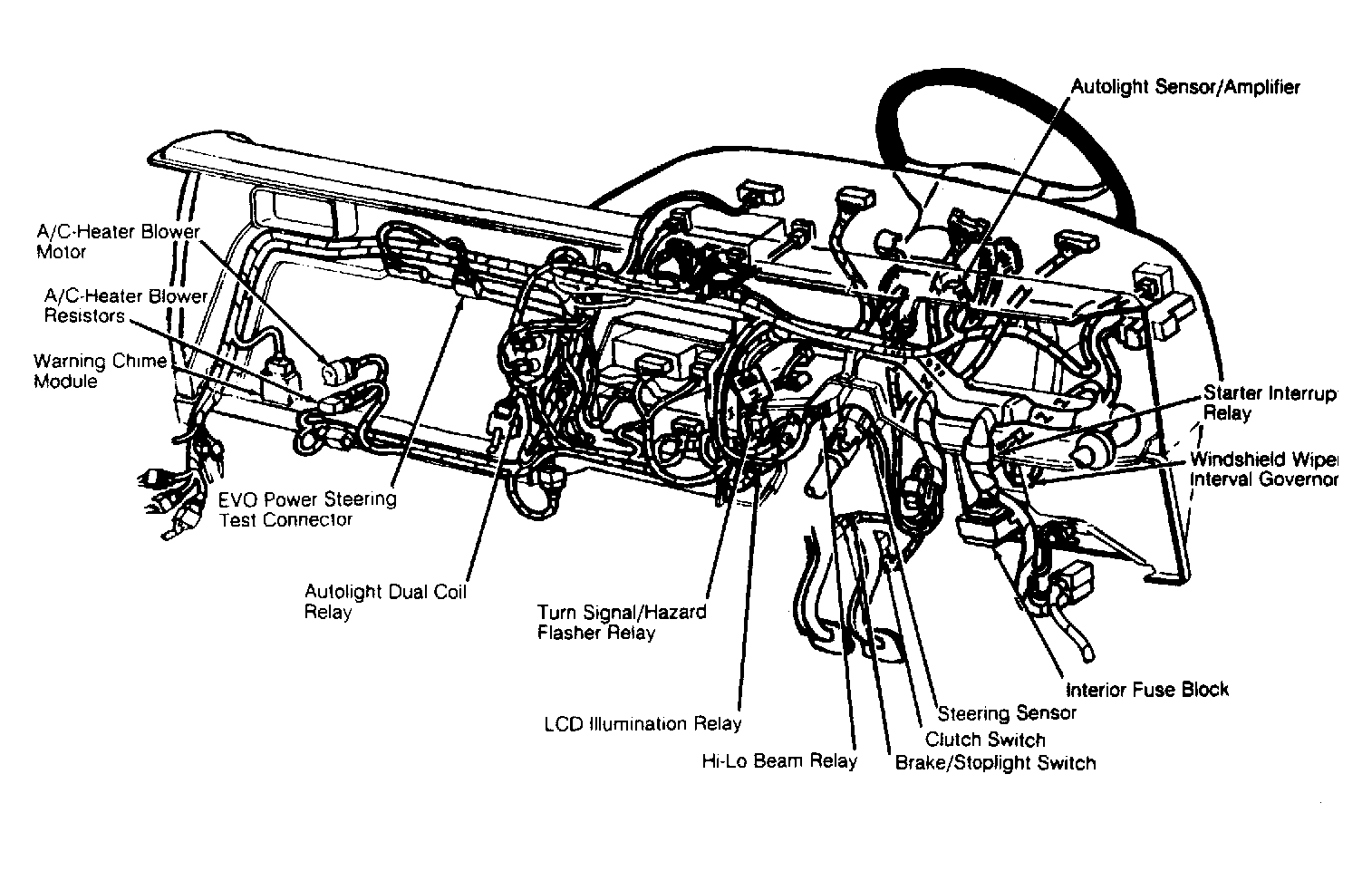

| Warning Chime Module | Behind right side of dash, below glove box. See Figure . |
