Engine Control Module

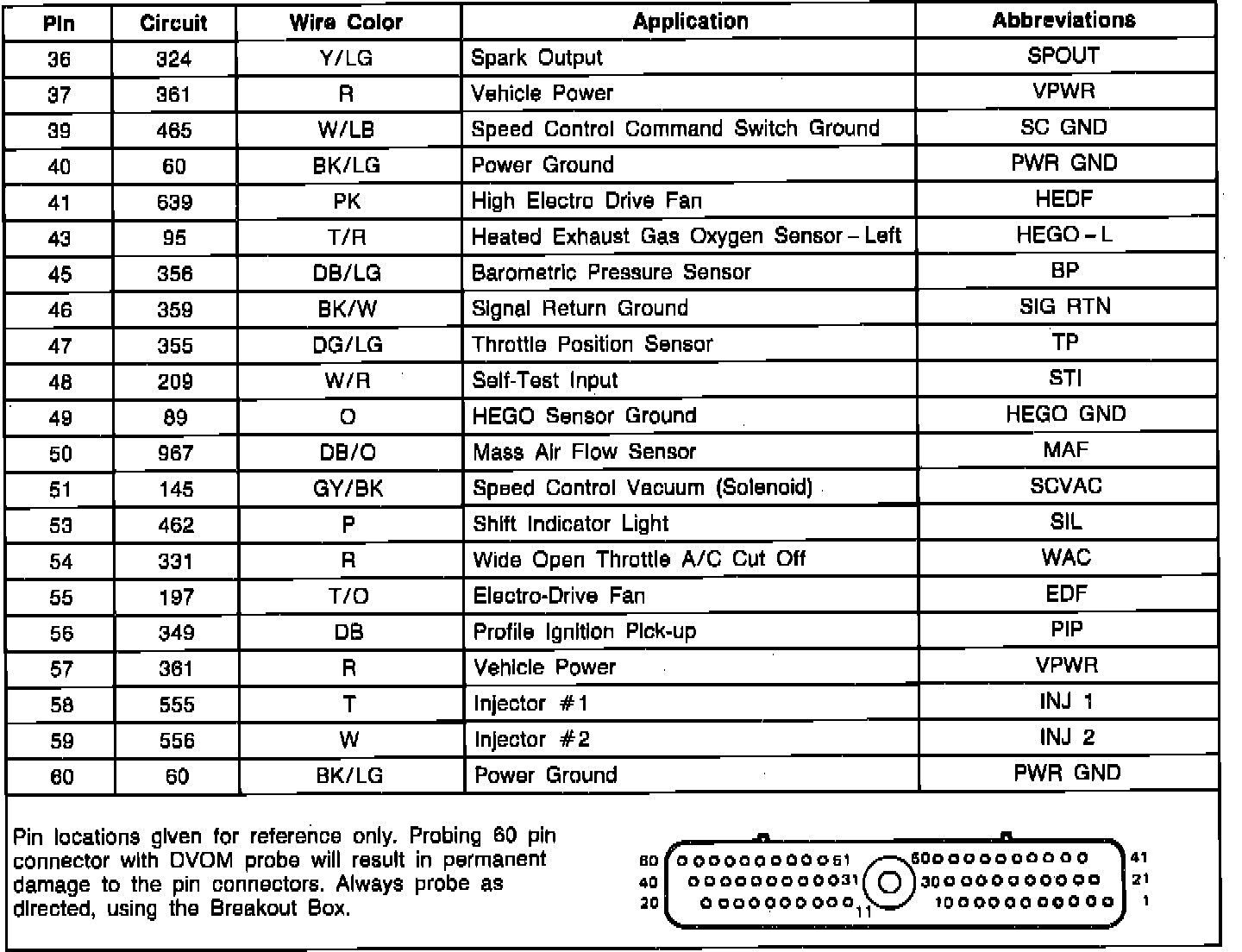

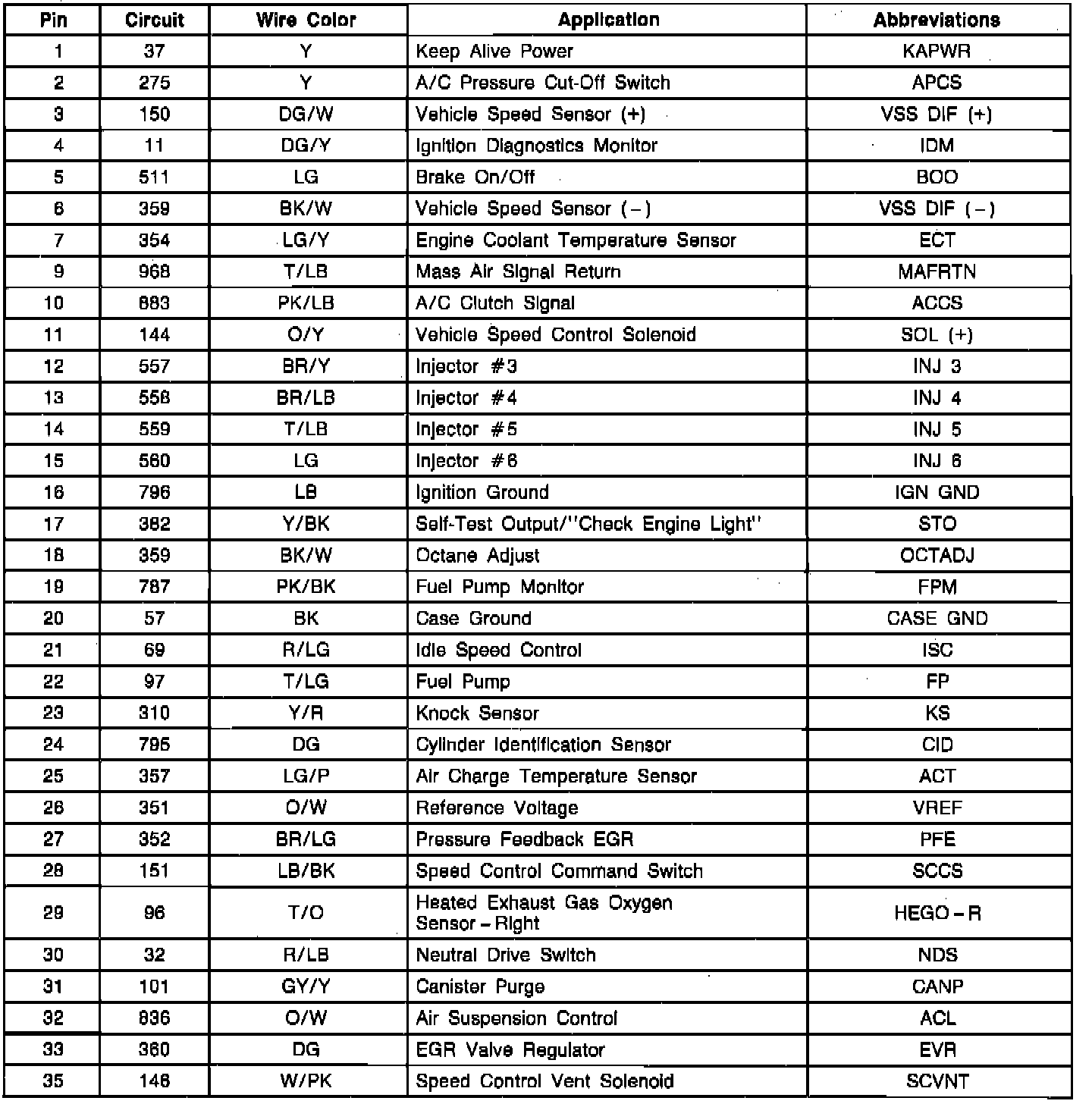

EEC-IV Module Connector Pin Usage:



EEC-IV Module Connector Pin Usage:

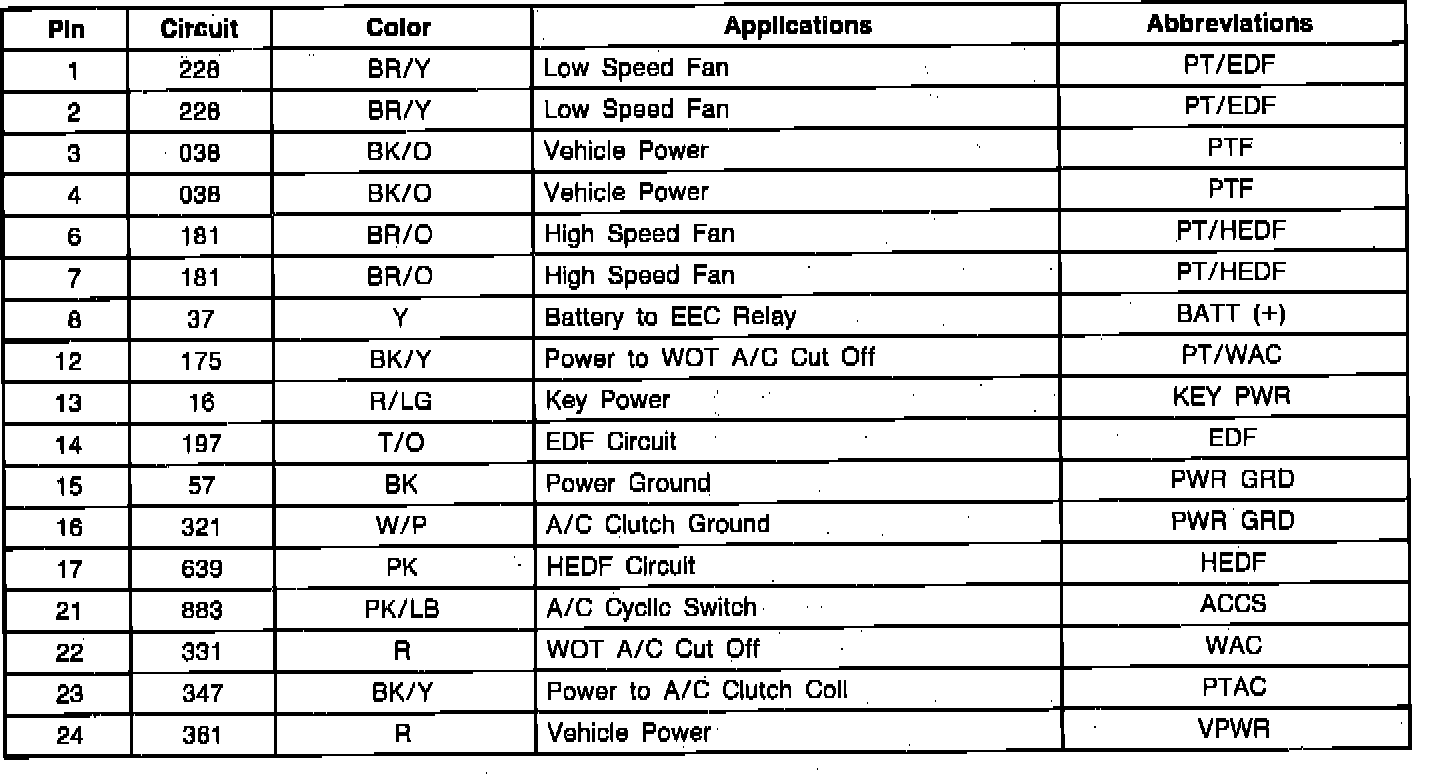

Integrated Controller Pin Usage:
