A/T Torque Data

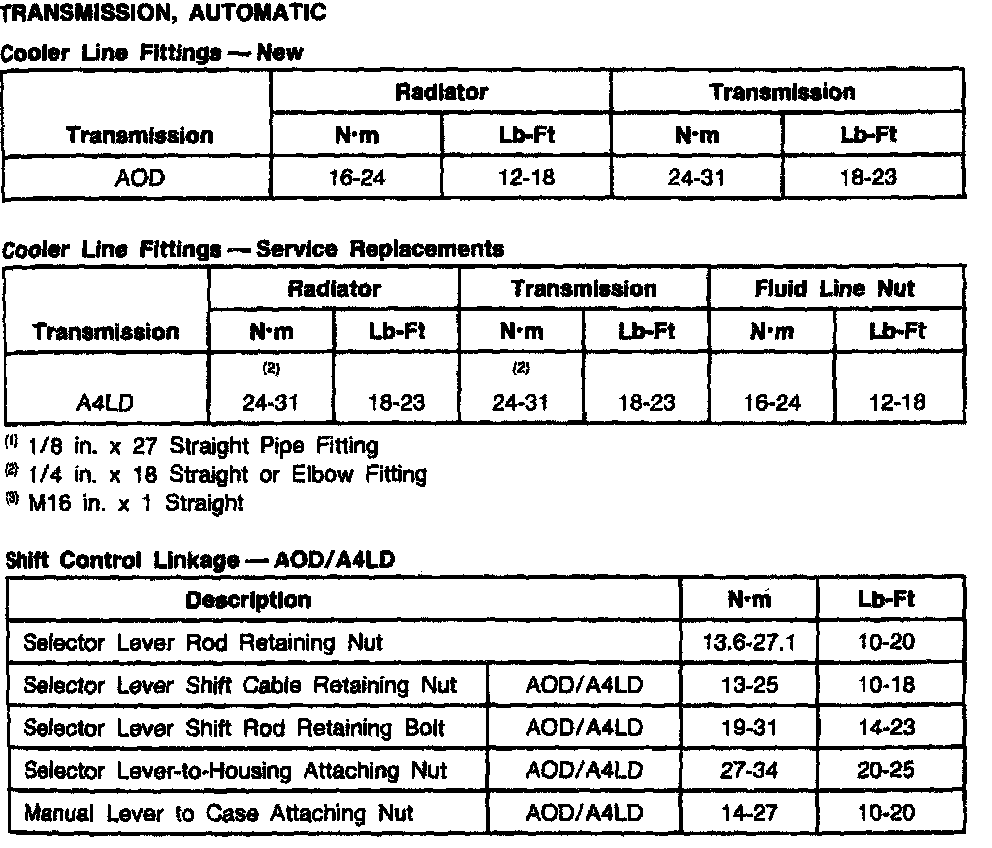

AOD 4-spd A/T, Cooler Fittings/Control Linkage:

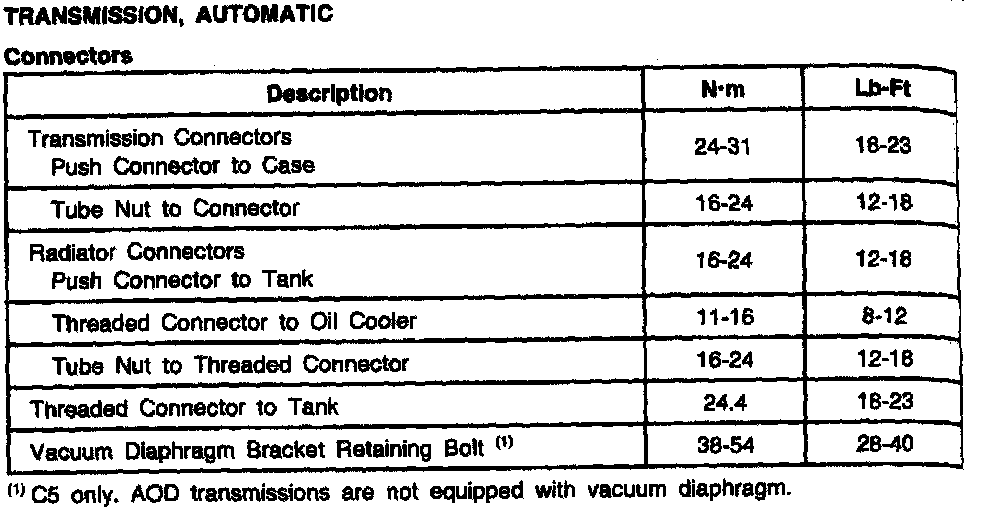

AOD 4-spd A/T, Transmission Assembly:





AOD 4-spd A/T, Transmission Assembly:
