Power Window Motor

To test the current draw of a power window motor, remove the door trim panel. See DOOR TRIM PANEL (BRONCO & F-SERIES)  or DOOR TRIM PANEL (ECONOLINE)  under REMOVAL & INSTALLATION.

1. Disconnect the motor lead.
2. Disconnect the regulator mechanism from the motor.
3. Supply power to motor lead connector with an ammeter in series. See Fig 1.
4. Operate the motor and observe the current draw. The current draw for the no-load test should not exceed four amps and should not fluctuate. Reversal of the motor wire connections will reverse the direction of motor rotation. Replace the motor if the current draw exceeds four amps. See WINDOW MOTOR  under REMOVAL & INSTALLATION.

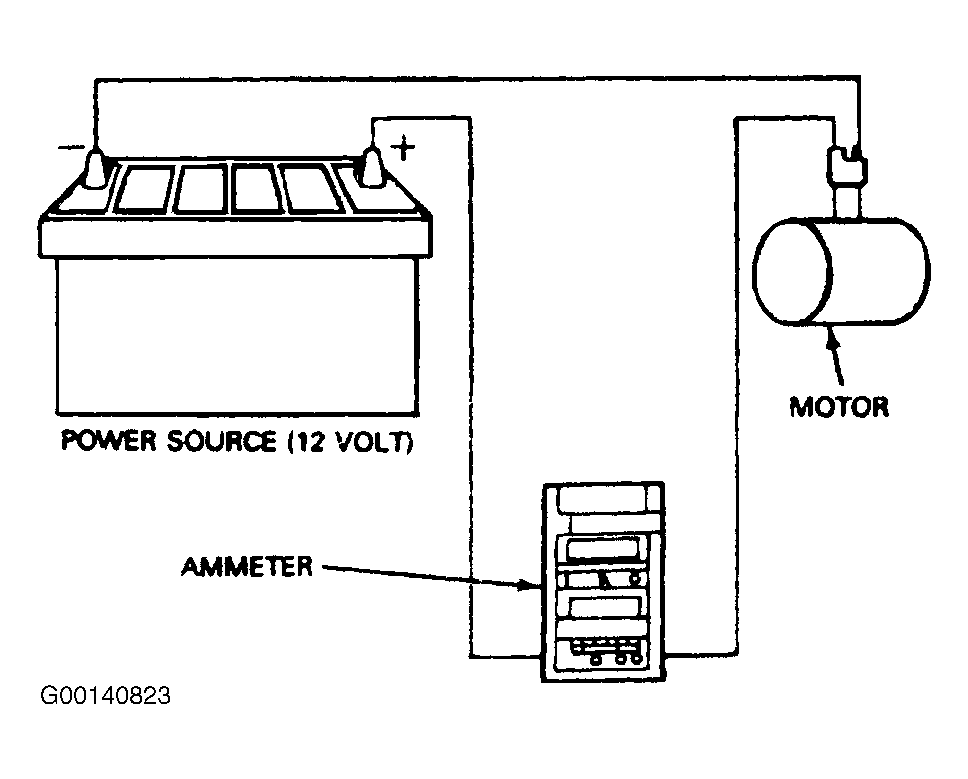

   Fig 1: Testing Power Window Motor Draw

   Courtesy of FORD MOTOR CO.
