Crankshaft Sensor Installation (4.0L)

Place crankshaft sensor in correct position. Install mounting screws and tighten. Reconnect crankshaft sensor wire connector.

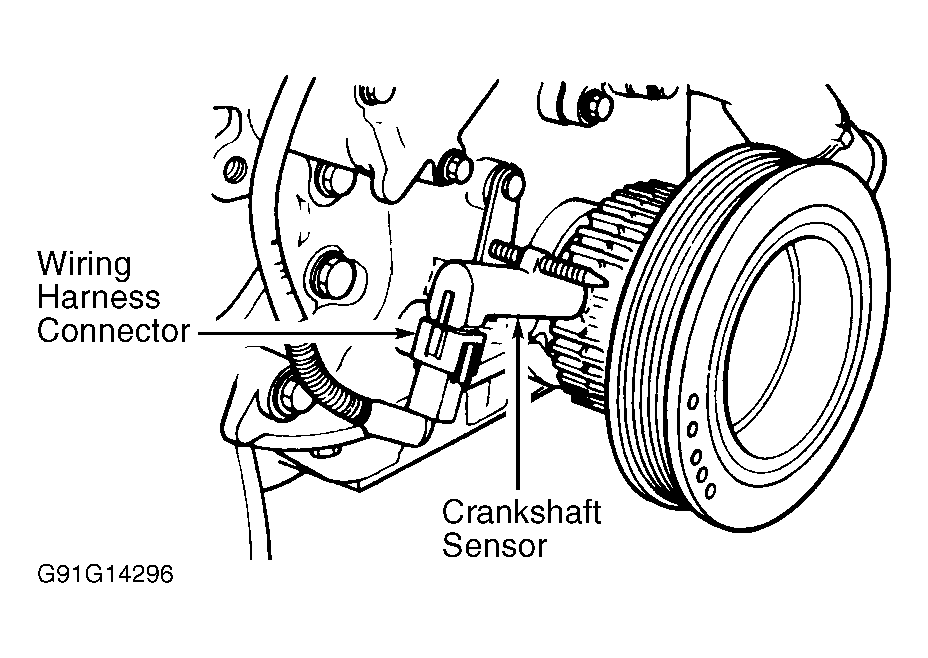

Fig 1: Locating Crankshaft Sensor (4.0L)
G91G14296Courtesy of FORD MOTOR CO.
