Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | ||
|---|---|---|---|
| Circuit Breakers | |||
| Cigar, Flash-To-Pass & Lumbar Seat (Explorer) | In cavity No. 12 of interior fuse block. | ||
| Cigar, Multi-Function & Lumbar Seats (Ranger) | In cavity No. 12 of interior fuse block. | ||
| Power Windows | In cavity No. 14 of interior fuse block. | ||
| Rear Wiper | On right side of dash, below glove box. | ||
| Windshield Wiper | In cavity No. 2 of interior fuse block. | ||
| Fusible Links | |||
| Explorer (Gray) | At starter relay. | ||
| Ranger (Dark Green) | At starter relay. | ||
| Fuse/Relay Block | |||
| Engine Compartment | |||
| Ranger | On right front fender panel. See Figure . | ||

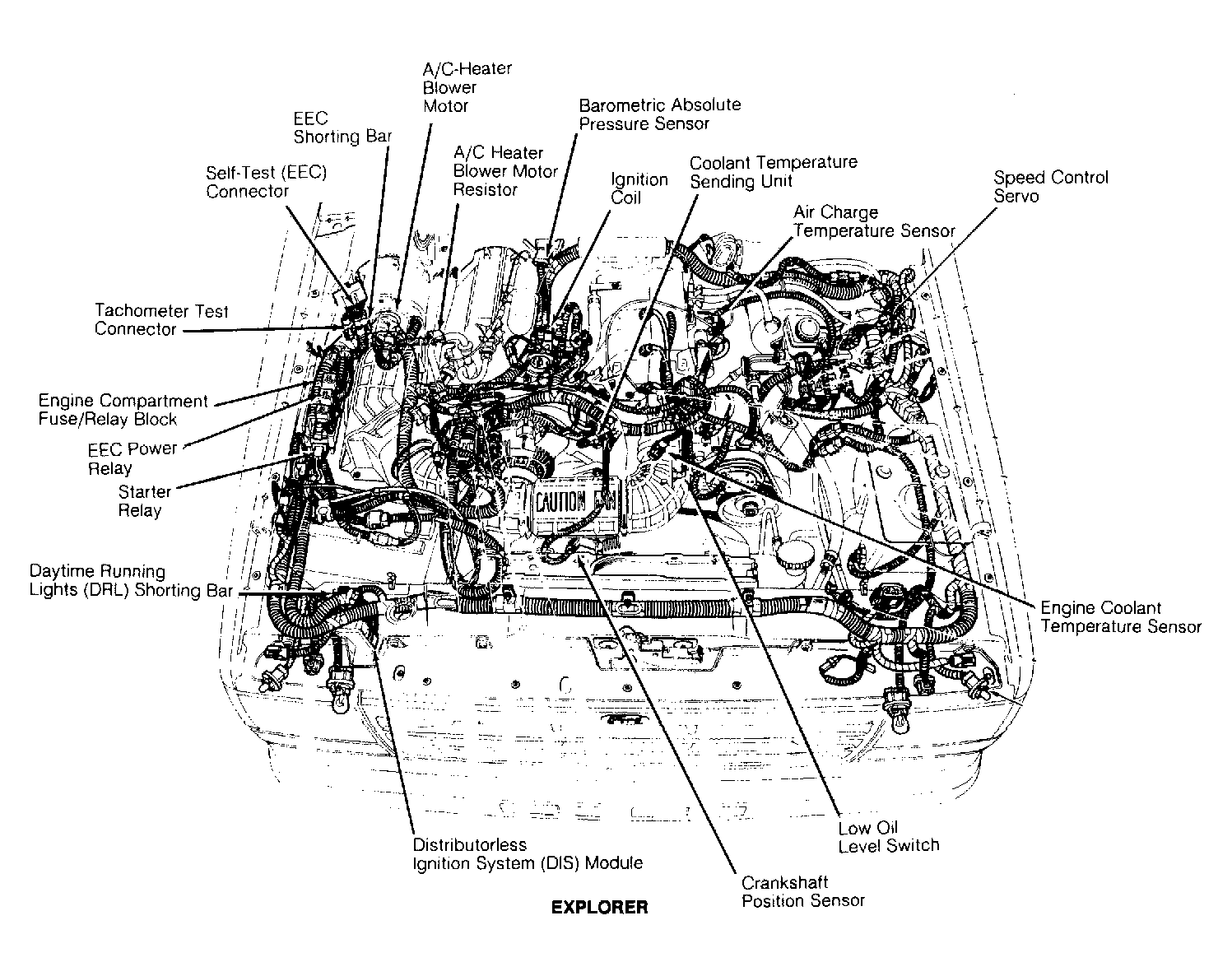

| Explorer | On right front fender panel. See Figure & Figure . | ||
| Interior | Behind trim panel, left of steering column. | ||
