Control Units
CONTROL UNITS LOCATION
| Component | Location | ||
|---|---|---|---|

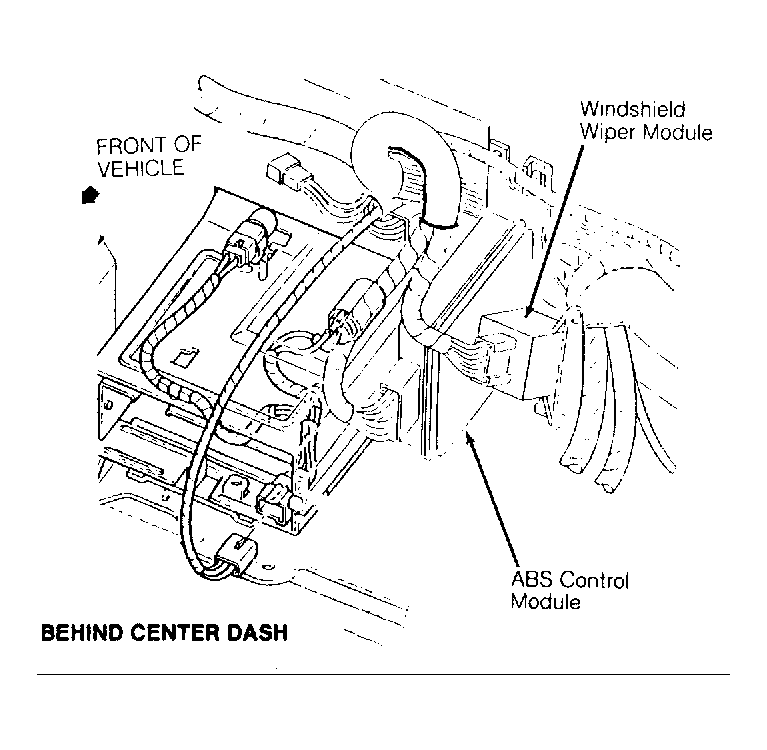

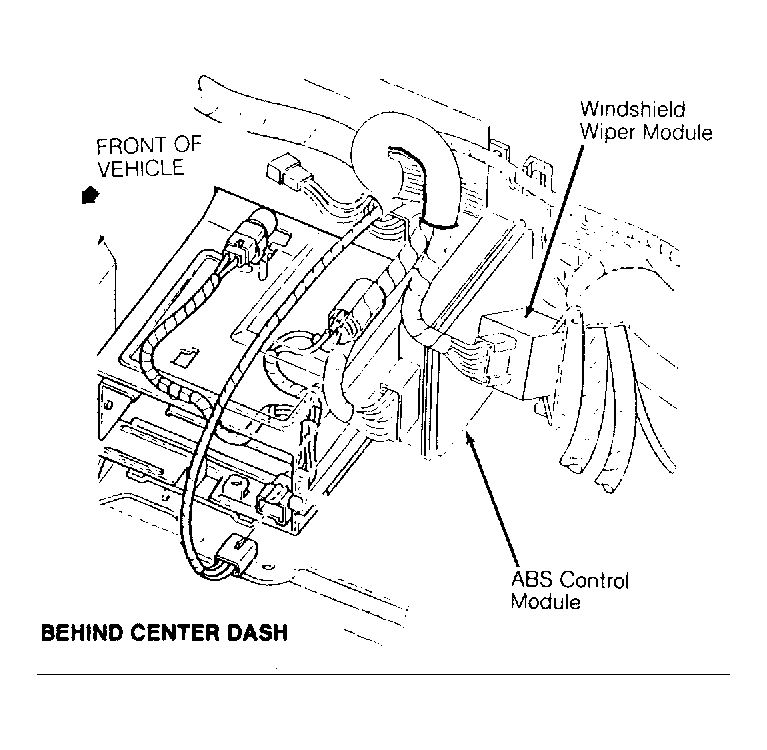

| ABS Control Module | Behind center of dash, left of ashtray. See Figure . | ||
| Distributorless Ignition System (DIS) Module | |||

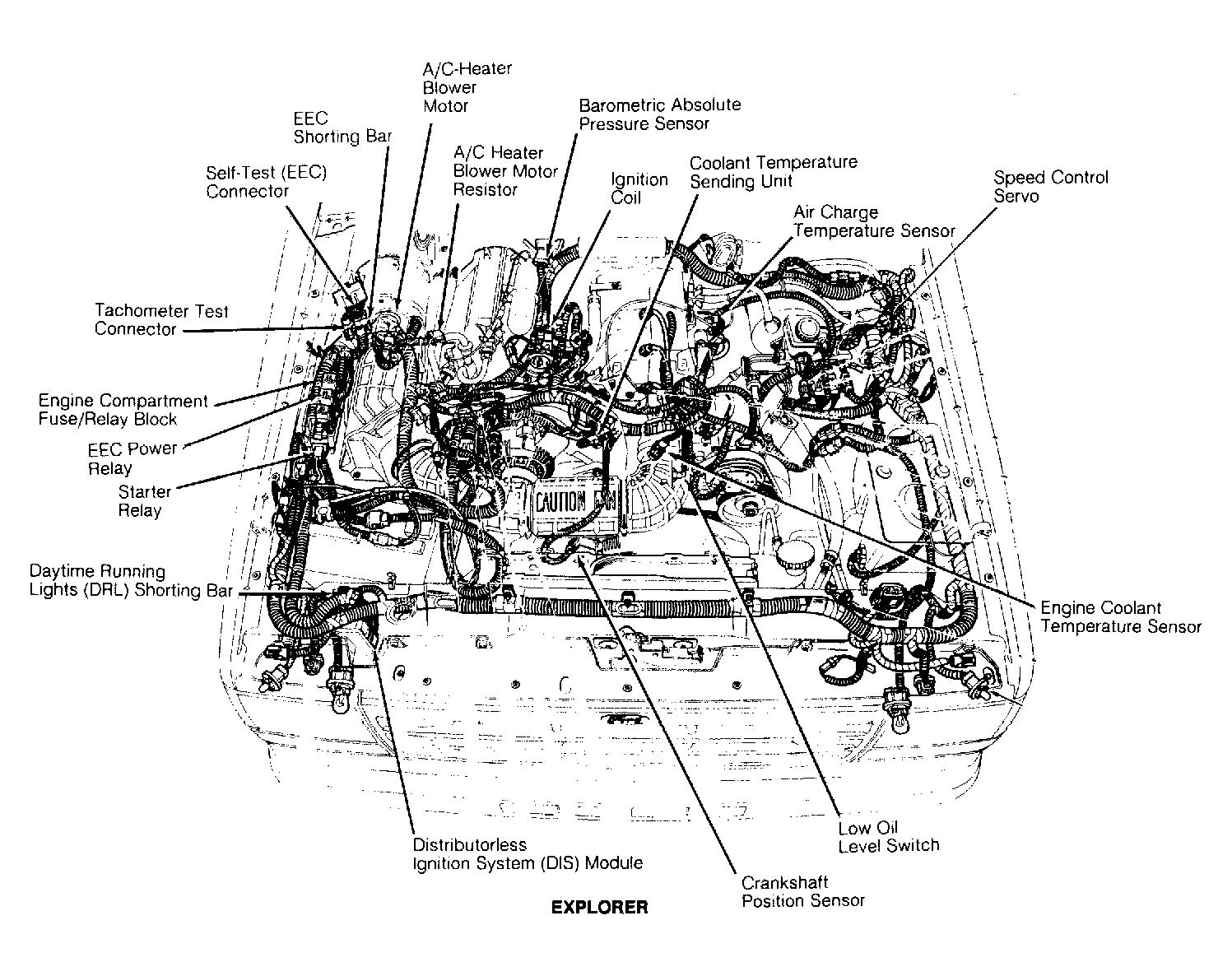

| Explorer | On left side of right headlight. See Figure . | ||
| Ranger | |||

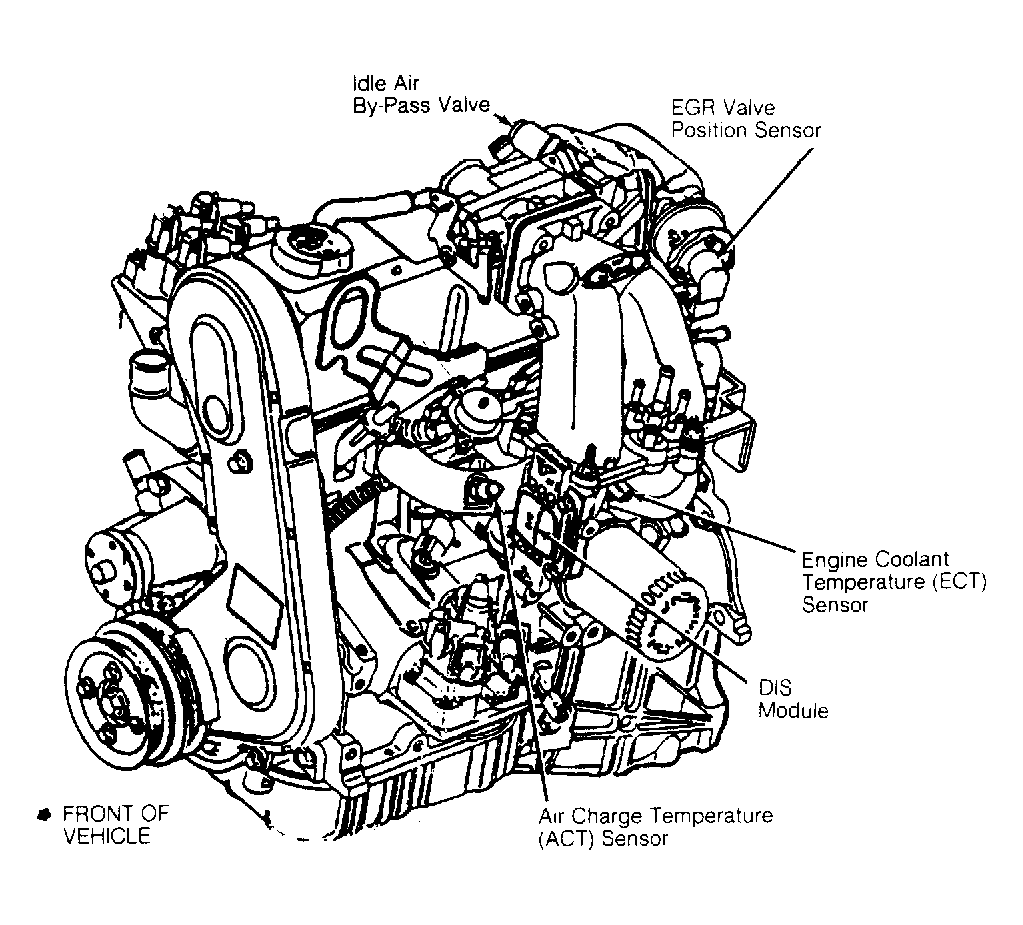

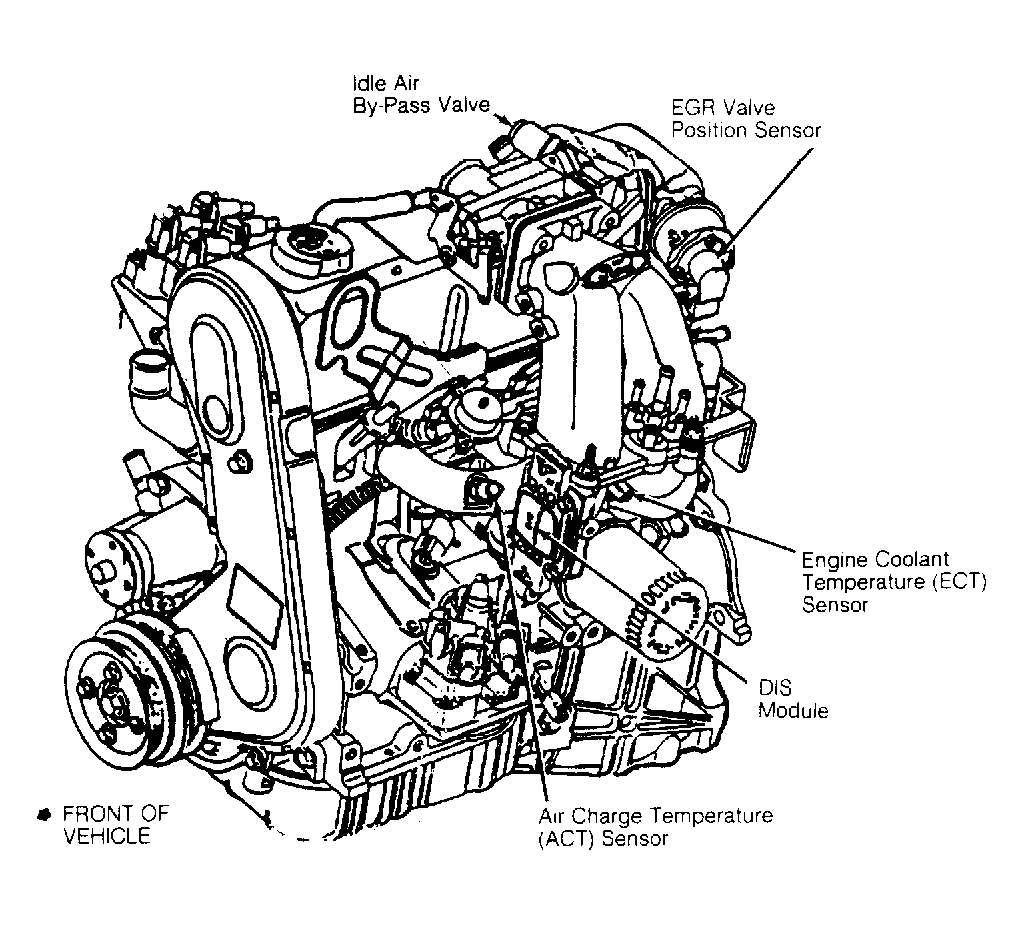

| 2.3L | On front of intake manifold. See Figure . | ||
| 4.0L | Front of battery on radiator support. | ||
| Electronic Engine Control (EEC) Module | |||
| Explorer | Behind right side of dash near kick panel. | ||

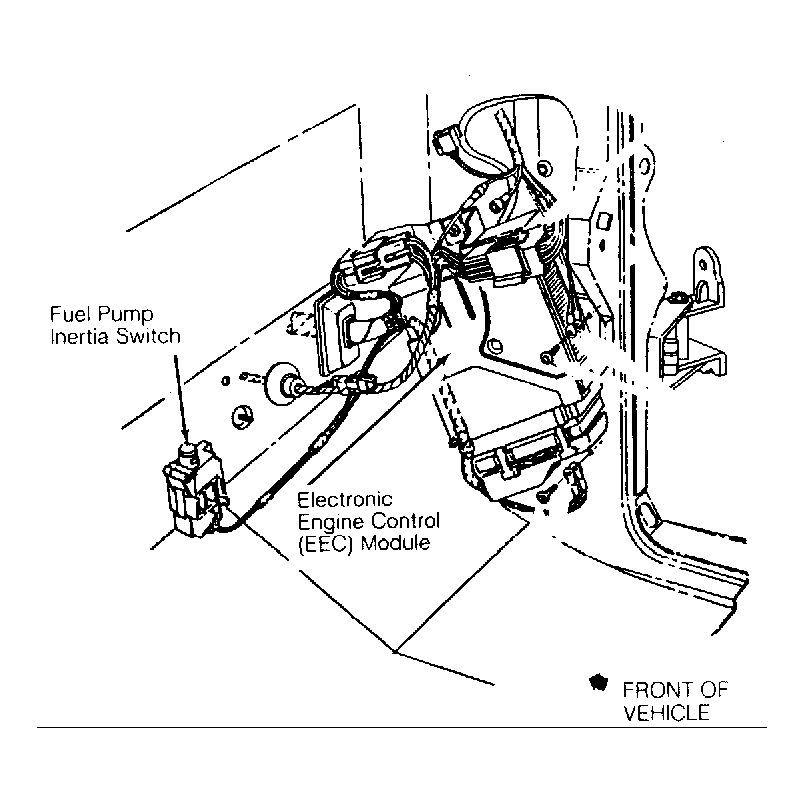

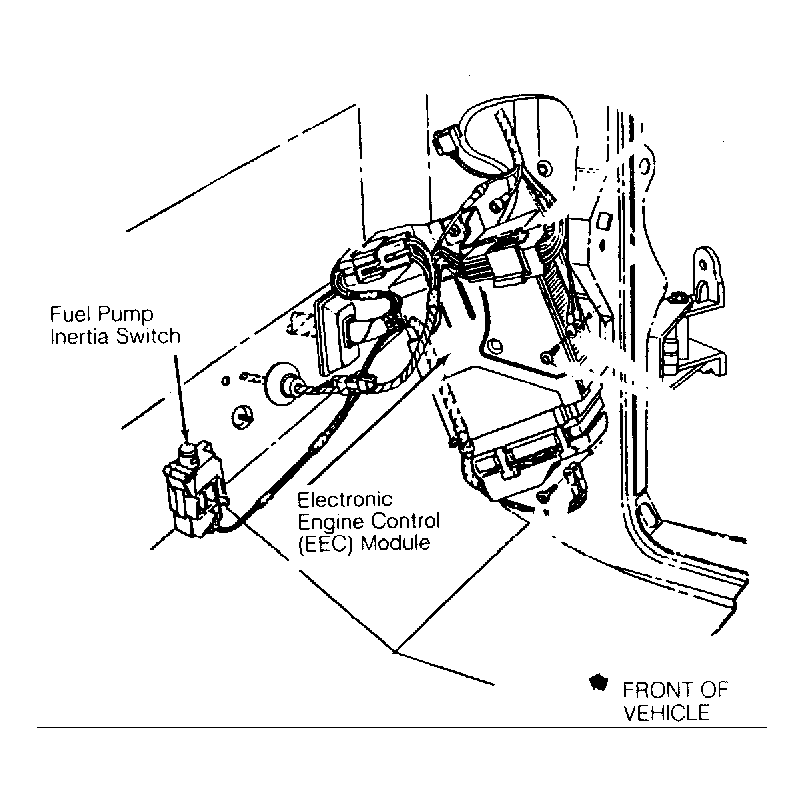

| Ranger | Behind right kick panel. See Figure . | ||
| Electronic Shift Control Module | |||
| Explorer | Over left rear wheelwell. | ||
| Ranger | |||
| Regular Cab | In left lower rear of cab, behind driver seat. | ||
| Super Cab | Behind driver door pillar trim panel. | ||
| TFI Ignition Module | |||
| Ranger | |||
| 2.9L | On distributor. | ||
| 3.0L | On left radiator support. | ||
| Warning Chime Module | Behind center of dash, below ashtray. | ||
| Windshield Wiper Interval Governor | |||
| Explorer | Behind center of dash, below ashtray. | ||
| Ranger | Behind center of dash, left of ashtray. See Figure . | ||
