Front Differential

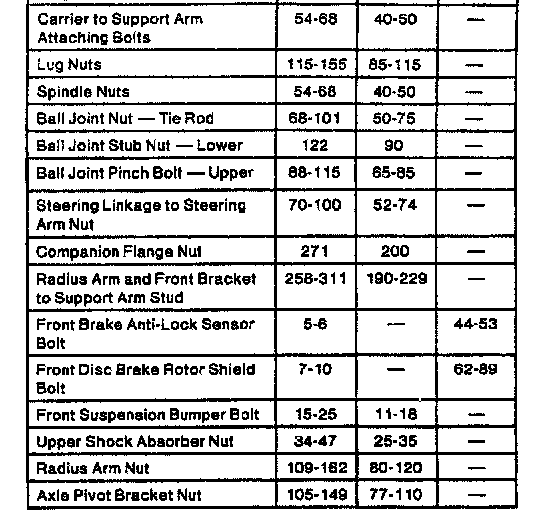

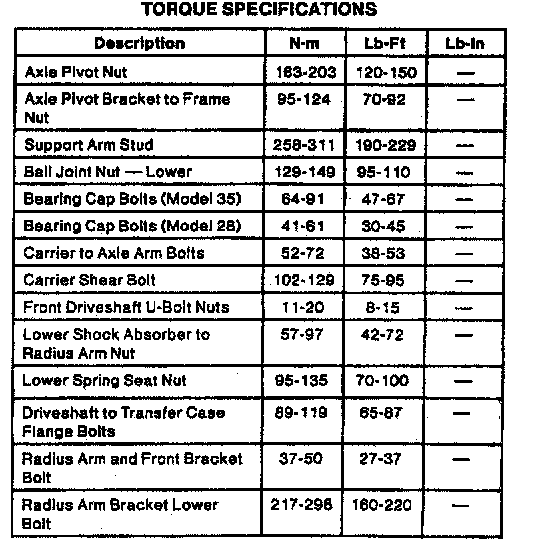

Dana 28/35, Front Differential Torque:





Dana 28/35, Differential Torque:

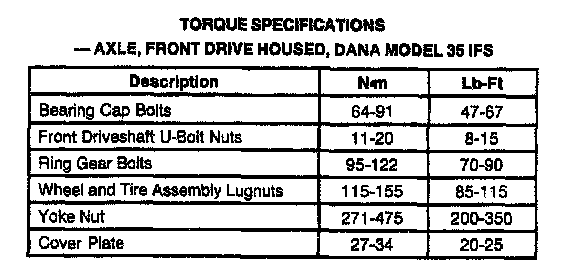

Dana 35 IFS, Differential Torque:
