2 Door

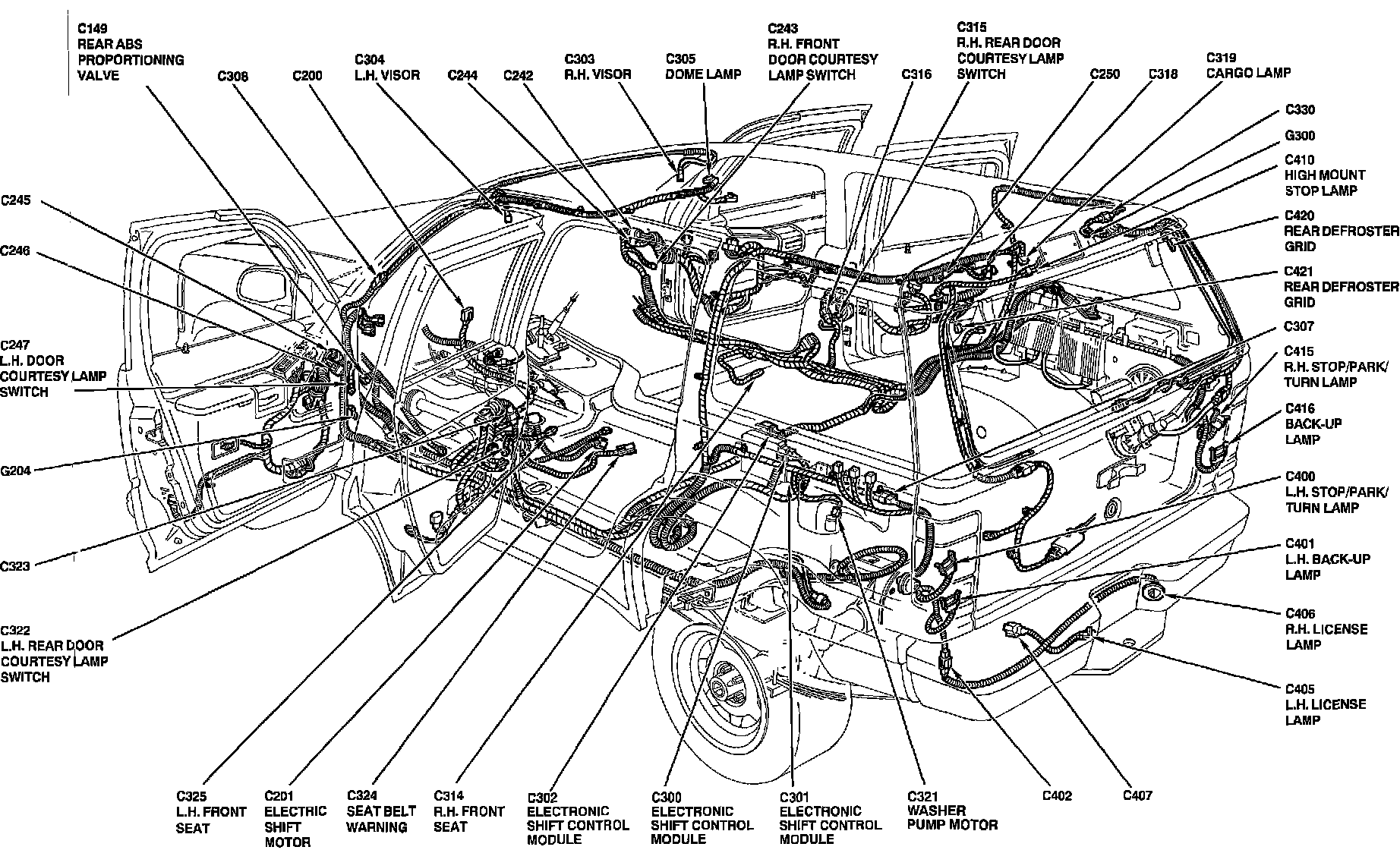

Component Location:

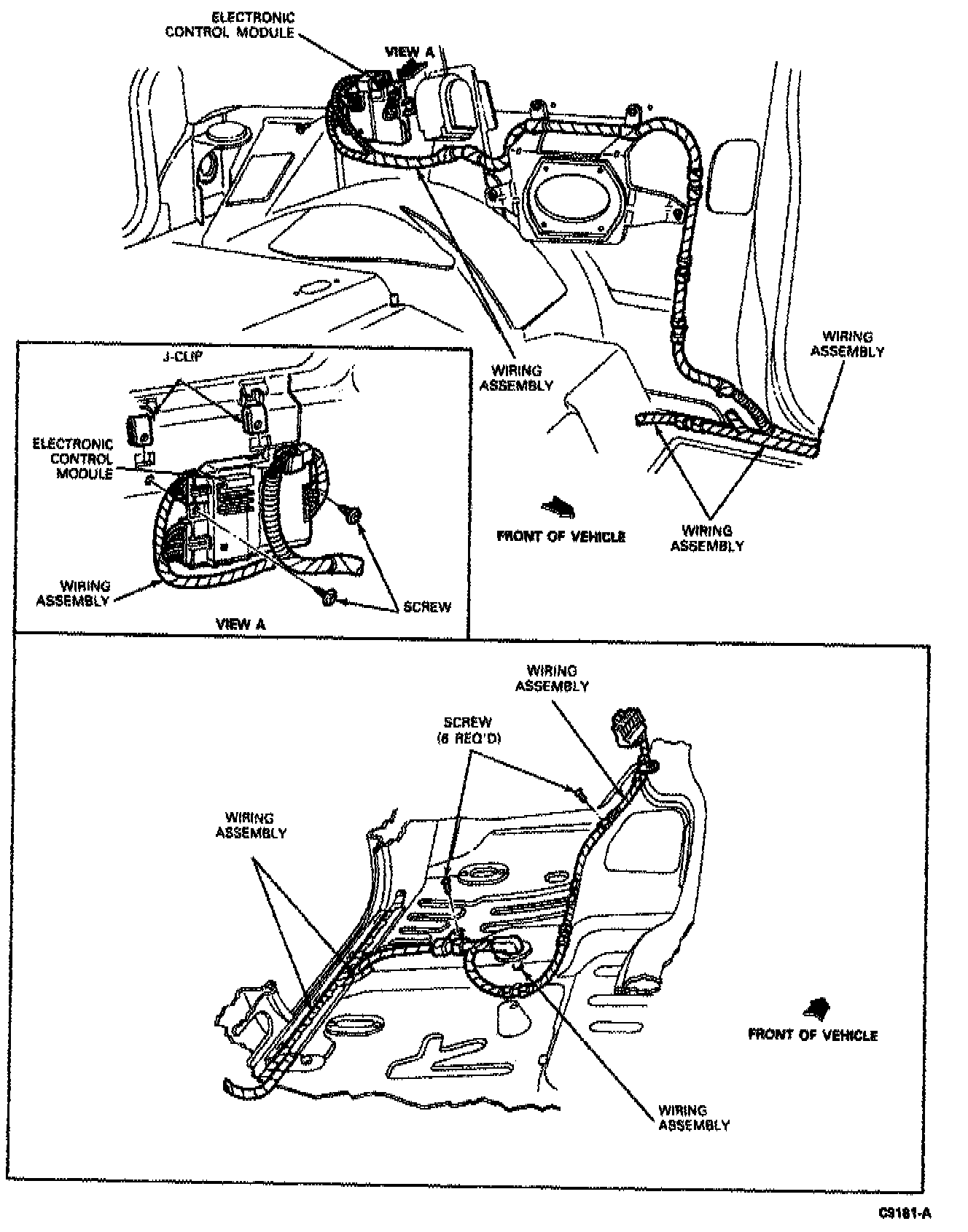

Electronic Control Module Location (2-Door):





The Electronic Shift Control Module is located at the rear of vehicle, over the left wheel well.
