Test TP - Throttle Position Sensor

NOTE: To diagnose throttle position on 1.8L with manual transaxle, see CIRCUIT TEST STG. Enter this test only when a Code 12 is displayed during SELF-TEST procedure, or when directed here from another CIRCUIT TEST. To prevent replacement of good components, check the following non-EEC components for fault: idle speed or throttle stop adjustments, throttle shaft or linkage, and cruise control linkage.

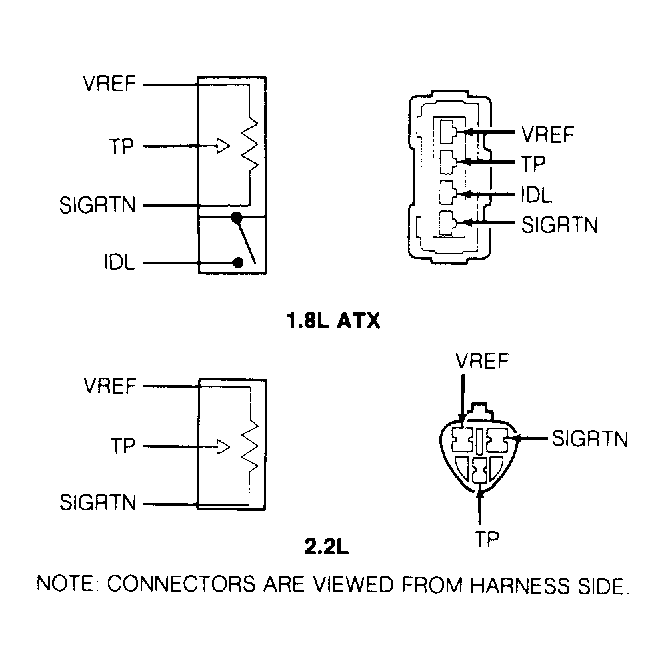

Fig 1: Identifying TP Connector Terminals
G91H08151
CIRCUIT PIN IDENTIFICATION

Circuit Breakout Box Pin ECA Pin
1.8L (ATX)
IDL 18 1N
SIGRTN 46, 49 2D
TP 18 1N
VREF 26 2K
1.8L (MTX)
SIGRTN 46, 49 2D
IDL 18 1N
WOT 27 2L
2.2L (Non-Turbo MTX)
SIGRTN 46, 49 2D
TPS 47 2M
VREF 26 2K
2.2L (Non-Turbo ATX)
SIGRTN 46, 49 3D
TPS 47 2F
VREF 26 2I
2.2L (Turbo)
SIGRTN 46, 49 3D
TPS 47 2F
VREF 26 2I

1) Checking System Integrity  Visually check all wiring, connectors and components for evidence of damage, shorting or looseness. If fault is found, repair as necessary. If no fault is found, go to step 2).

2) Checking TPS Voltage  Ensure engine is at operating temperature. With ignition off, install breakout box. Turn ignition on. Measure voltage between TPS and SIGRTN test pins. Slowly depress accelerator pedal and compare voltage to specifications shown in VOLTAGE & RESISTANCE SPECIFICATIONS (TP SENSOR)  . If voltage is within specification, TPS circuit is okay; fault is in another circuit or ECA. If voltage is not within specification, go to step 4).

3) Checking TPS Signal Return  Remove TPS connector. Using jumper wire, attach SIGRTN and VREF connector terminals to TPS sensor. Attach voltmeter between sensor TPS terminal and SIGRTN terminal. Turn ignition on. Slowly depress accelerator pedal and compare voltage to specifications shown in VOLTAGE & RESISTANCE SPECIFICATIONS (TP SENSOR)  . If voltage is as specified, repair TPS circuit between ECA and TPS. If voltage is not as specified, go to step 4).

4) Checking SIGRTN/VREF At TPS  Remove TPS connector. Turn ignition on. Measure voltage between TPS wire and SIGRTN wire. If voltage is 4.5-5.5 volts, adjust or replace TPS. If voltage is not 4.5-5.5 volts, go to CIRCUIT TEST VREF.

VOLTAGE & RESISTANCE SPECIFICATIONS (1)

Throttle Position Ohms Volts
1/8 Open .998 .989
1/4 Open 1.104 1.60
3/8 Open 1.278 2.37
1/2 Open 1.462 2.74
5/8 Open 1.480 3.15
3/4 Open 1.459 3.43
7/8 Open 1.144 3.60
Full Open 1.072 4.02
(1) Values may vary by 15 percent.
