Repair and Diagnosis: Electrical: Starter: Overhaul

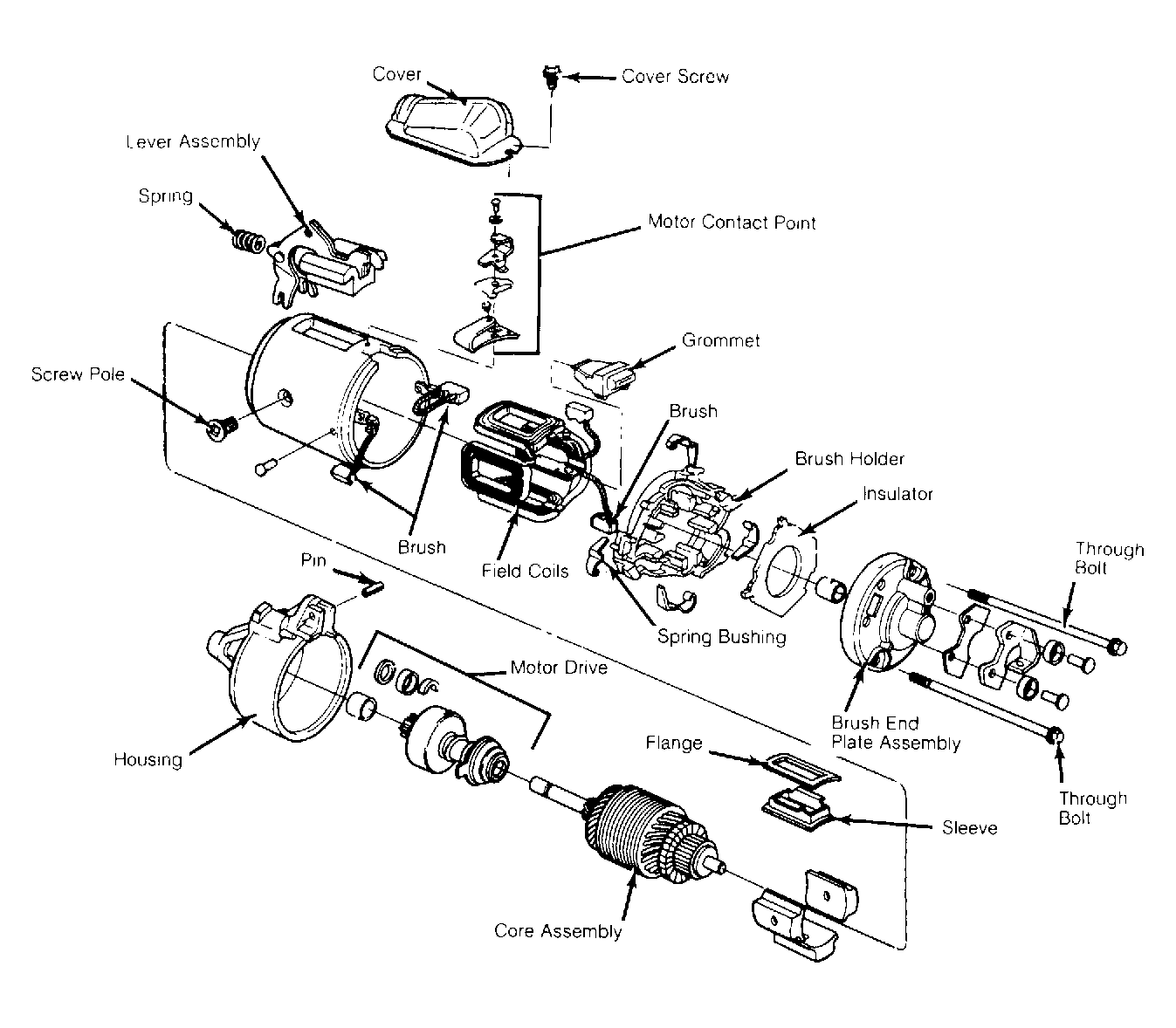

Fig 1: Exploded View of Permanent Magnet Starter Motor Assembly

Courtesy of FORD MOTOR CO.

Fig 2: Exploded View of Positive Engagement Starter Motor Assembly

Courtesy of FORD MOTOR CO.
