Wiring Diagrams: 3.8L

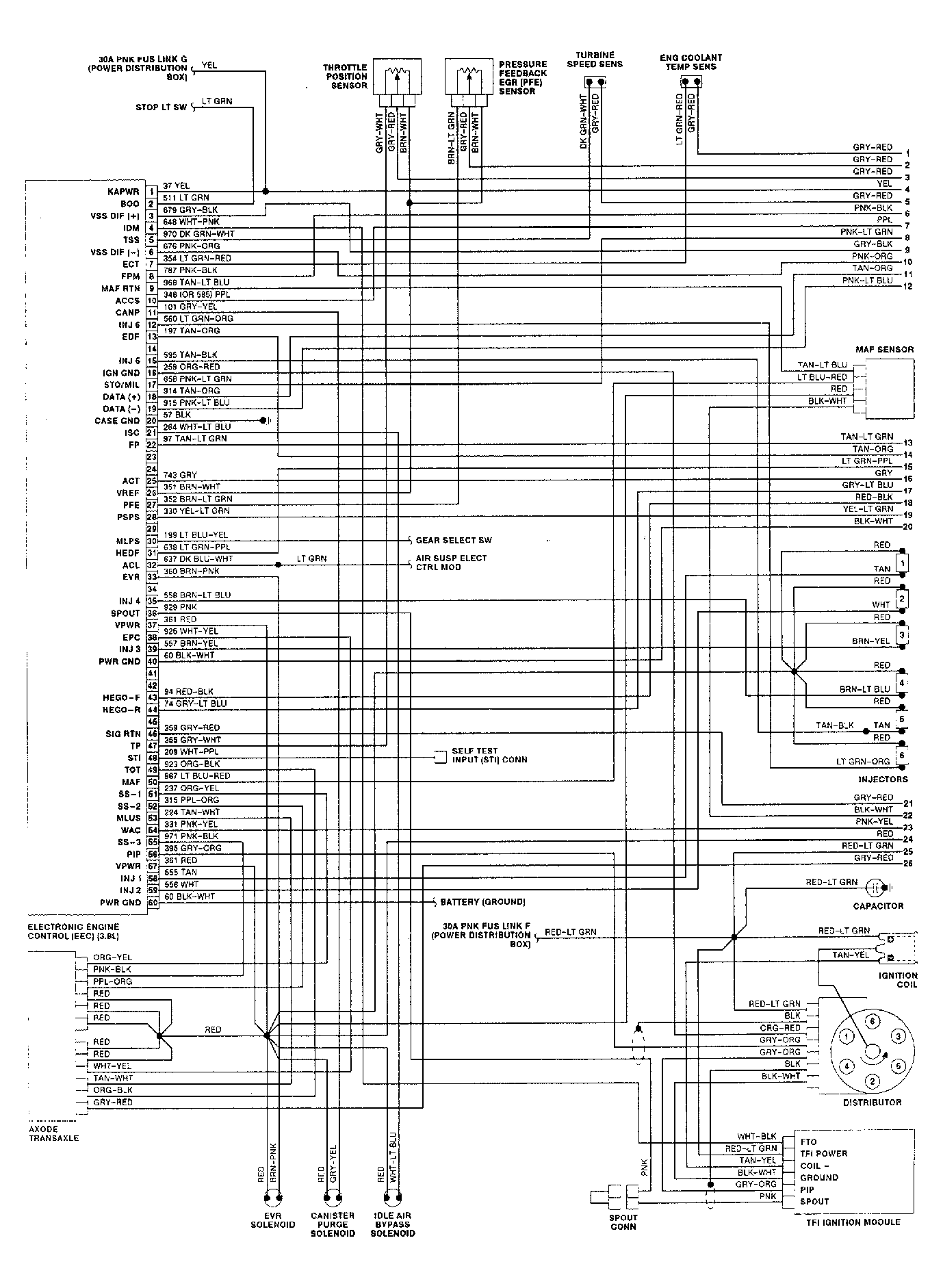

Fig 1: 3.8L Continental EEC-IV Wiring Diagram (1 of 2)
G91E08215

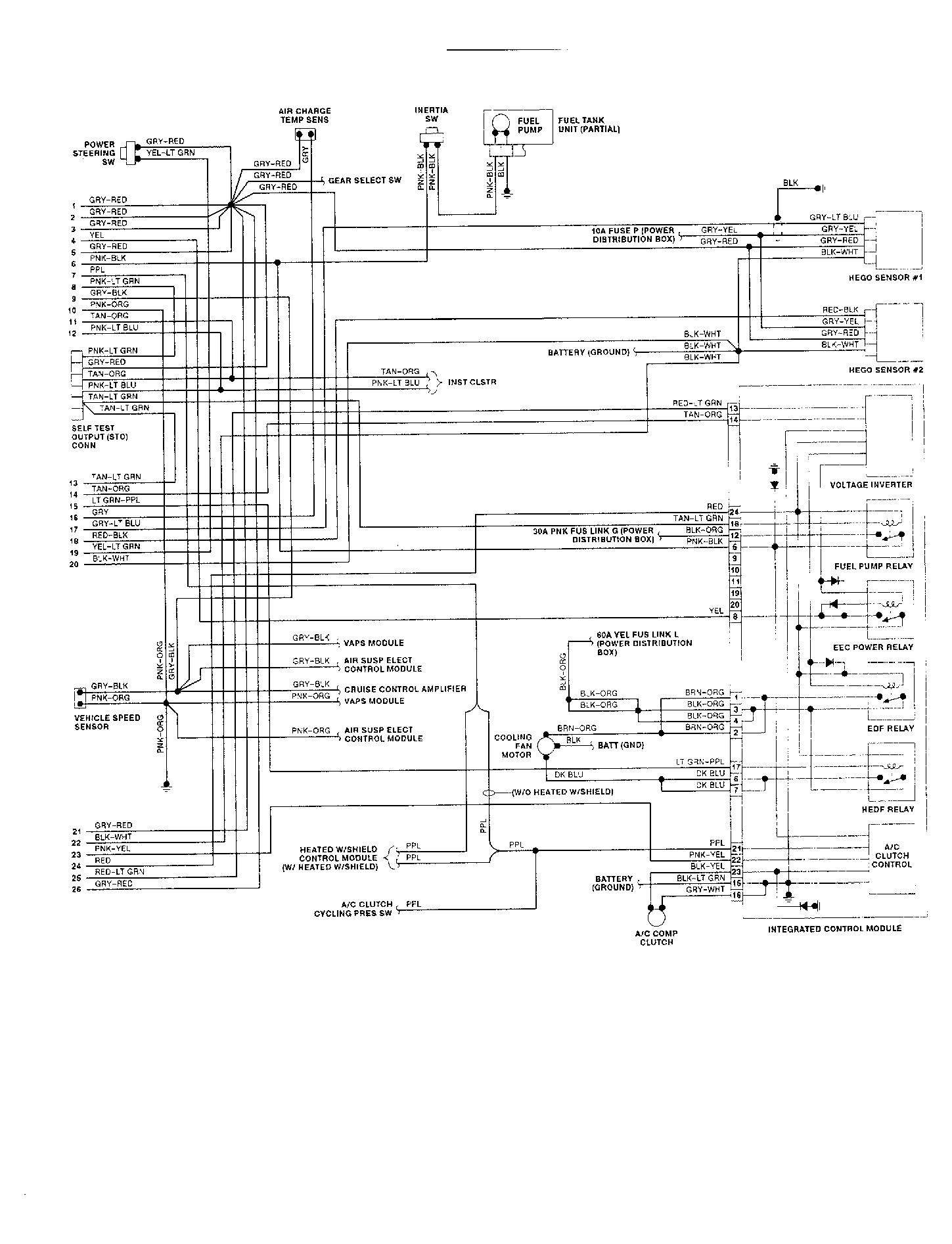

Fig 2: 3.8L Continental EEC-IV Wiring Diagram (2 of 2)
G91B11347

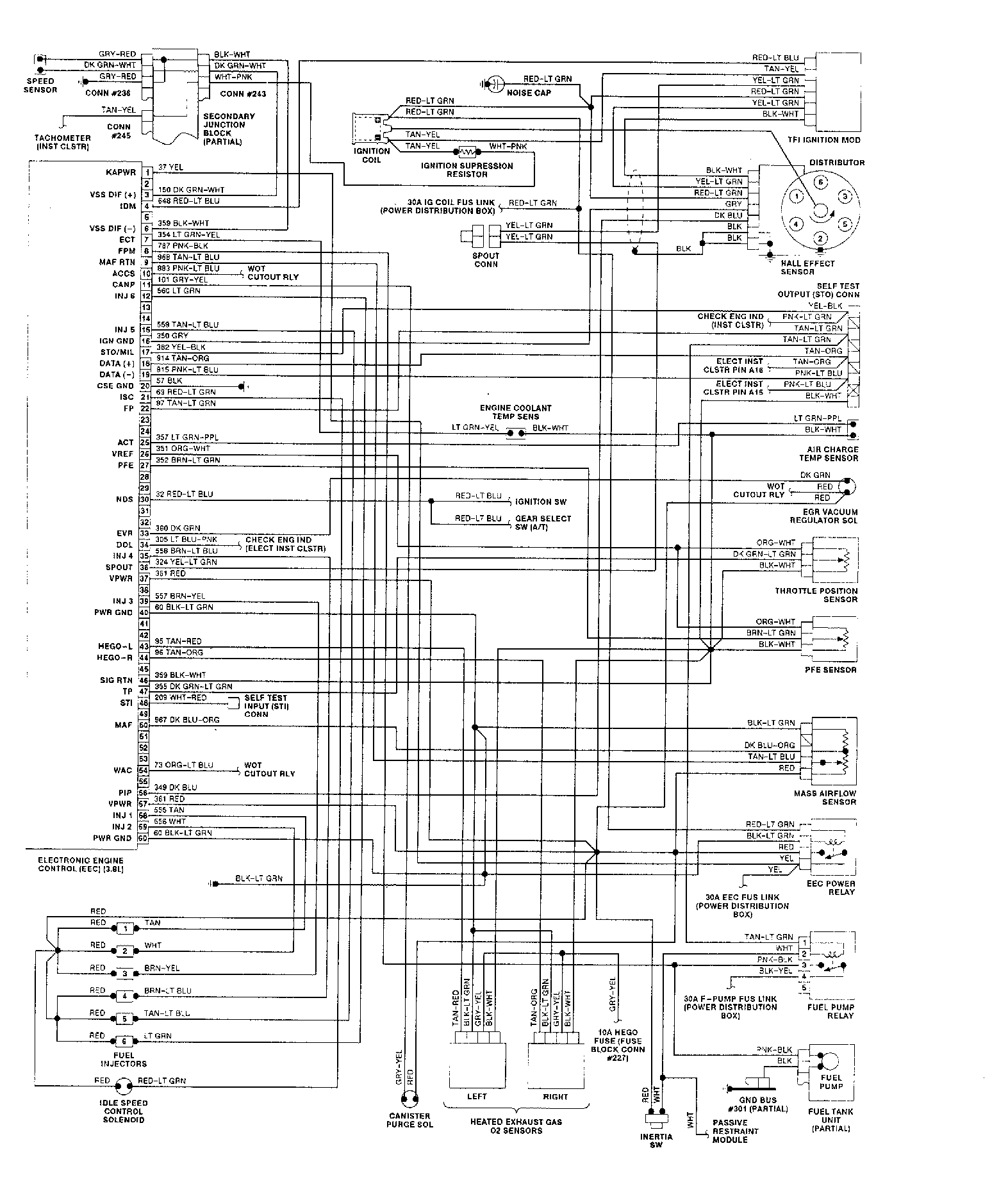

Fig 3: 3.8L Cougar & Thunderbird EEC-IV Wiring Diagram (Exc. SC)
G91C11348

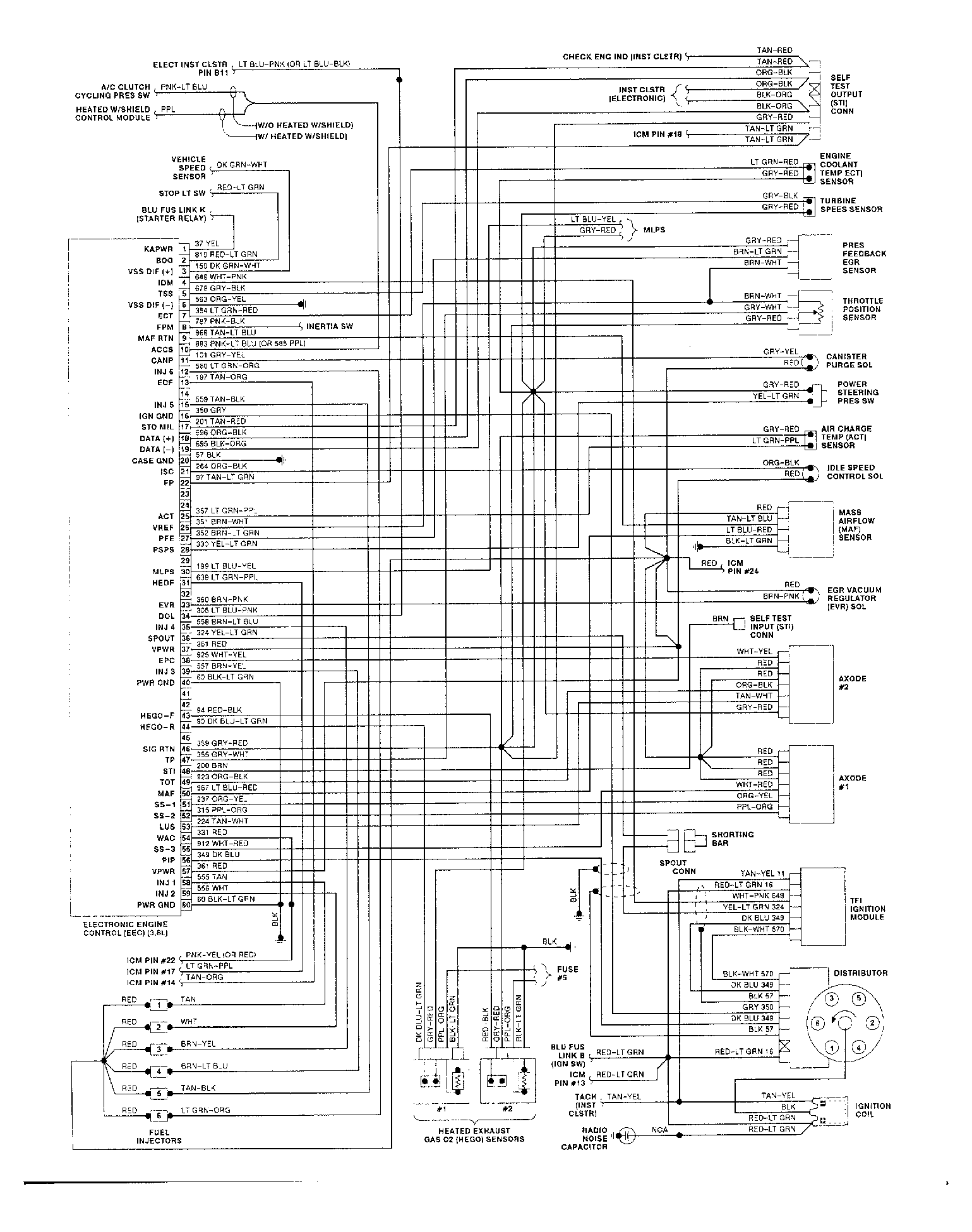

Fig 4: 3.8L Sable & Taurus EEC-IV Wiring Diagram (1 of 2)
G91I11351

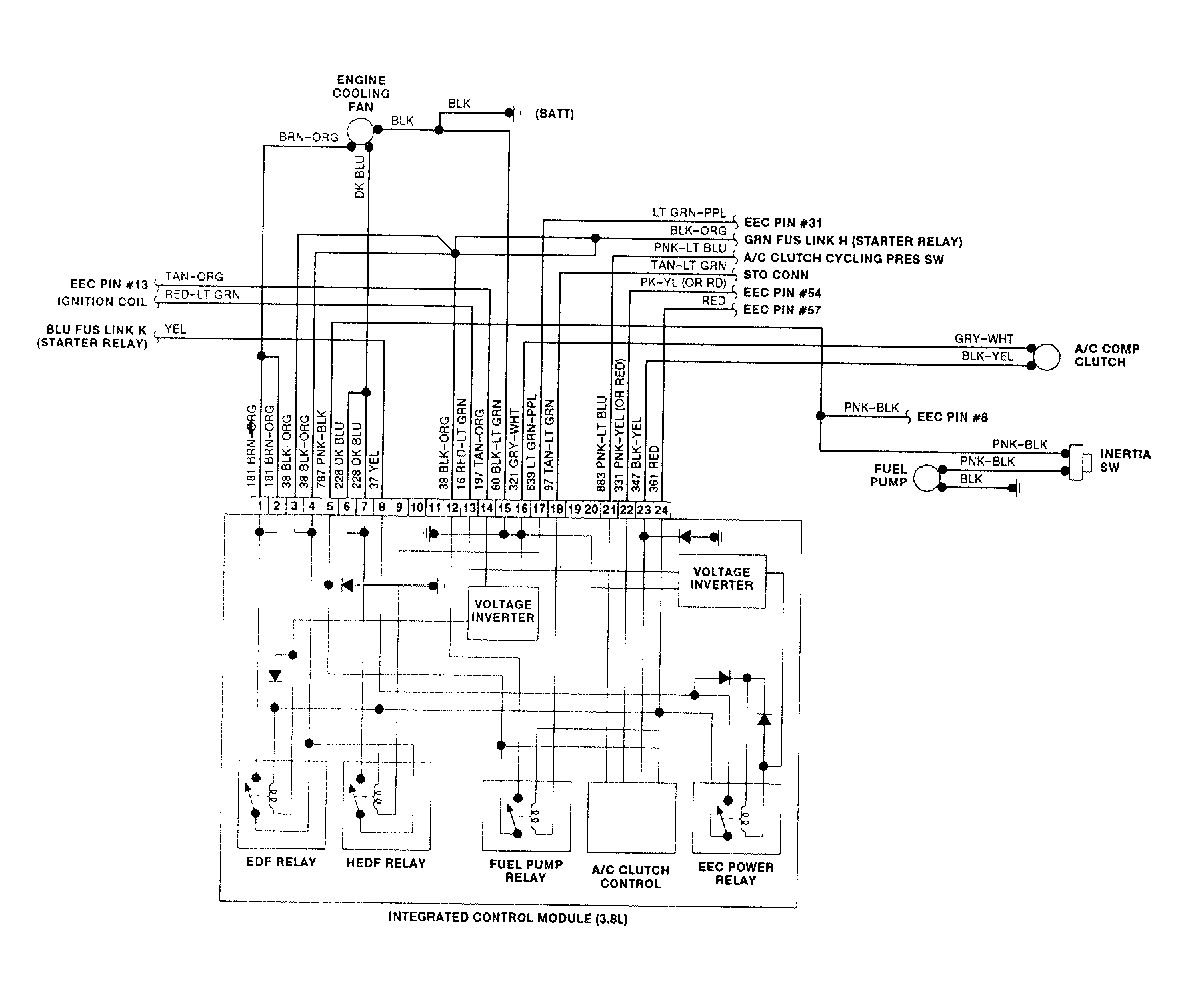

Fig 5: 3.8L Sable & Taurus EEC-IV Wiring Diagram (2 of 2)
G91J11352
