Control Module, A/T

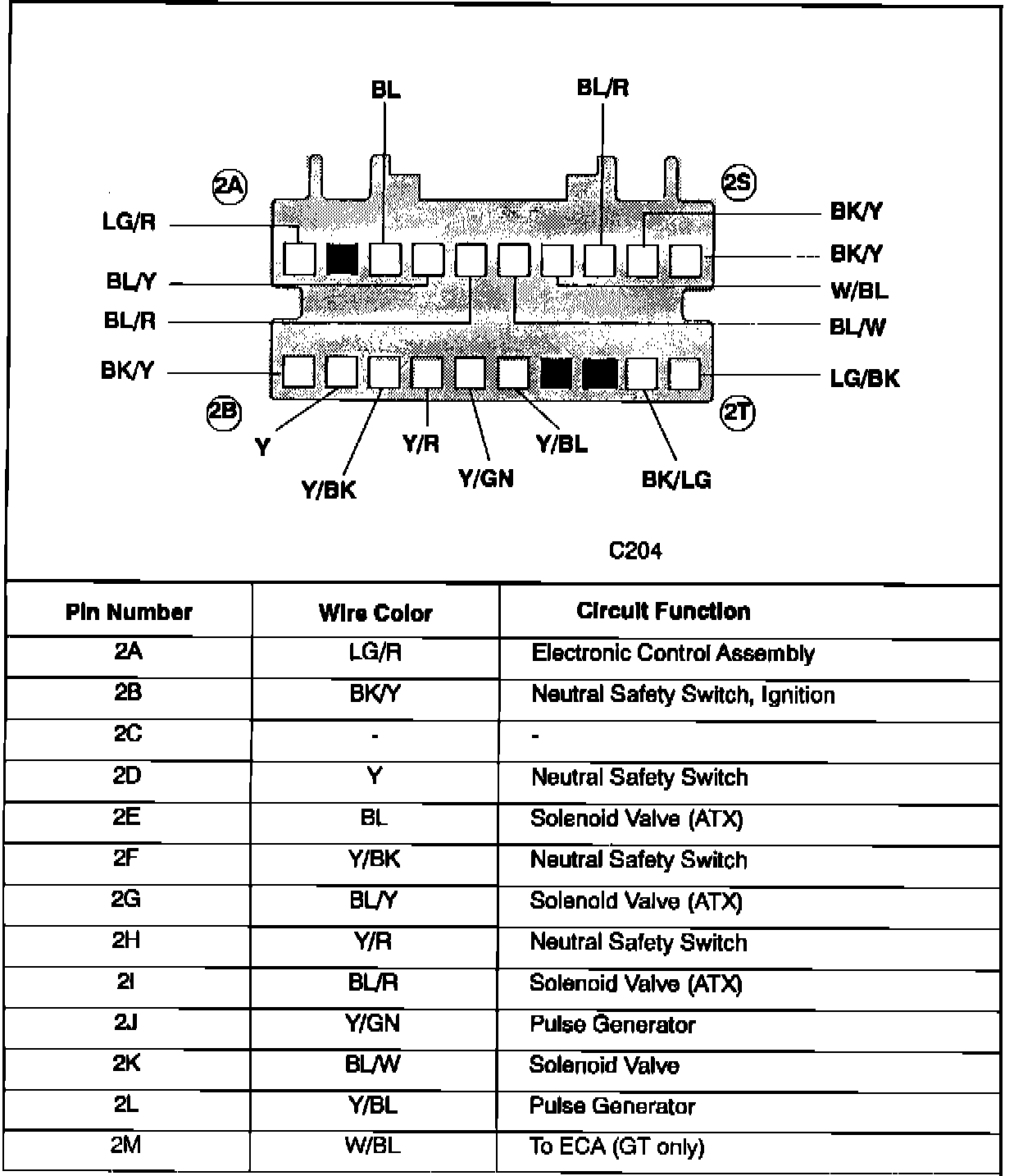

4EAT Control Module Connector:

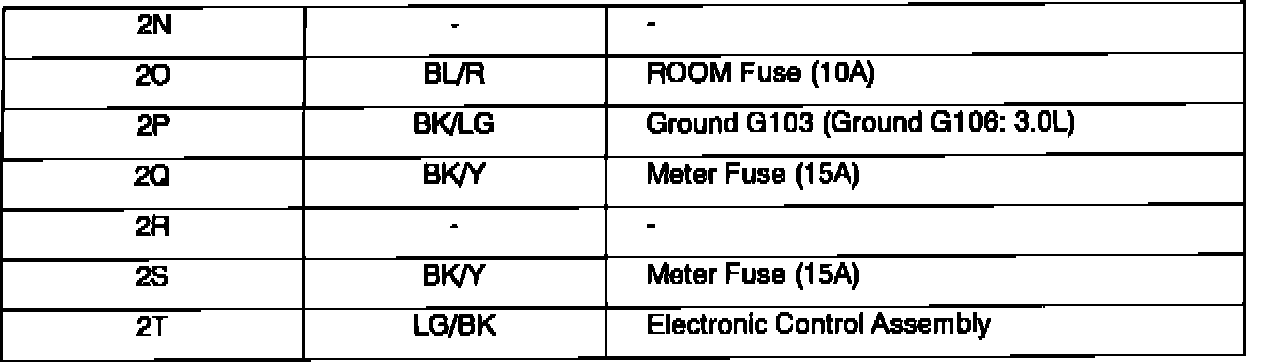

4EAT Control Module Connector:

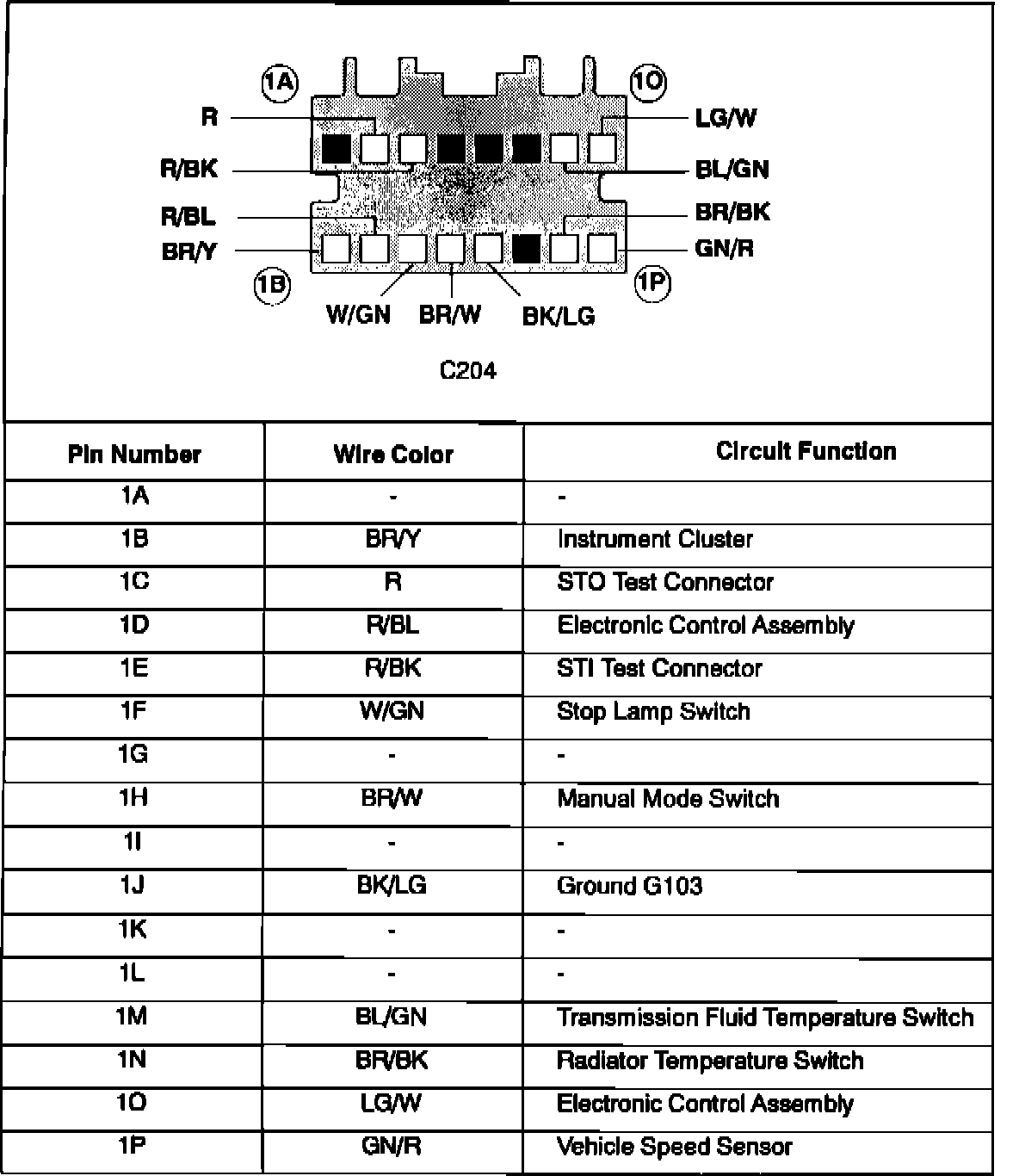

4EAT Control Module Connector:
