Radiator Cooling Fan Control Module

Integral Relay Control Module (IRCM)

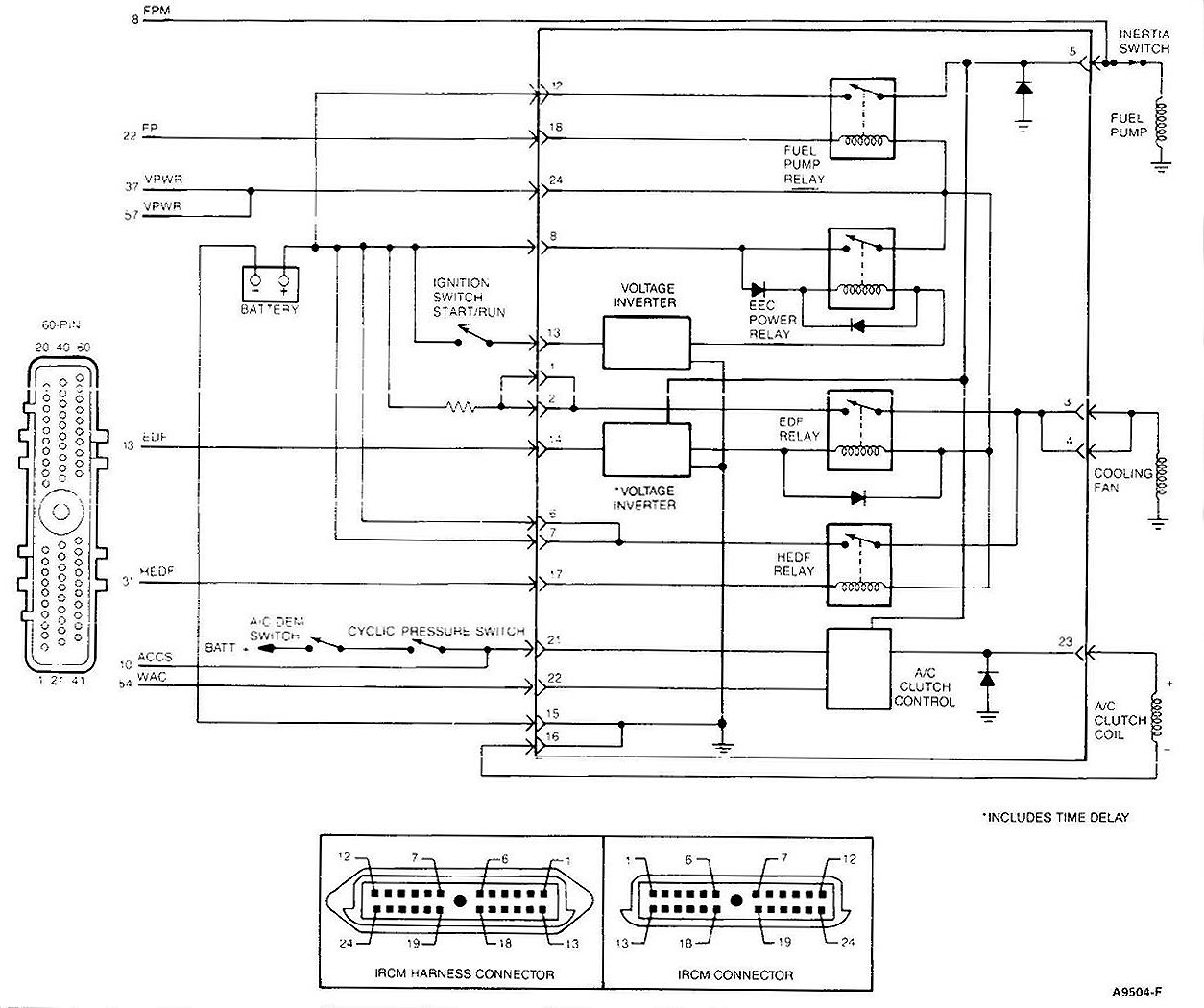

IRCM (2.5L):

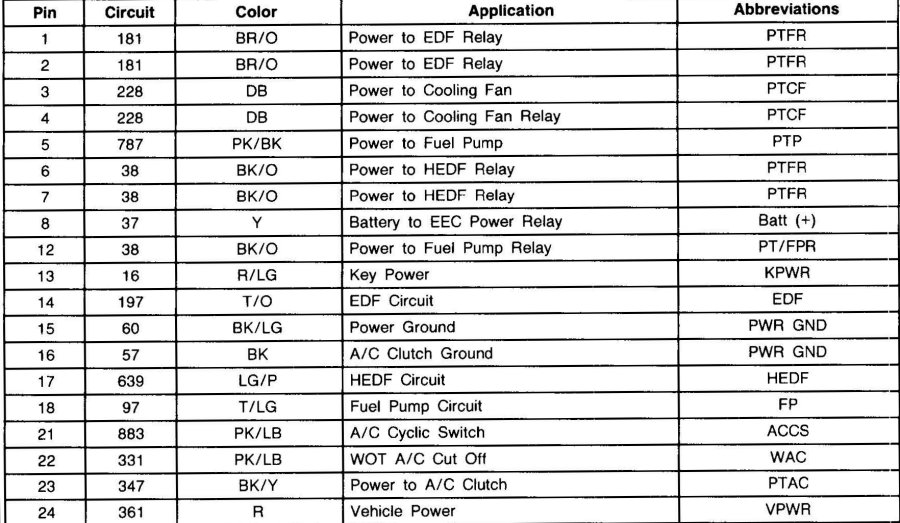

IRCM (2.5L) Pin Usage:

The Integral Relay Control Module (IRCM) interfaces with the EEC-IV processor to provide control of the cooling fan, A/C clutch, and the fuel pump.
