Pinpoint Tests

NOTE: Test procedures require Breakout Box (014-00322) and ABS Adapter (T90P-50-ALA). See Fig 1 -Fig 10 for circuit and terminal identification. See COMPONENT LOCATIONS for connector and component locations. Make all voltage measurements with digital voltmeter.

Fig 1: ABS Circuit ID (Continental)

G91G07919

Courtesy of FORD MOTOR CO.

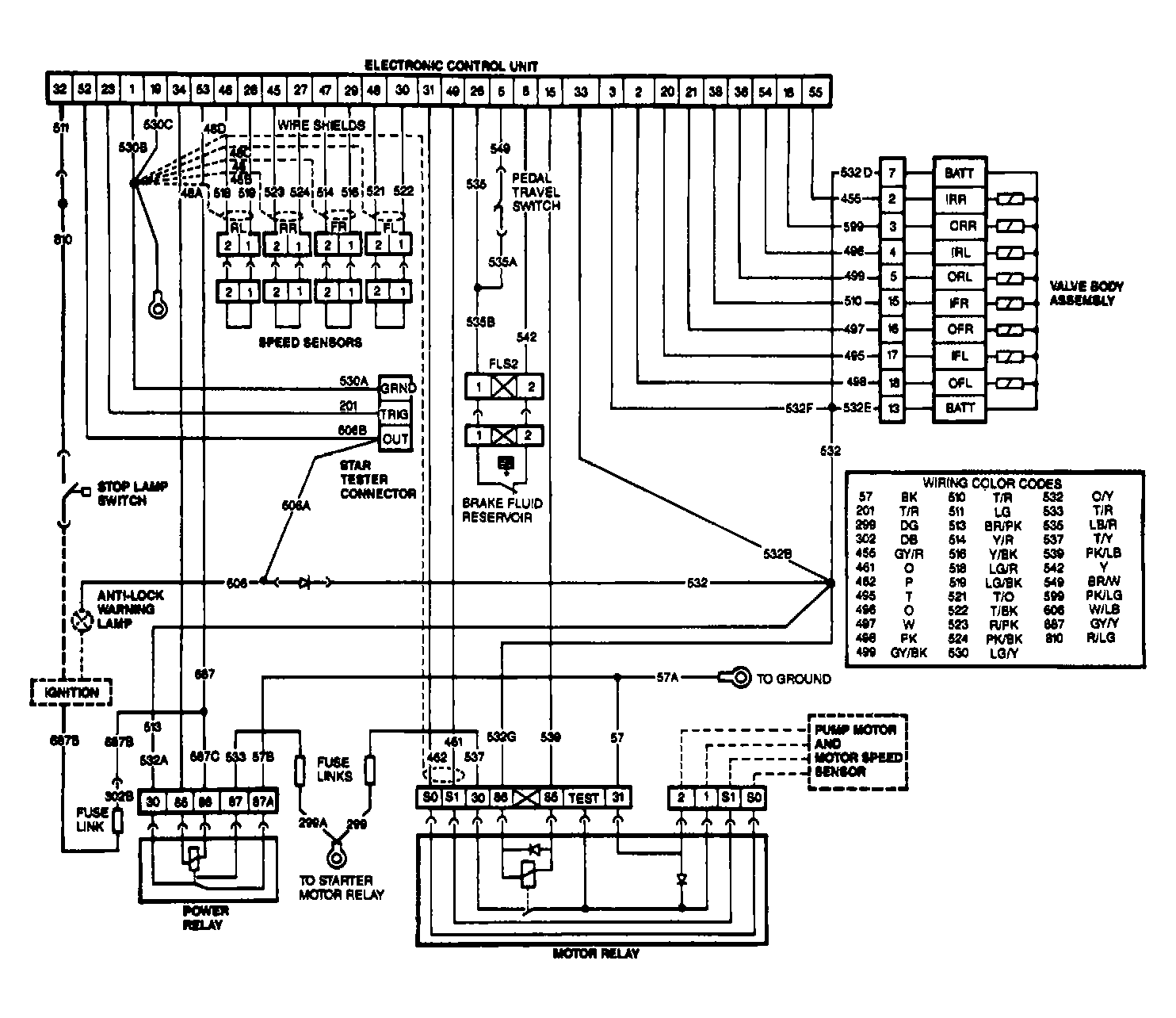

Fig 2: ABS Circuit ID (Sable & Taurus, Except Taurus SHO)

G90F09178

Courtesy of FORD MOTOR CO.

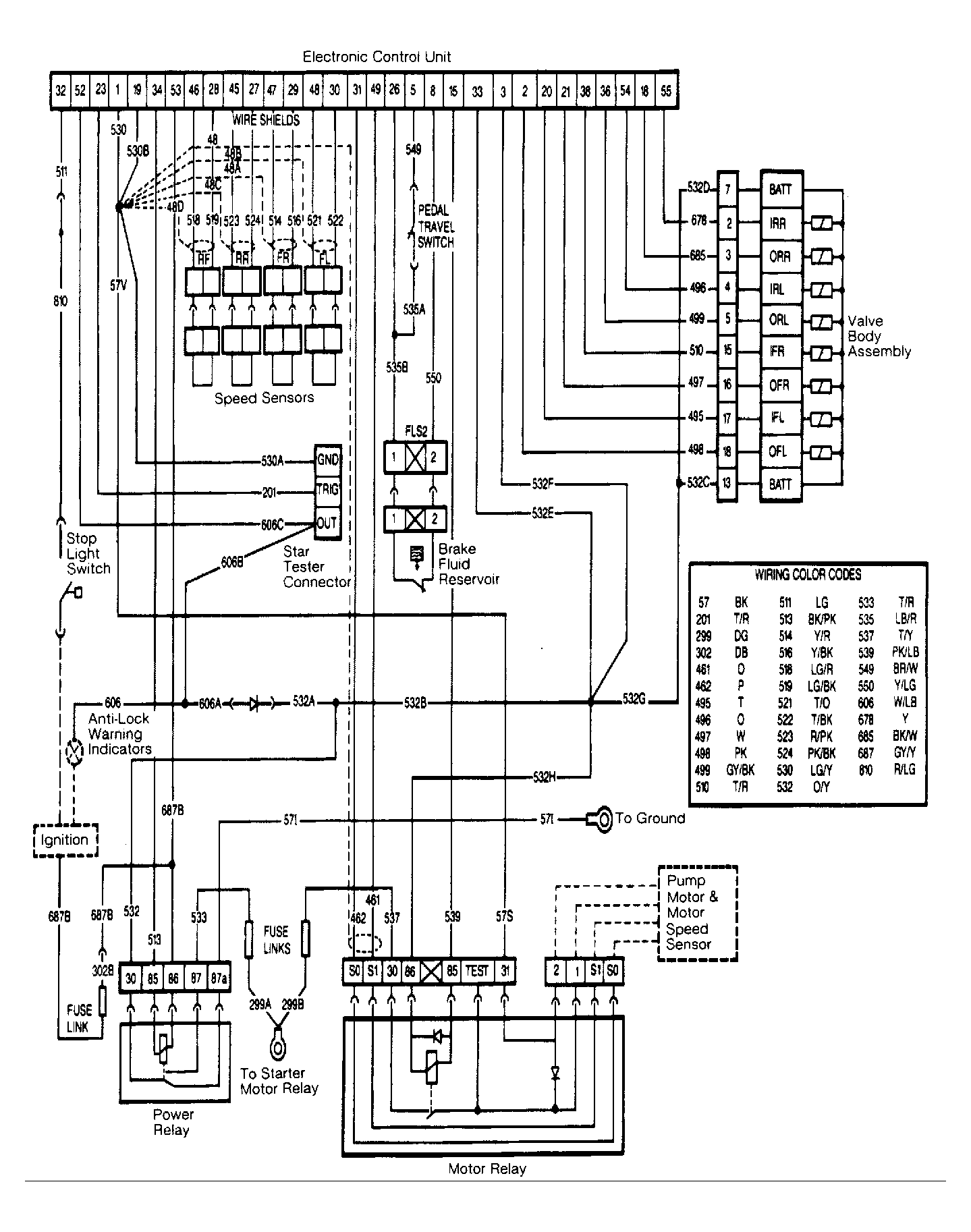

Fig 3: ABS Circuit ID (Taurus SHO)

G91I07920

Courtesy of FORD MOTOR CO.

Fig 4: Main Power Relay Terminal ID (Except 1990 Continental)

G91G07924

Courtesy of FORD MOTOR CO.

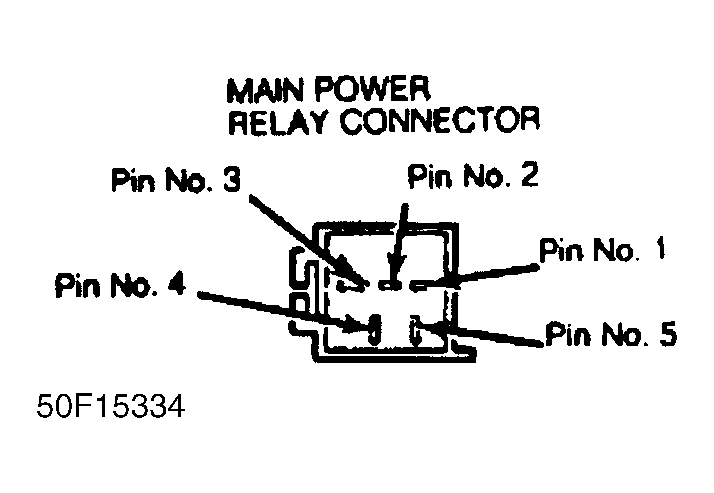

Fig 5: Main Power Relay Connector Terminal ID (1990 Continental)

G50F15334

Courtesy of FORD MOTOR CO.

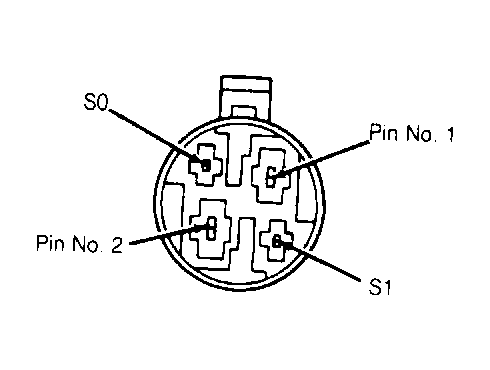

Fig 6: Pump Motor Relay 4-Pin Connector Pin ID

G90F09183

Courtesy of FORD MOTOR CO.

Fig 7: Pump Motor Relay Terminal ID

G90A09185

Courtesy of FORD MOTOR CO.

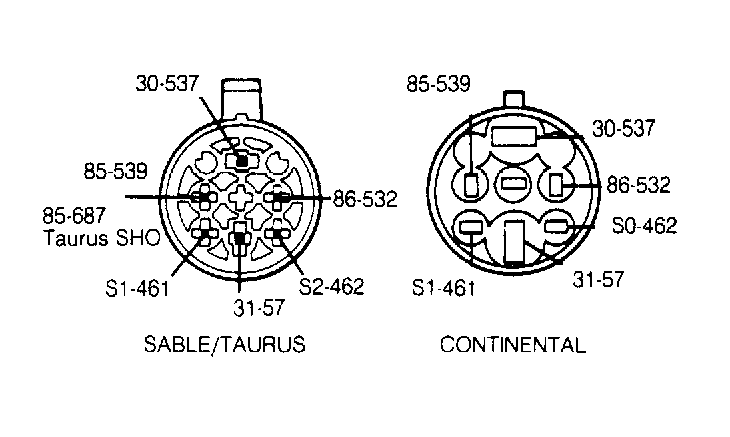

Fig 8: Pump Motor Relay 7-Pin Connector Pin ID

G91E07923

Courtesy of FORD MOTOR CO.

Fig 9: Fluid Reservoir Cap Terminal ID

G90E09187

Courtesy of FORD MOTOR CO.

Fig 10: Valve Body Connector Terminal ID

G91A07921

Courtesy of FORD MOTOR CO.
