Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component			Location
Accessory Circuit Breaker (Police)			Near starter relay.

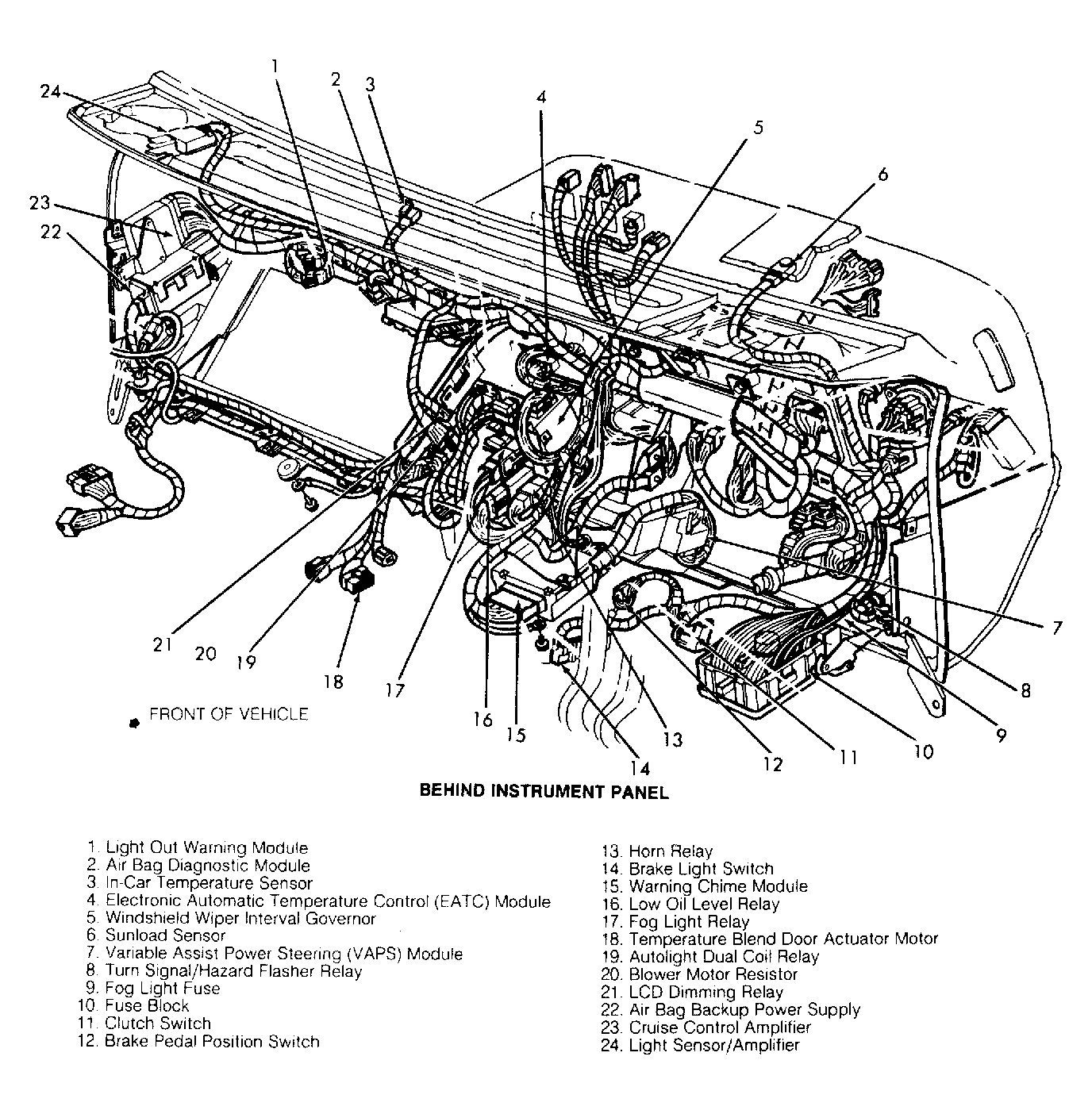

Fog Light Fuse			Near fuse block. See Figure .
Fuse Block			Behind left end of instrument panel. See Figure .
Fusible Links
"A" (Brown)

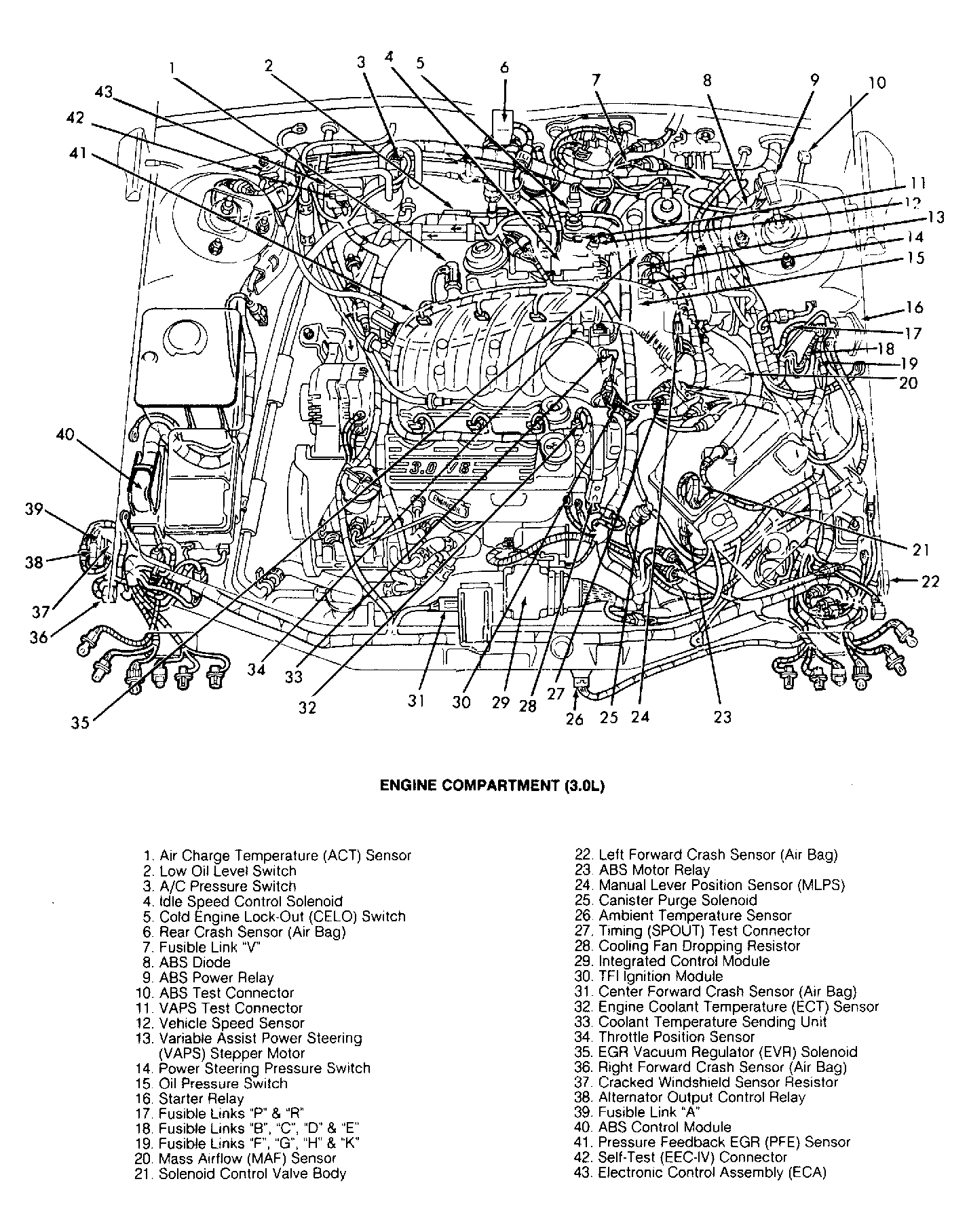

3.0L			At alternator output control relay. See Figure .

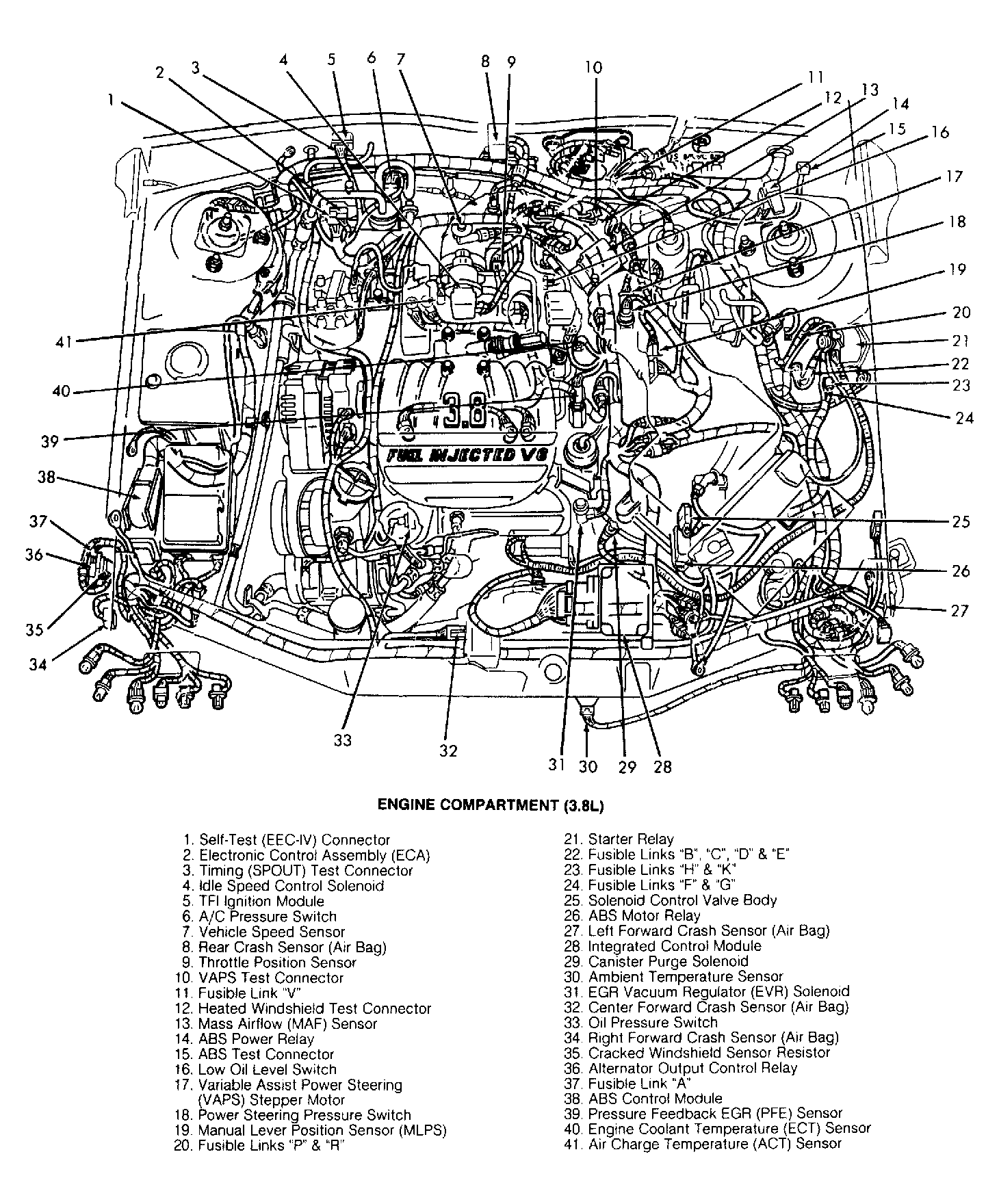

3.8L			At alternator output control relay. See Figure .
"B" (Blue)

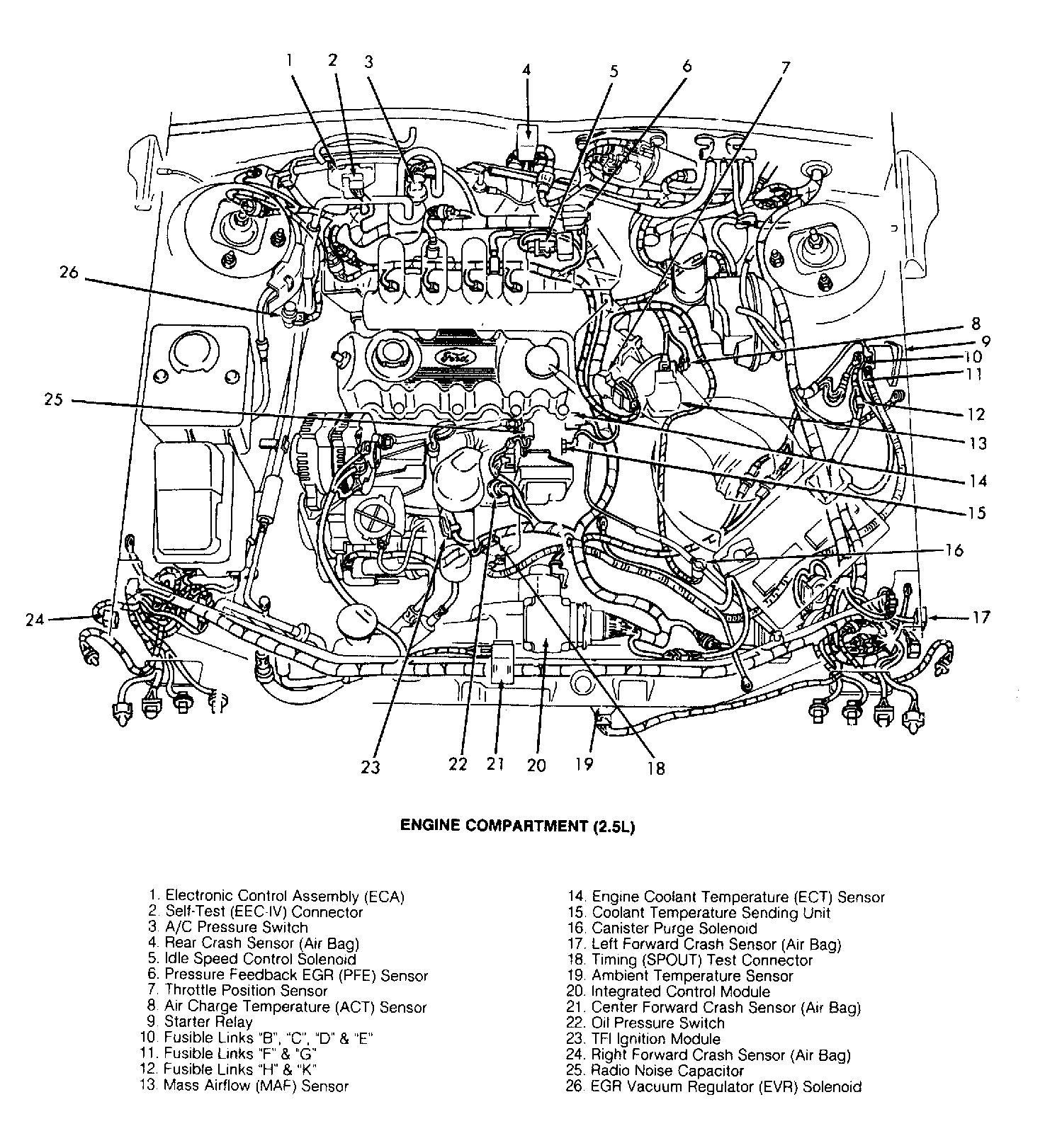

2.5L			At starter relay. See Figure .
3.0L			At starter relay. See Figure .

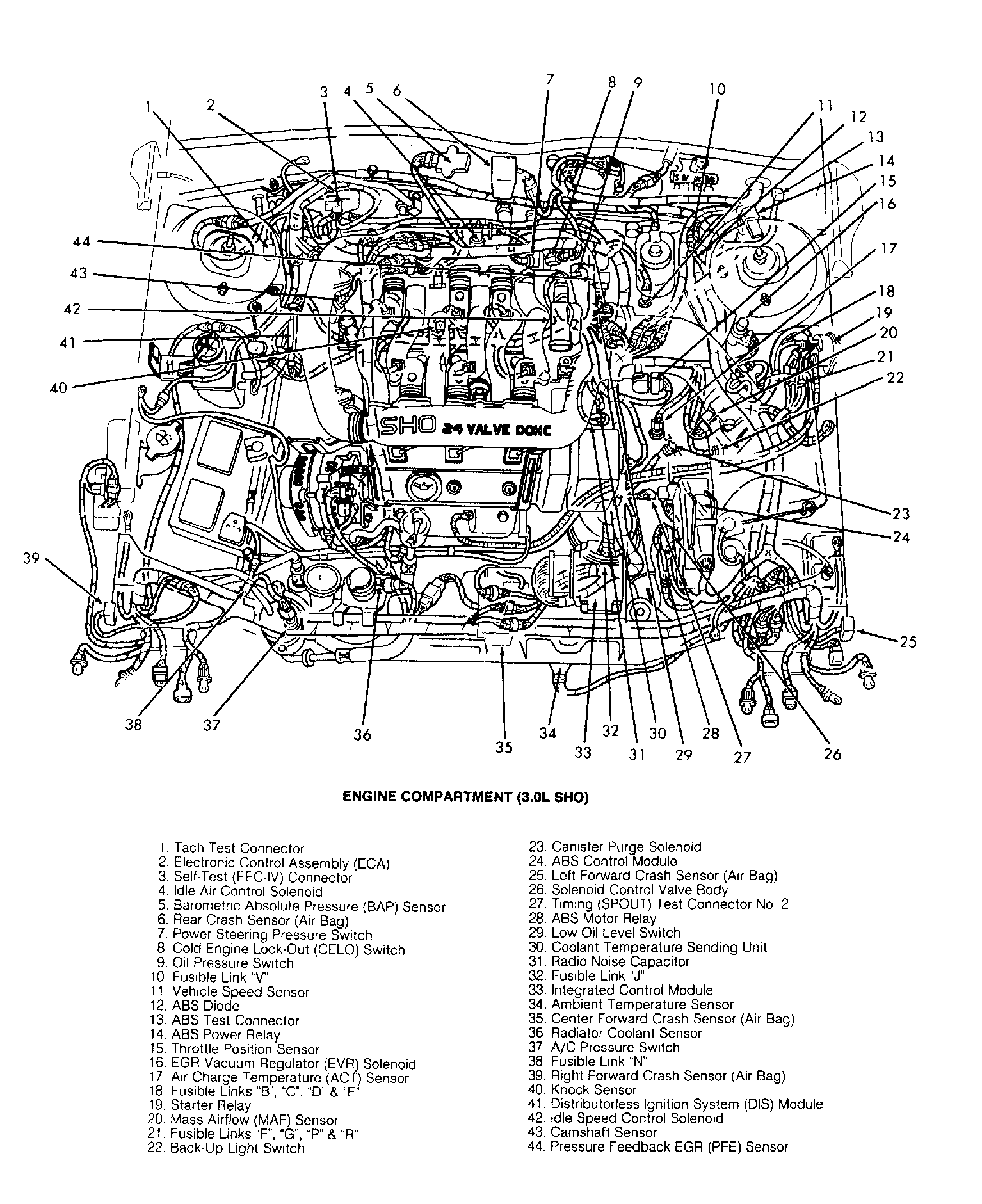

3.0L SHO			At starter relay. See Figure .
3.8L			At starter relay. See Figure .
"C" (Brown or Black)
2.5L			At starter relay. See Figure .
3.0L			At starter relay. See Figure .
3.0L SHO			At starter relay. See Figure .
3.8L			At starter relay. See Figure .
"D" (Brown or Black)
2.5L			At starter relay. See Figure .
3.0L			At starter relay. See Figure .
3.0L SHO			At starter relay. See Figure .
3.8L			At starter relay. See Figure .
"E" (Black)
2.5L			At starter relay. See Figure .
3.0L			At starter relay. See Figure .
3.0L SHO			At starter relay. See Figure .
3.8L			At starter relay. See Figure .
"F" (Blue)
2.5L			At starter relay. See Figure .
3.0L			At starter relay. See Figure .
3.0L SHO			At starter relay. See Figure .
3.8L			At starter relay. See Figure .
"G" (Green)
2.5L			At starter relay. See Figure .
3.0L			At starter relay. See Figure .
3.0L SHO			At starter relay. See Figure .
3.8L			At starter relay. See Figure .
"H" (Green)
2.5L			At starter relay. See Figure .
3.0L			At starter relay. See Figure .
3.8L			At starter relay. See Figure .
"J" (Brown)			At front of engine bay, near integrated control module. See Figure .
"K" (Blue)
2.5L			At starter relay. See Figure .
3.0L			At starter relay. See Figure .
3.8L			At starter relay. See Figure .
"N" (Blue)			Taped to wiring harness near battery. See Figure .
"P" (Green)
3.0L			At starter relay. See Figure .
3.0L SHO			At starter relay. See Figure .
3.8L			At starter relay. See Figure .
"R" (Green)
3.0L			At starter relay. See Figure .
3.0L SHO			At starter relay. See Figure .
3.8L			At starter relay. See Figure .
"T" (Gray)			At starter relay.
"V" (Blue)
3.0L			In left rear corner of engine bay. See Figure .
3.0L SHO			In left rear corner of engine bay. See Figure .
3.8L			In left rear corner of engine bay. See Figure .
