Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| ABS Control Module | ||
| Except 3.0L SHO | In right rear corner of engine bay. | |
| 3.0L SHO | In lower left front corner of engine bay. | |

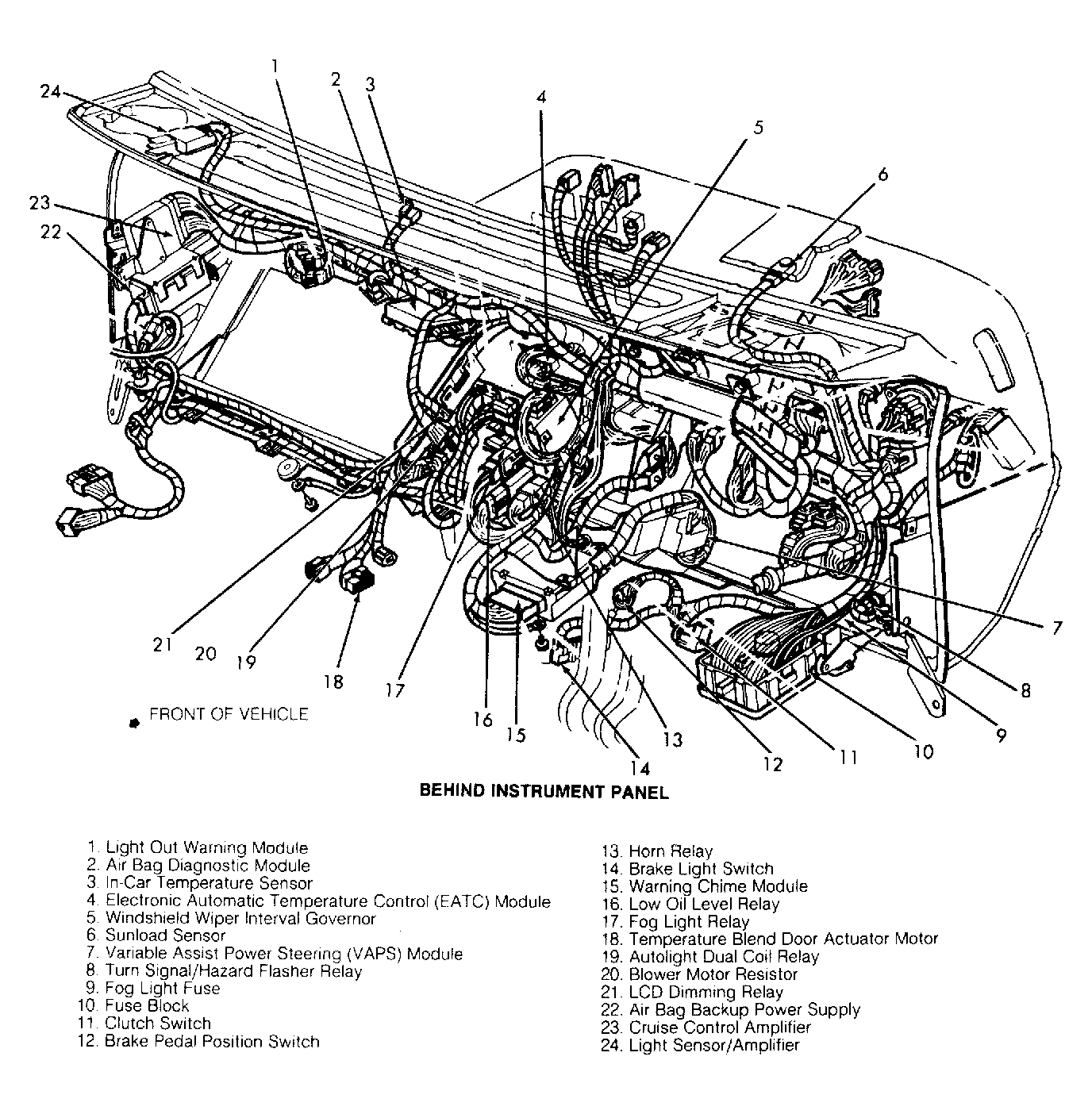

| Air Bag Diagnostic Module | Behind instrument panel, above glove box. See Figure . | |
| Blower Speed Controller | Behind instrument panel, near blower motor. | |
| Daytime Running Lights (DRL) Control Module | Left front corner of engine compartment. | |
| Distributorless Ignition System (DIS) Module | On front of intake manifold. | |
| Electronic Automatic Temperature Control (EATC) Module | Behind center of instrument panel. See Figure . | |
| Electronic Control Assembly (ECA) | ||

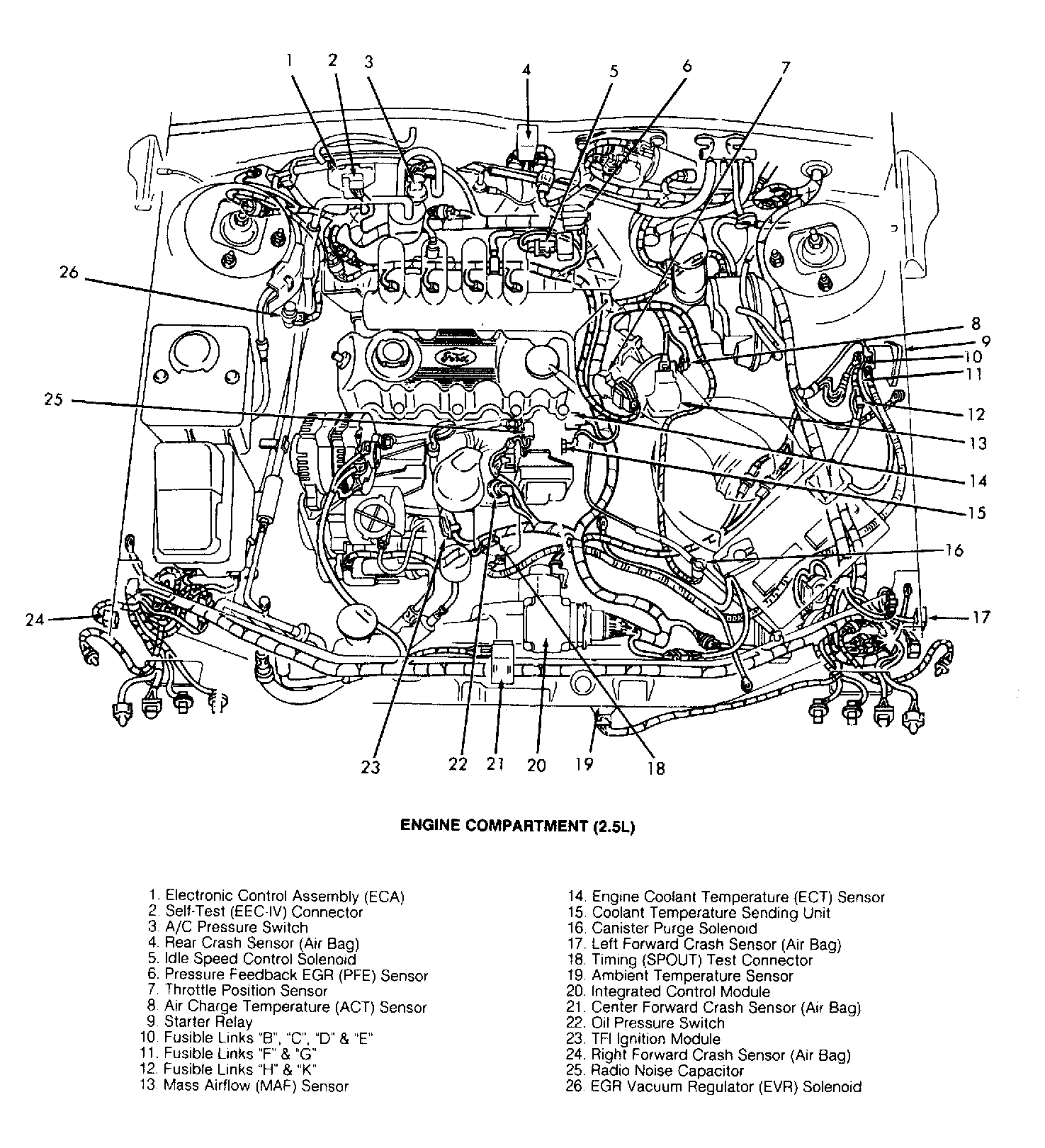

| 2.5L | In right rear corner of engine bay, on firewall. See Figure . | |

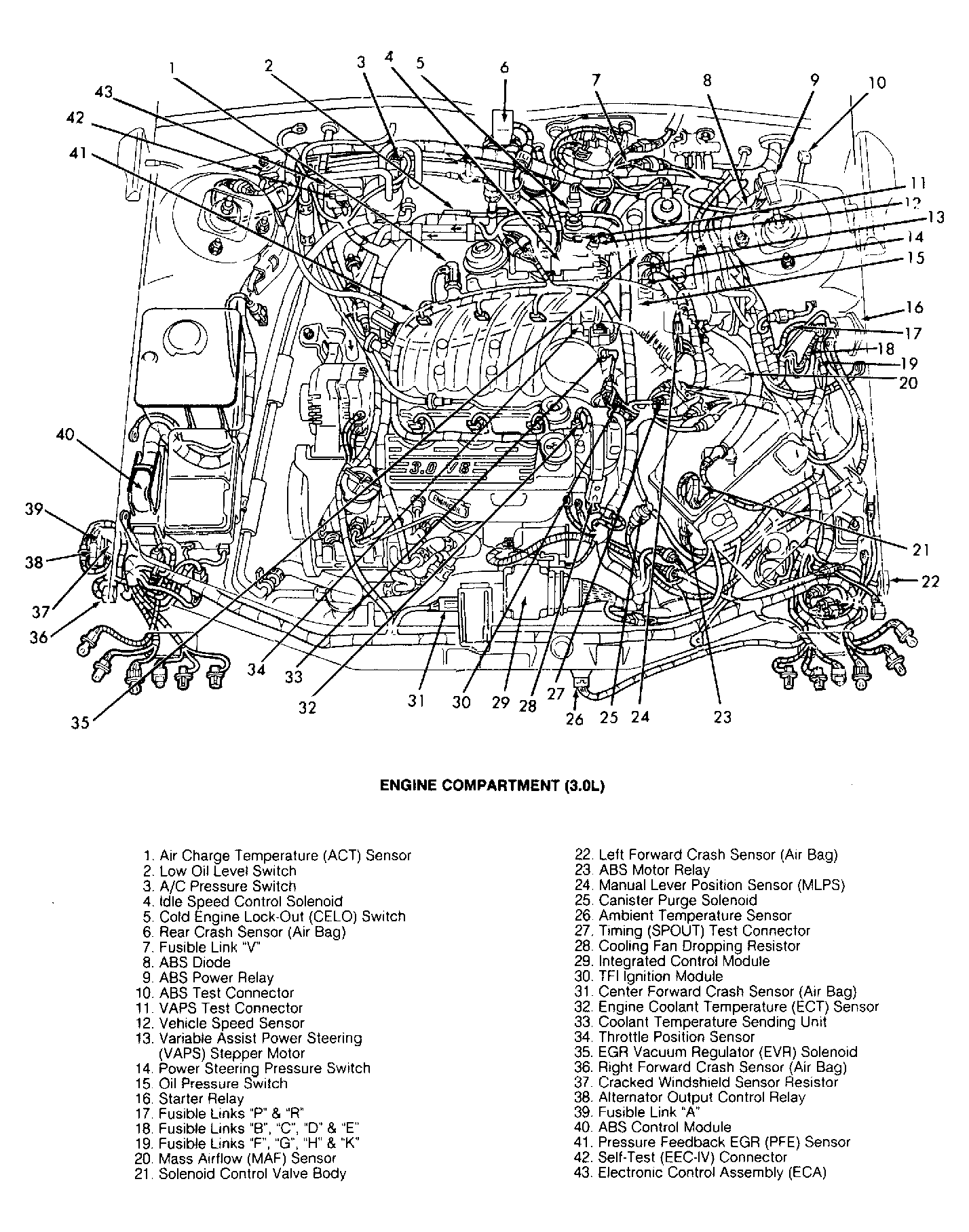

| 3.0L | In right rear corner of engine bay, on firewall. See Figure . | |

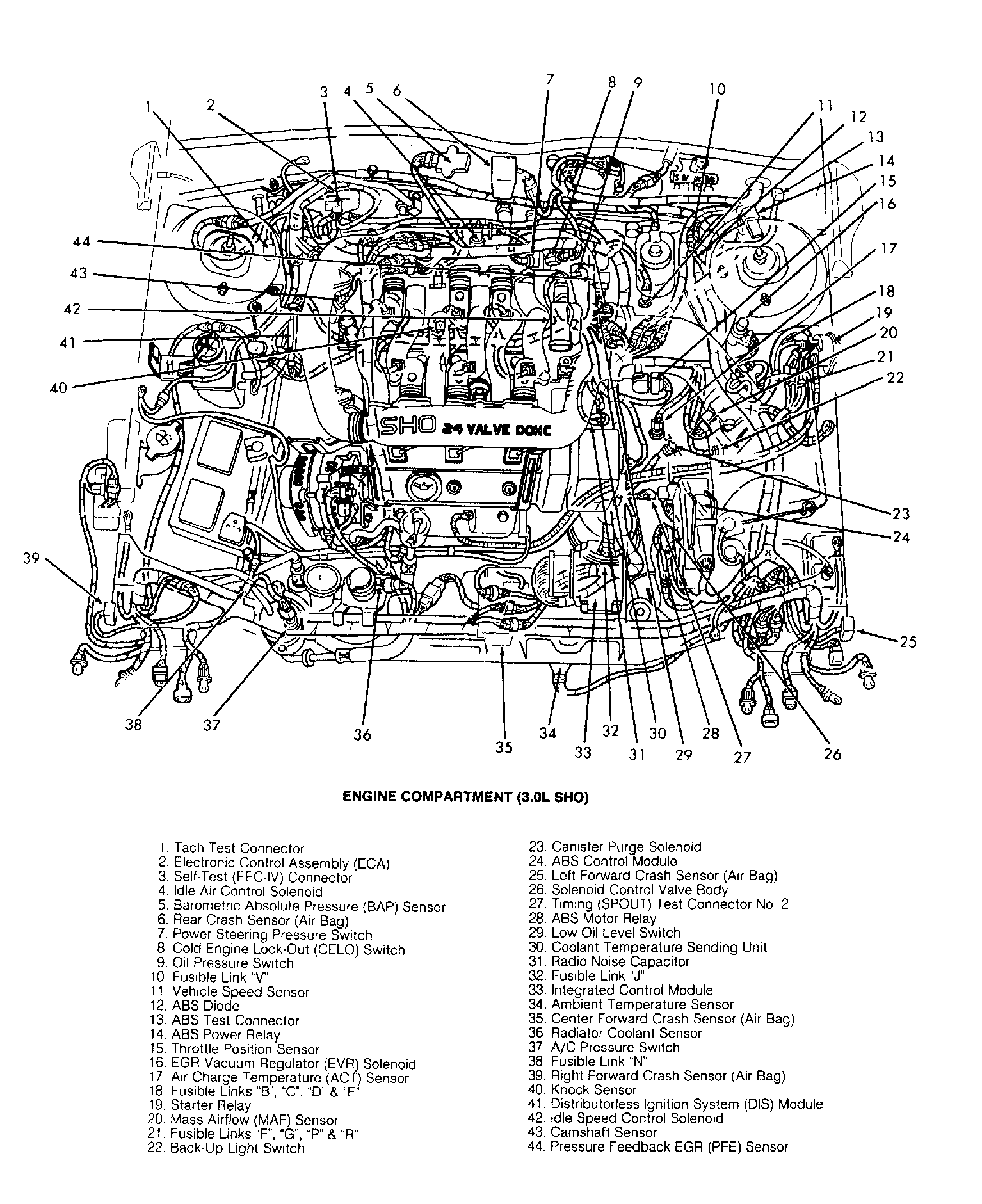

| 3.0L SHO | In right rear corner of engine bay, on firewall. See Figure . | |

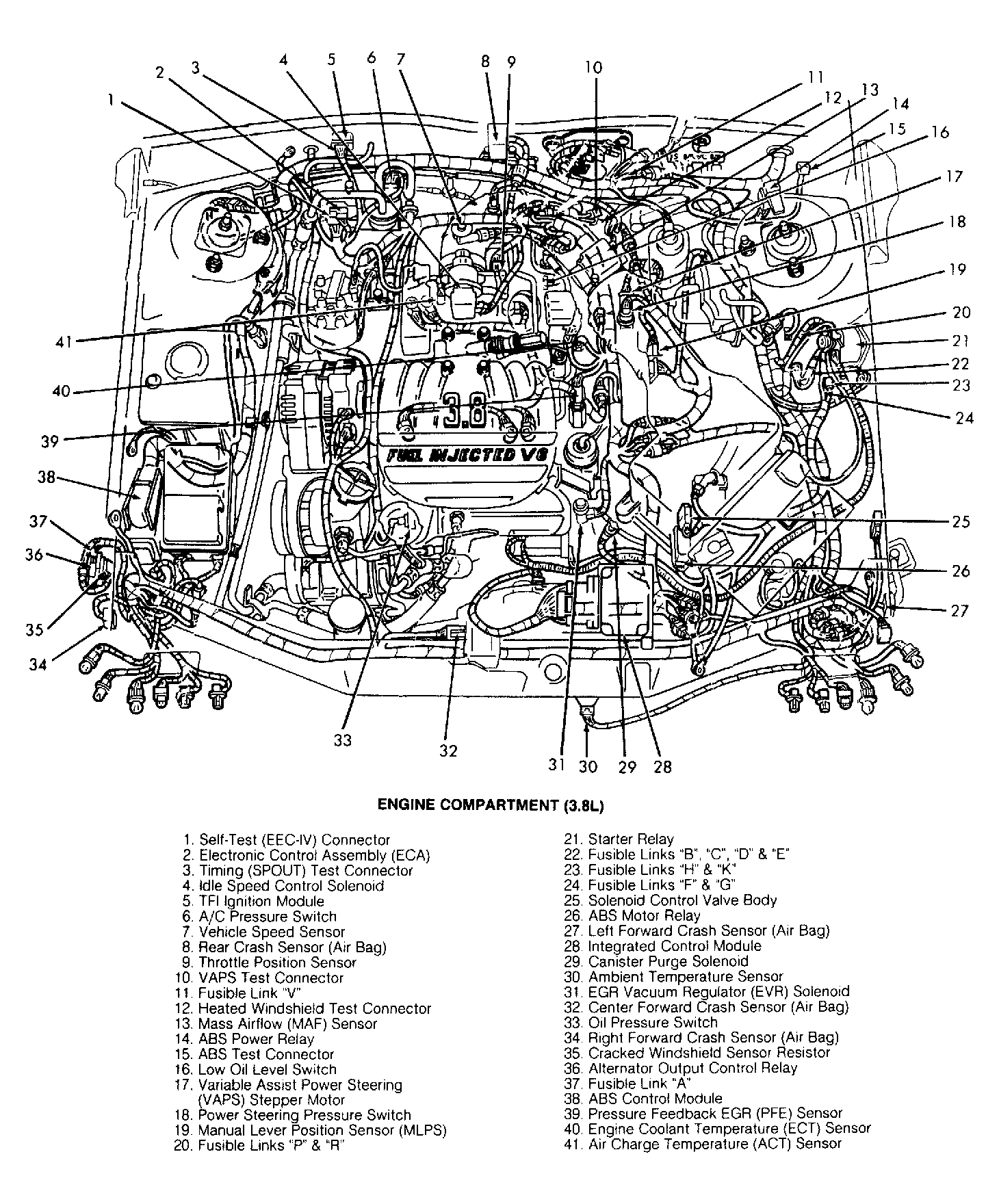

| 3.8L | In right rear corner of engine bay, on firewall. See Figure . | |
| Heated Windshield Control Module | Behind of instrument panel. right of steering column. | |
| Illuminated Entry Module | ||
| Sedan | In trunk, at center of rear seatback. | |
| Wagon | Behind center of left rear quarter panel. | |
| Integrated Control Module | ||
| 2.5L | On upper radiator support. See Figure . | |
| 3.0L | On upper radiator support. See Figure . | |
| 3.0L SHO | On upper radiator support. See Figure . | |
| 3.8L | On upper radiator support. See Figure . | |
| Keyless Entry Module | ||
| Sedan | In trunk, on right side of rear seatback. | |
| Wagon | Behind left rear quarter panel, rear of wheelwell. | |
| Light Out Warning Module | Behind instrument panel, above glove box. See Figure . | |
| Switch Module | Behind instrument panel, on instrument cluster. | |
| Variable Assist Power Steering (VAPS) Module | Behind of instrument panel, to right of steering column. See Figure . | |
| Warning Chime Module | Behind bottom center of instrument panel. See Figure . | |
| Windshield Wiper Interval Governor | Behind center of instrument panel, on instrument panel brace. See Figure . | |
