Toe-In Adjustment (Rear)

Loosen rear control arm-to-body retaining bolt. Rotate adjusting cam to obtain correct toe-in. While holding adjusting cam, tighten rear adjusting cam attaching nut. See Fig 1 or Fig 2 .

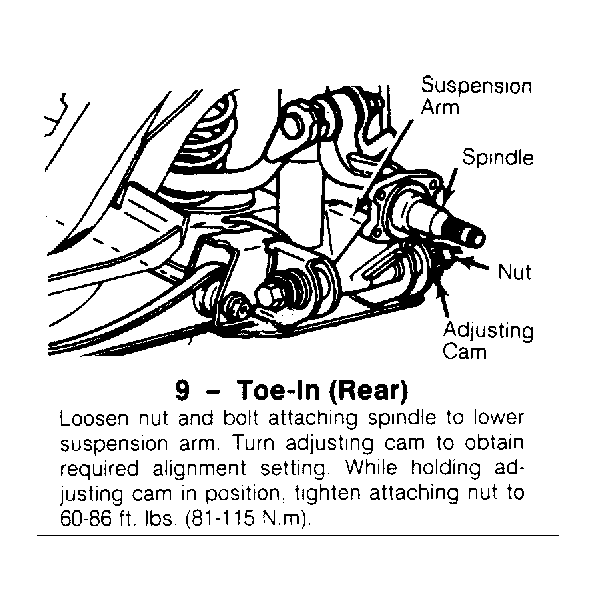

Fig 1: Adjusting Rear Toe (Sedan)

Courtesy of FORD MOTOR CO.

Fig 2: Adjusting Rear Toe (Wagon)

Courtesy of FORD MOTOR CO.
